www.timberk.com • electrical storage water heater

10

29

NOTE:

When setting temperature, having reached the

optimal heating position «       »  (+58°С (+/- 2°С), you

will hear a sound signal (for some models).

1.2 Plug the power cord into the outlet.

2. Water heating temperature setting

2.1. Temperature can be set within the range 35°С-75°С, in increments of

1°С. You should use thermostat handle to choose temperature of water

heating.

2.2 The water heater automatically maintains water temperature. When

water temperature in the water heater reaches the temperature, set by the

user, the heating is automatically switched off.  When water temperature

in the water heater drops to a certain level, the heating is automatically

switched off.

3. Temperature display (only for FSQ series)

All FSQ series models are equipped with temperature display shows

current water temperature in whater haeter tants.

IMPORTANT!

Water may start dripping from the relief valve hole

during heating. It is impossible to avoid water leakage

and you must not prevent it since valve blocking

may cause rupture of the internal tank (in case of

equipment failure).

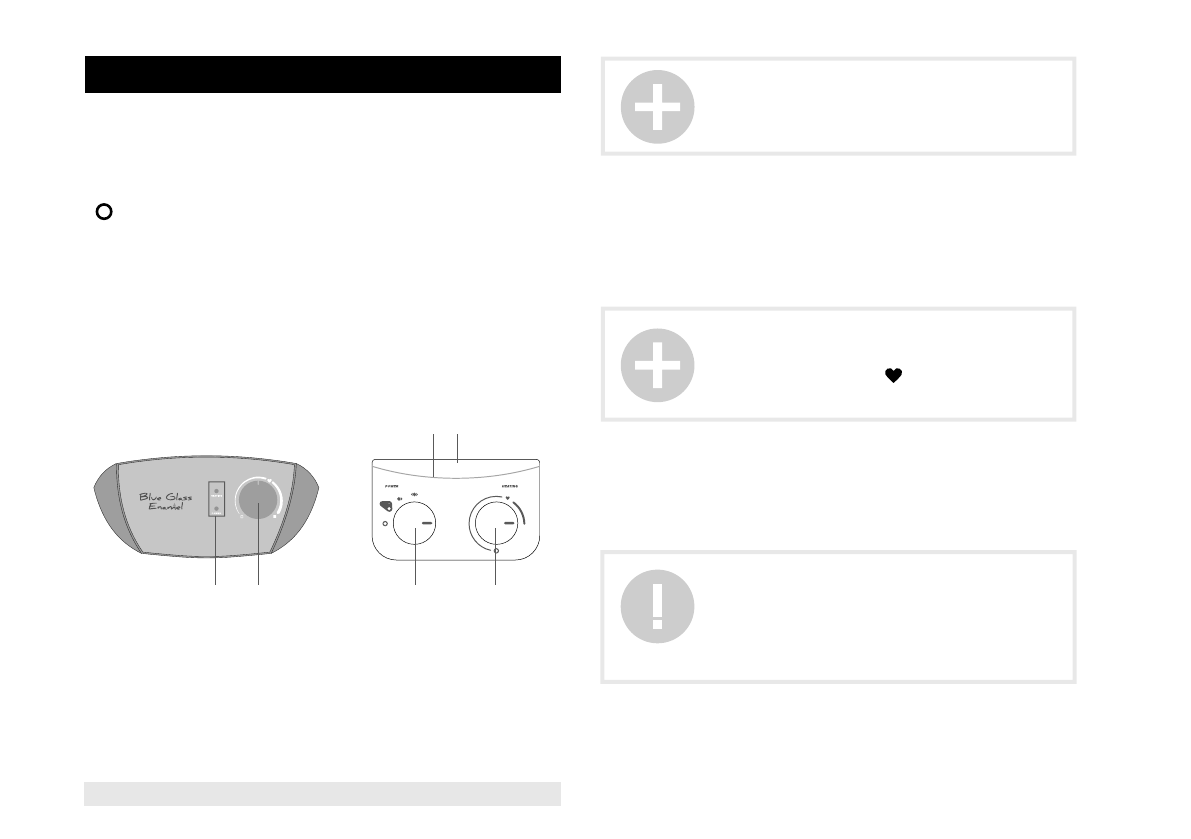

Control panel. Timberk FSQ1 and FED1 series

1. Thermostat handle

Please, use this handle to set the desired temperature of water.  Turning the

knob in a clockwise direction you increase temperature of water.

2. Switcher of power modes

«      » - means OFF position. Turning the knob in a clockwise direction

you increase power from 800W up to 2000W. Only water heaters of FSQ1

series has such option.

3. Indicators lighting (for FSQ1 series only)

If light are blue it means the water heater works, but a water is not heating

inside. If lights are pink/red it means the heating element heats a water

inside tank.

4. LED thermometer

to check temperature inside inner tanks

5. Indicator lamps

in order to see heating mode and power ON mode

Control panel of FSQ1 series

Control panel of FED1 series

8. WATER HEATER CONTROL

Fig. 8

1

2

4

3

Water heater operation

1. Switching on (FED1 and FSQ1)

1.1 At first, open one of the hot water outlet valves, then open the cold

water supply valve. The electric water heater will start filling with water.

When water flows from the hot tap freely, it means the water heater is fully

filled with water and you can close the hot water outlet valve.

NOTE:

During normal operation the cold water supply valve

must be set “open”.

1

5
