IMPORTANT!

Please, use accessories, provided by the manu-

facturer, to install the water heater. Electric water

heater must not be mounted on a wall prior you make

sure that the bracket is installed firmly and securely.

Otherwise the electric water heater may fall down

from the wall, which may cause its damage and even

serious accidents involving bodily injury.

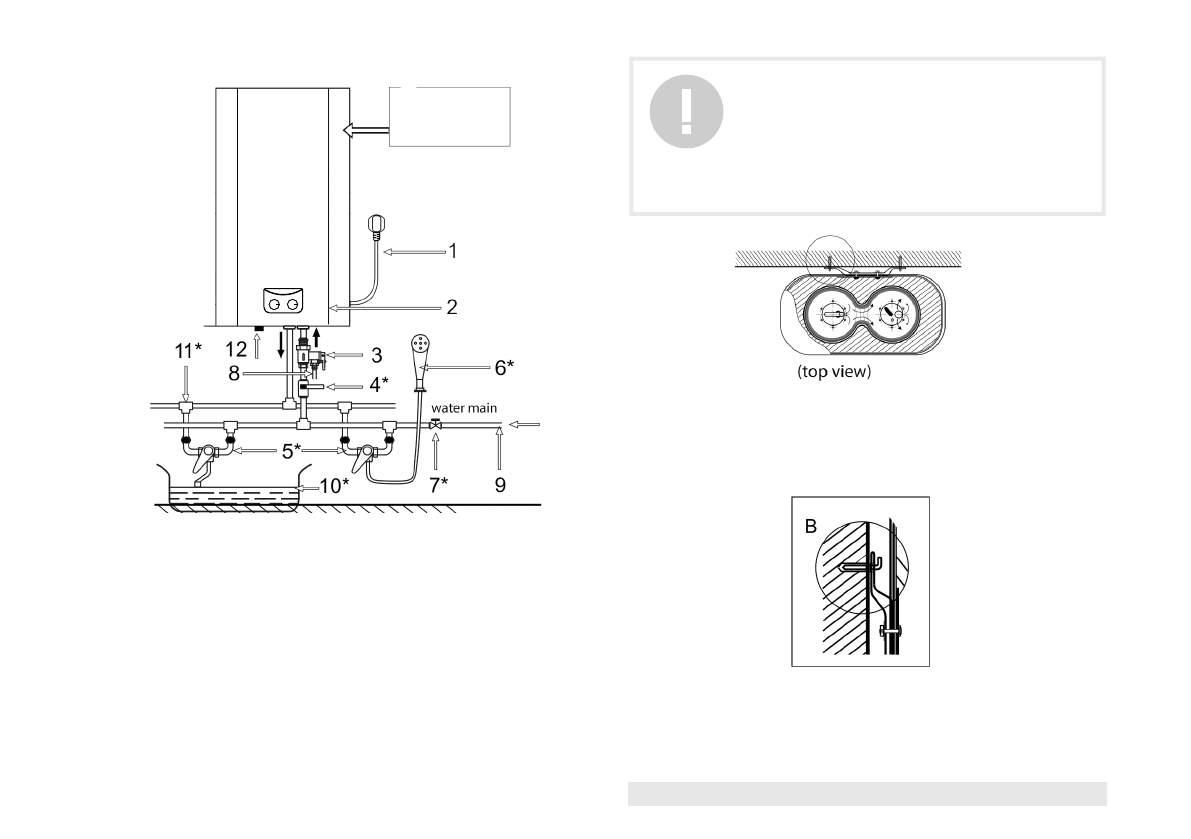

Fig.4 shows the way to mount the water heater for one consumption point.

1. Power cord
2. Mounted water heater
3. Composite pressure-relief valve
4. Cold water supply valve*
5. Mixer*
6. Shower header*

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the overall

water heater weight, fully filled with water, then it should be mounted on a

special support.

7. Water main shut-off valve
8. Discharge pipe
9. Water main
10. Bath*
11. T-joint*
12. Magnesium anode – water discharge

nozzle

Fig. 4

Fig. 5

Vertical position

* not included in the delivery set

2. After you chose the proper place to install the water heater, determine

points for holes for expansion hook bolts (to be determined in accordance

with the data sheet for the appliance you chose). Drill two holes of the

corresponding depth in the wall using a drill, dimensionally fit for expansion

Fig. 6
