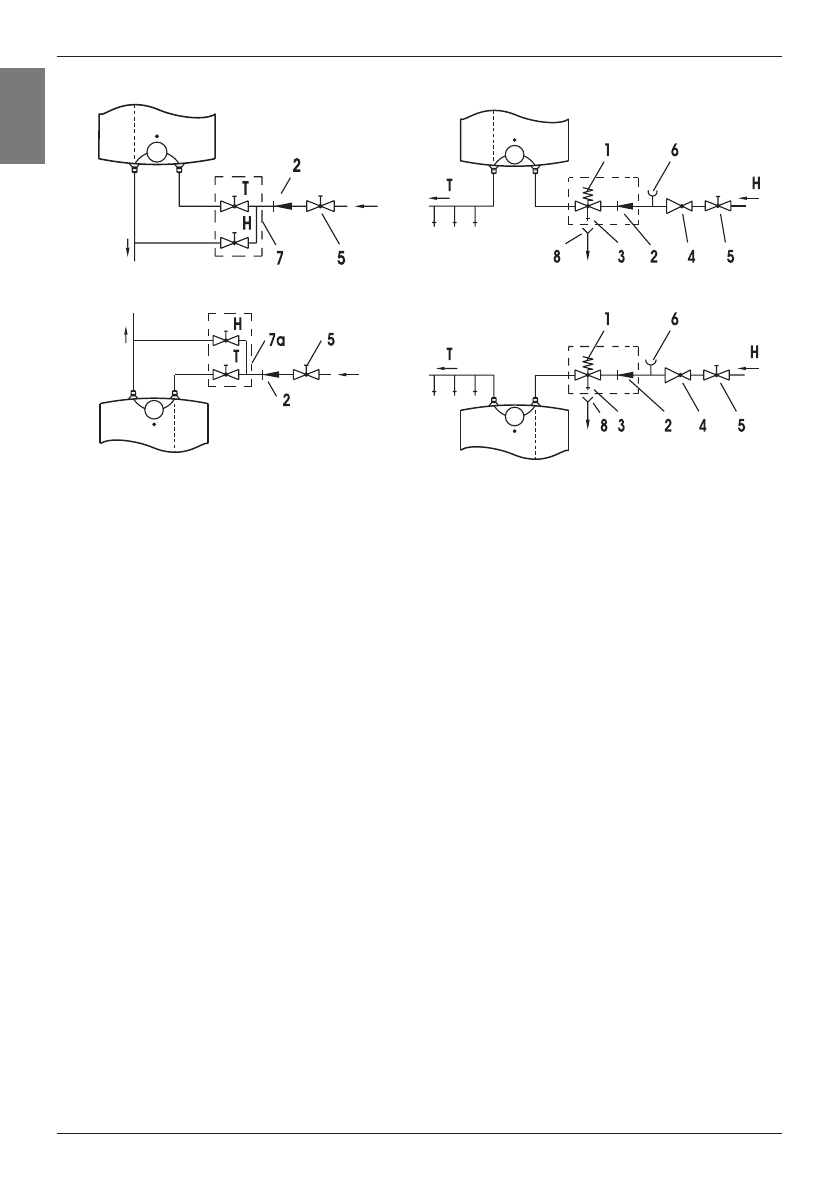

Open-circuit (gravity) system

Closed-circuit (pressure) system

GB

Installation above the basin/sink

Installation above the basin/sink

Installation below the basin/sink

Installation below the basin/sink

Legend:

1 - Safety valve

7 - Mixer tap - installation above the basin/sink

2 - Non-return valve

7a - Mixer tap - installation below the basin/sink

3 - Test valve

8 - Funnel outlet to the drain

4 - Pressure-reducing valve

5 - Stop valve

H - Cold water

6 - Testing piece

T - Hot water

The  stop  valve  must  not  be  installed  between  the  water  heater  and  safety  valve,  as

this would disable the safety valve.

The  water  heater  may  be  connected  to  the  water  supply  system  without  the  pressure-

reducing valve, provided the supply mains pressure is less than 0,5 MPa. The water heater

must  be  filled  with  water  prior  to  being  connected  to  the  power    supply. The  hot  water  tap

must be open during the initial filling of the tank. The tank is full when the water starts flowing

through the tap and into the sink.

POWER CONNECTION

The water heater shall be connected to the power supply by an electrical cable fitted with a

plug.  Should  the  existing  cable  replaced  by  a  new,  longer  cable,  the  new  cable  should  be

connected to the lead and the wires screwed to the connectors. In this case the water heater

should first be disconnected from the power supply. For safety reasons a switch should be

installed on the lead connecting the heater to the power grid, i.e. a switch disconnecting both

power supply poles with the minimum of 3 mm distance between the open contacts.

The water heater must be connected to the power supply in accordance with the requirements

set out in the relevant standards applying to the electrical installations.

WARNING: The appliance must be disconnected from the power supply prior to doing

anything that requires you to open the body of the water heater!
