Technical passporT

english

Mixed and gas fuelled built-in hot plates

cabinet and into which the hot plate
will be installed are indicaled in
either  fi g.  9.  Always  comply  with  the
measurements given for the hole into
which Ihe appliance will be recessed.

The appliance belongs to class 3 and

is therefore subject to all the provisions
established by the provisions governing
such appliances.

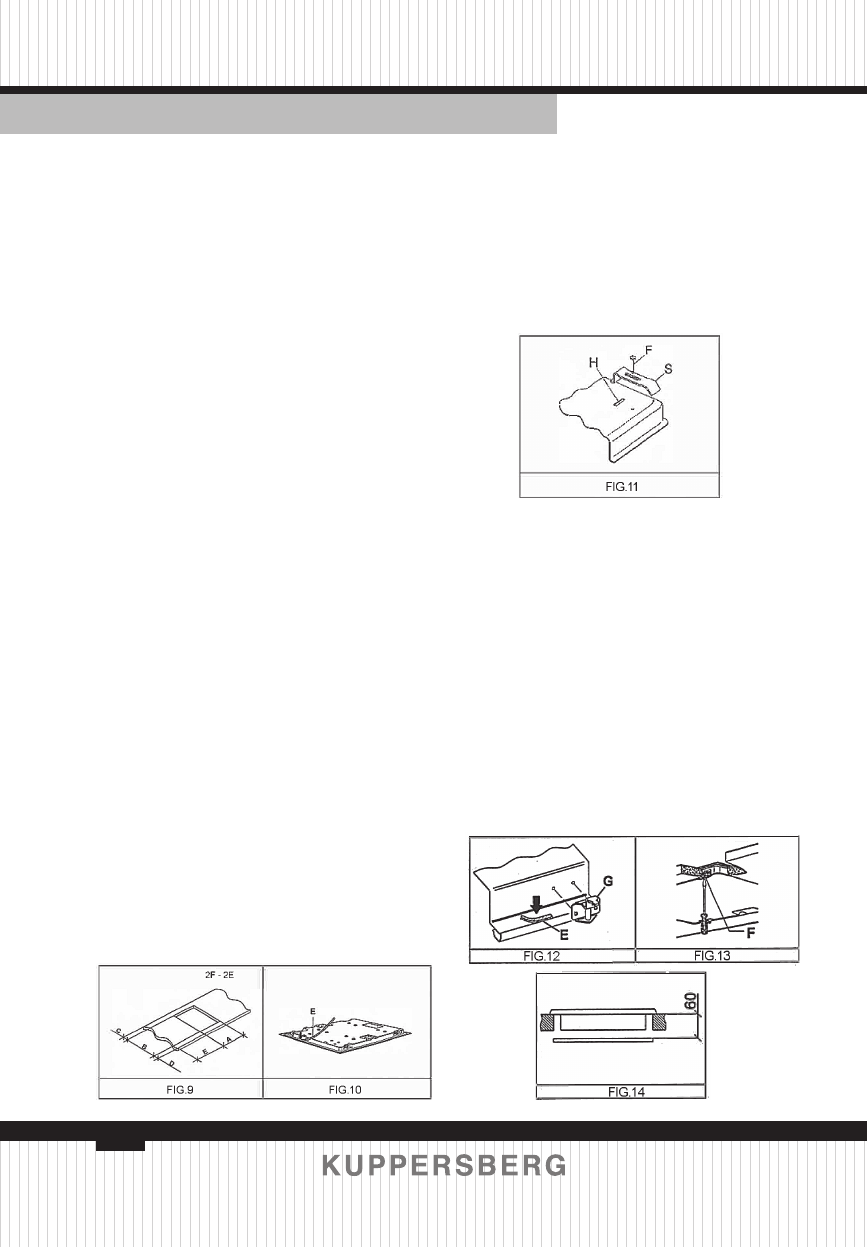

5) SEALING THE HOT PLATE

The hot plate has a special seal

which  prevents  liquid  from  infi ltrating
into the cabinet. Strictly comply with
the following instructions in order to
correctly apply this seal:

Â

Detach the seals from their

backing, checking that the transparent
protection still adheres to the seal itself.

Â

Overturn Ihe hol plate and

correctly position seal “E” (fi g. 1O) under
the edge of the hol plate itself, so that
the outer side of the seal perfectly
matches the outer perimetral edge of
the hol plate. The ends of the strips
must fi t together without overlapping.

Â

Evenly  and  securely  fi x  the  seal

to the hot plate, pressing it in place
with the fi ngers.

For the models FV3XW/FV3EW/

FV3XG/FV3EG/FV3XE/FV3GE

Fix the hob with the proper bracets

«S» and fi t the prominent part into the

porhole «H» on the bottom; turn the

screw «F» until the bracket «S» stick on

the top (fıg.11)

FV3VR/FM3VR/FV3XF/FV3XB

Â

Remove the clamps «G» from the

package and install !hem according to

the diagram in fıg.12.

Â

Secure the appliance by

thigtening the clamp screws «F» (see

fıg.13).

Â

In order to prevent any accidental

contact  with  the  suıface  of  the  heated

bbarbecue during use, a separation in

wood must be inserted and fastened

with screws at a minimum distance of

60 mm from the top (fi g.14).
