1

Cover

Latches

Press

Press

80 mm (3 - 1/8”)

Spool

For left hand rotation

Spool

100 mm (3 - 15/16”)

Notches

Eyelets

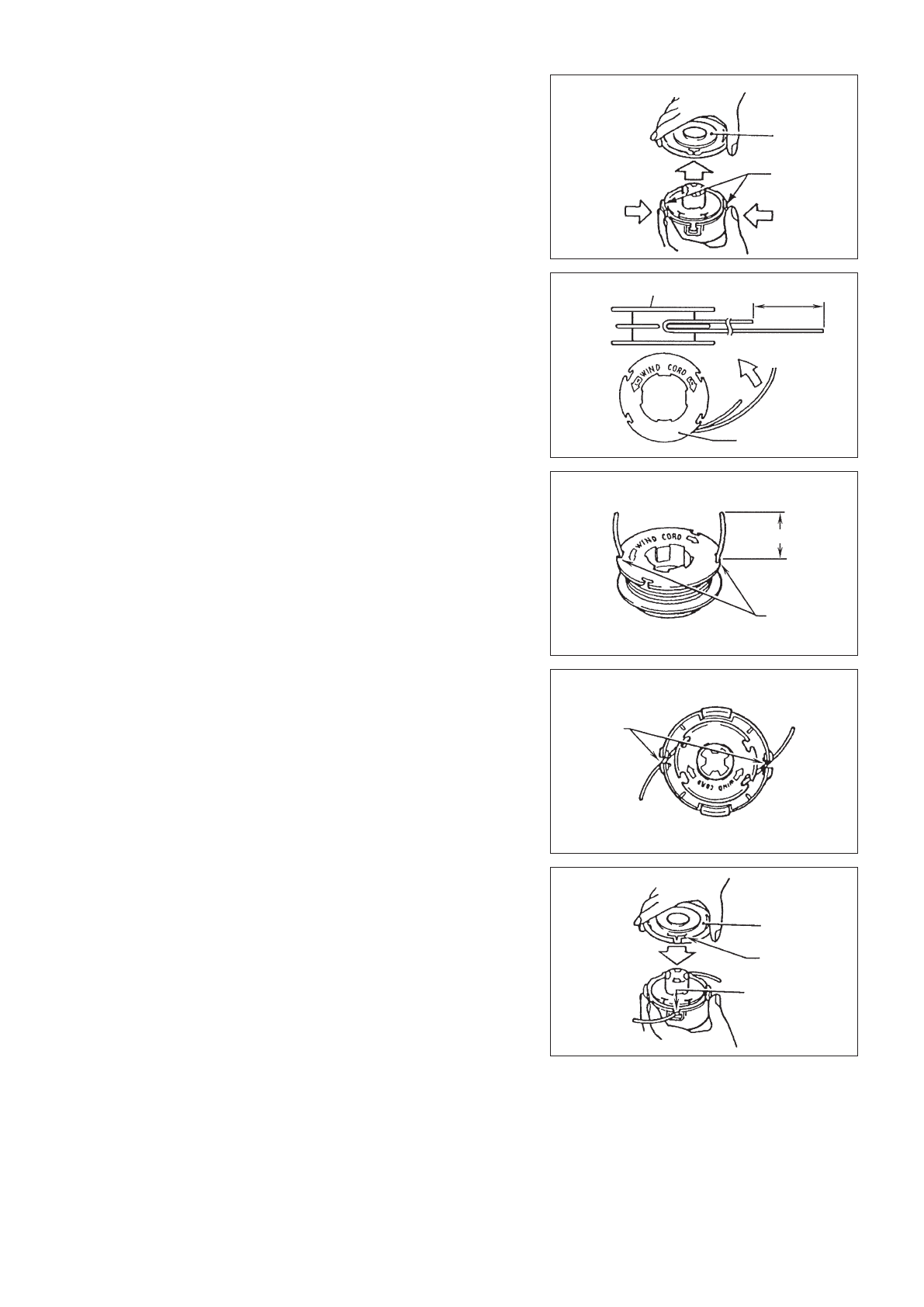

Replacing the nylon cord

–  First, stop the engine.
–  Press on the housing latches inward to lift off the cover, then remove the

spool.

–  Hook the center of new nylon cord into the notch in the center of the spool,

with one end of the cord extending about 80 mm (3 - 1/8”) more than the

other.

Then wind both ends firmly around the spool in the direction of the head

rotation (left-hand direction indicated by LH and right-hand direction by RH on

the side of the spool).

–  Wind all but about 100 mm (3 - 15/16”) of the cords, leaving the ends

temporarily hooked through a notch on the side of the spool.

–  Mount the spool in the housing so that the grooves and protrusions on the

spool match up with those in the housing. Keep the side with letters on

the spool visible on the top. Now, unhook the ends of the cord from their

temporary position and feed the cords through the eyelets to come out of the

housing.

–  Align the protrusion on the underside of the cover with the slots of the

eyelets.

Then push cover firmly onto the housing to secure it.

Cover

Protrusion

Slot of eyelet
