1

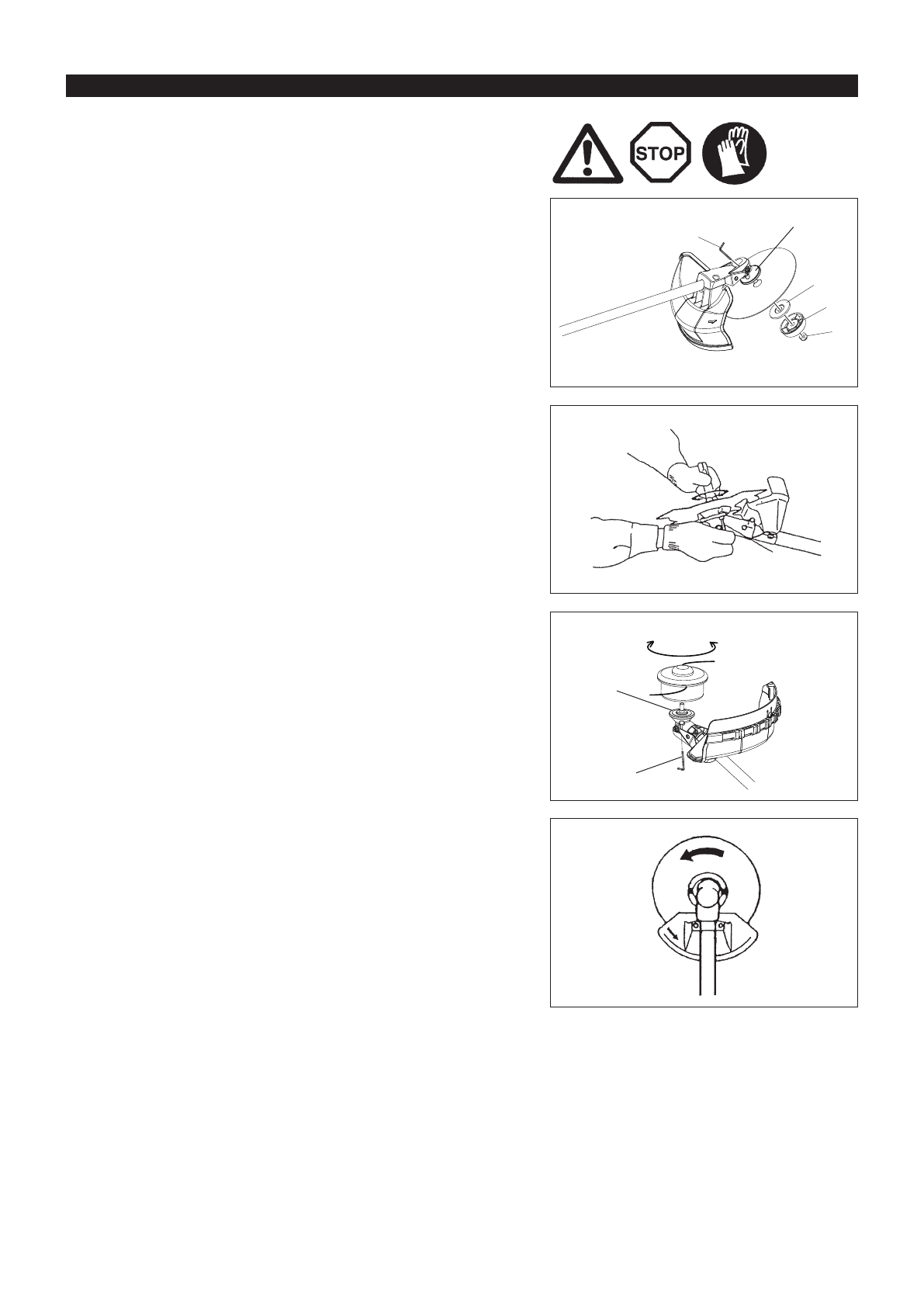

Turn the machine upside down, and you can replace the cutter blade or

nylon

cutting head

easily.

–  Insert the hex wrench through the hole in the gear case and rotate the

receiver washer (4) until it is locked with the hex wrench.

–  Loosen the nut (1) (left-hand thread) with the socket wrench and remove the

nut (1), cup (2), and clamp washer (3).

Rotation

Hex wrench

MOUNTING OF CUTTER BLADE OR NYLON CUTTING HEAD

Mounting of cutterblade with the hex wrench still in place

–  Mount the cutter blade onto the shaft so that the guide of the receiver washer

(4) fits in the arbor hole in the cutter blade. Install the clamp washer (3), cup

(2), and secure the cutter blade with the nut (1).

[Tightening torque: 13 - 23 N-m]

NOTE:  Always wear gloves when handling the cutter blade.

NOTE:   The cutter blade-fastening nut (with spring washer) is a consumable

part. If there appears any wear or deformation on the spring washer,

replace the nut.

Mounting of nylon cutting head

–  The clamp washer (3), cup (2), and nut (1) are not necessary for mounting

the nylon cutting head. The nylon cutting head should go on top of the

receiver washer (4).

–  Insert the hex wrench through the hole in the gear case and rotate the

receiver washer (4) until it is locked with the hex wrench.

–  Then screw the nylon cutting head onto the shaft by turning it counter-

clockwise.

–  Remove the hex wrench.

–  Make sure that the blade is the left way up.

(3)

(2)

(1)

Hex wrench

Loosen

Tighten

Hex wrench

(4)

(4)
