AUDIO CONNECTIONS

15

 En

CONNECTION

2

Eng

lish

■

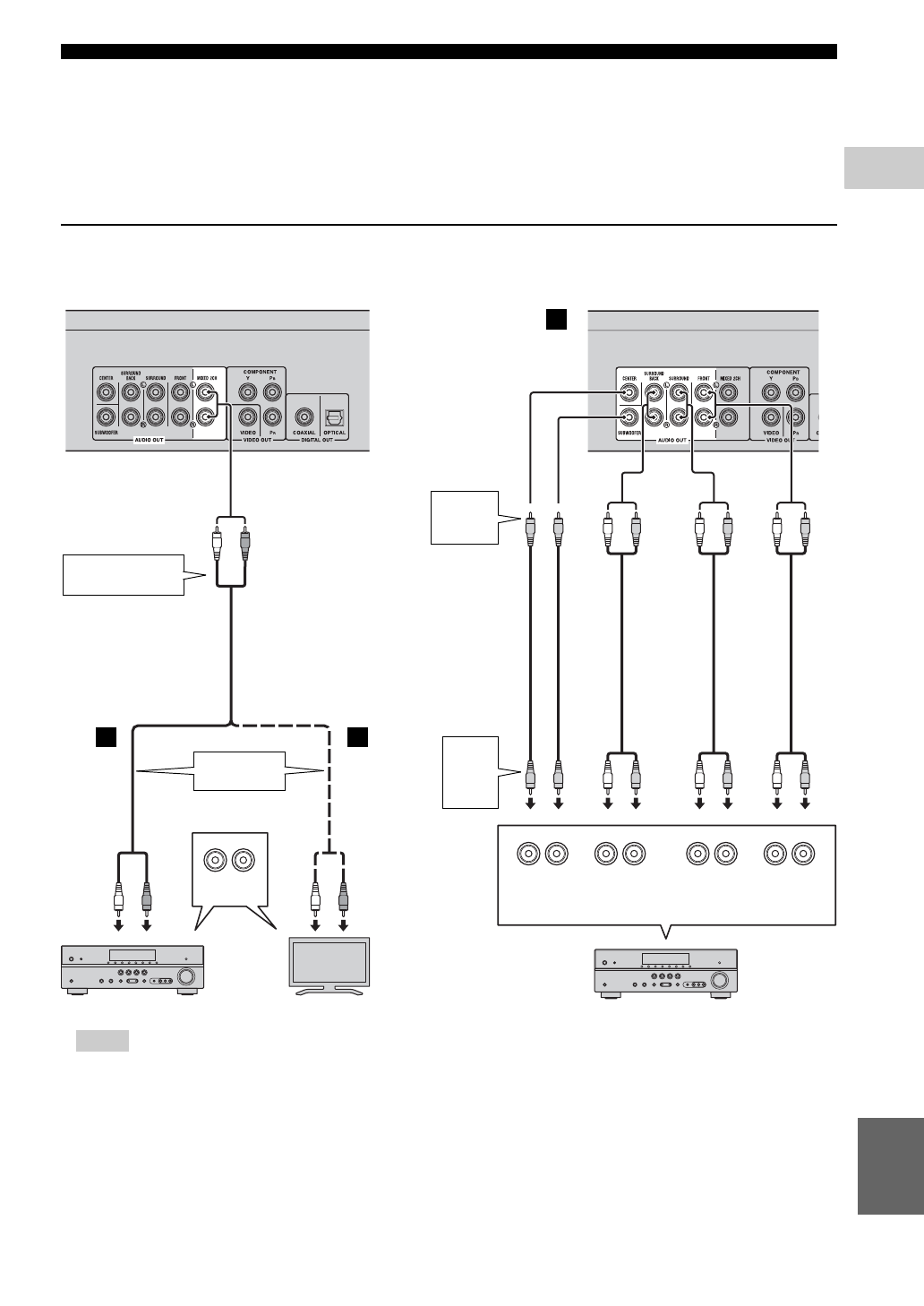

Connecting to the audio jacks

– You can connect audio equipment or the TV to the MIXED 2CH/7.1 ch surround jacks.
– Firmly connect audio pin cables (supplied and commercially available) to the MIXED 2CH jacks or 7.1 ch

surround jacks.

– See page 34 for information on the audio output formats.
– If you want to reproduce multi-channel SA-CD and DVD-Audio, connect 7.1 ch surround jacks to the

corresponding input jacks of your AV receiver using commercially available audio pin cables.

Caution!

Do not connect the power cable of this Player until all connections are completed.

– You can connect a subwoofer to the SUBWOOFER jack directly. When you connect TV to this Player directly,

connect an active subwoofer such as Yamaha Active Servo Processing Subwoofer System to this jack.

– To output the audio signal from the MIXED 2CH/7.1 ch surround jacks, refer to “Speaker Setting” (p. 33).

AUDIO

AUDIO IN

L

R

To AUDIO OUT
MIXED 2CH jacks

Audio pin cable
(supplied)

(W

hite

)

(R

ed

)

(White) (Red)

TV

AV receiver

This Player

To audio input
jacks

F

F’

(Wh

ite

)

(Re

d

)

(Wh

ite

)

(Re

d

)

MULTICH IN

SURROUND

L

R

SURROUND BACK

L

R

FRONT

L

R

CENTER SUBWOOFER

AV receiver

This Player

G

(Wh

ite)

(Re

d

)

(Wh

ite)

(Re

d

)

(Wh

ite)

(Re

d

)

Audio pin
cables
(supplied and
commercially
available)

(W

hite

)

(R

ed

)

(W

hite

)

(R

ed

)

(W

hite

)

(R

ed

)

To 7.1 ch
surround
jacks

To
MULTI
CH IN
jacks

(White) (Red)

(White) (Red) (White) (Red)

Hints
