Electrical connection

The unit is preset to work with a voltage
of single phase  230 V.
Before making the connection make sure
that:
— the energy power available in the

user's house is sufficient for the normal
supply of this appliance (see rating
plate).

— the unit is correctly connected to

earth through a suitable plug and
according to the installation country
Laws.

— the socket or the omnipolar switch

used for the connection must be easilv
reached with the installed appliance.

The appliance is supplied with electric
cable, therefore you will have to fit it with
a standard plug, suitable for the total
electric load shown on the rating plate.
The plug isto be inserted into a suitable
wall socket.
If you wish to directly connect to the
m a i n s ,   y o u   h a v e   t o   i n t e r p o s e   a n
o m n i p o l a r   s w i t c h   w i t h   a   m i n i m u m
opening between contacts of 3 mm,
b e t w e e n   t h e   u n i t   a n d   t h e   m a i n s ,
complying with the existing regulations.
The brown live wire (originating from the
clamp of the cooker junction box) must
always be connected to the phase of the
mains supply. In any case, the supply
cord must be positioned in such a way
as it doesn't reach in any point a
temperature higher by 50°C than the
room temperature.
Should the supply cord need to be
replaced, use only the following cable
types:

H05RR-F / H05VV-F / H05V2V2-F (T90).
It is necessary that the yellow/green
earth wire is about 2cm longer than the
live and neutral ones.
After the connection, test the heating
elements for about 3 minutes to ensure
that they are working correctly.

T h e   m a n u f a c t u r e r   r e f u s e s   a n y
r e s p o n s a b i l i t y   i n   c a s e s   w h e r e
normal safety measures are not
observed.

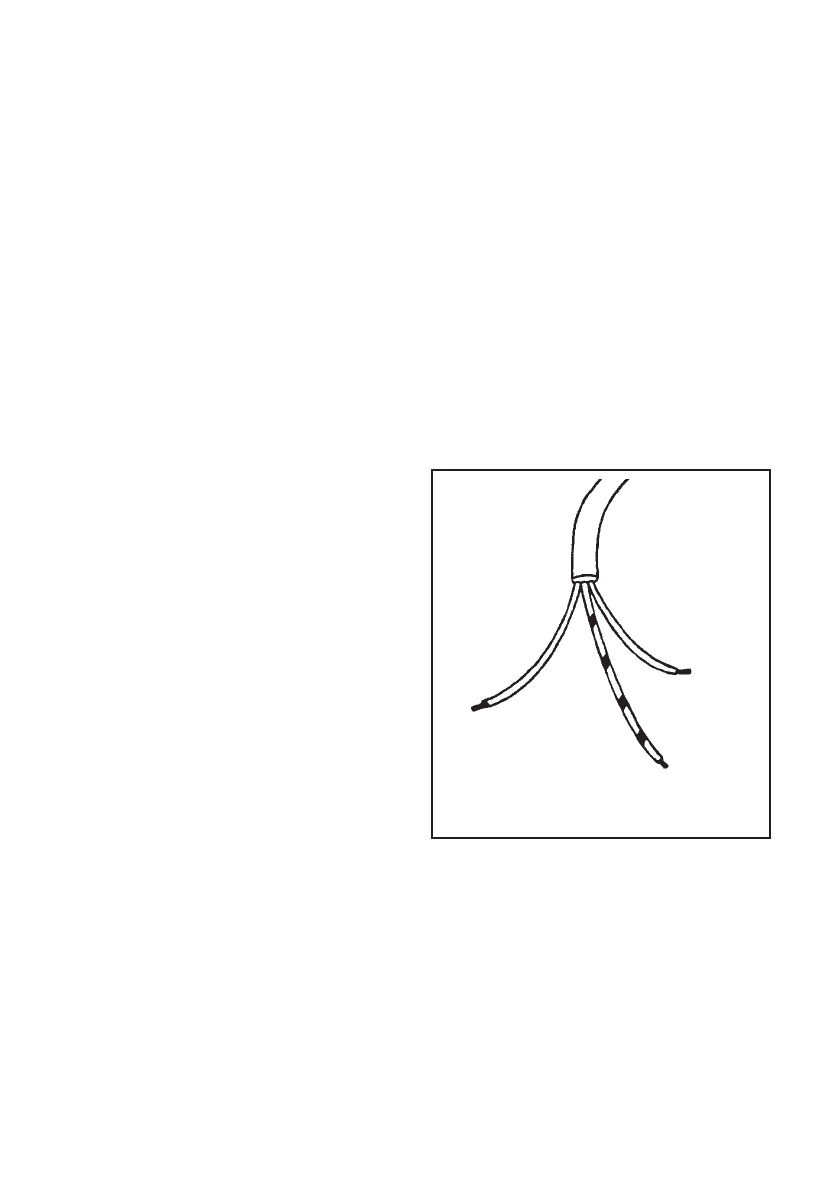

Ground (yellow - green)

Phase

Neutral wire
