Replacement of gas oven

burner nozzle

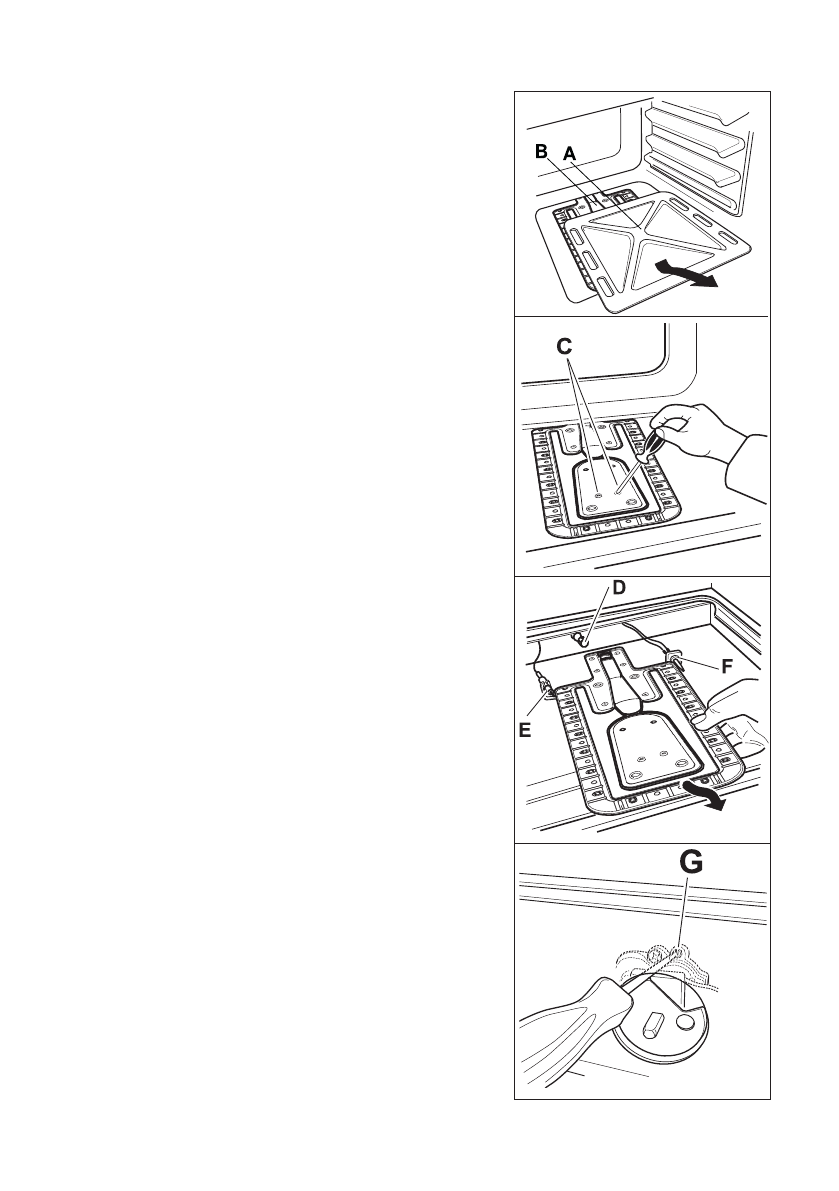

To replace the gas oven nozzle, follow

this procedure:

1.

Remove the bottom plate of the oven
cavity

 (“A”)

;

2.

Undo the two fixing screws

(“C”)

which keep the oven gas burner in
place

3 .

Gently slide the oven gas burner off
the injector support

 (“D”)

and slowly

move it to the left hand side, taking
care not to cause stress to the spark
plug connection wire

(“E”)

 and the

thermocouple

 (“F”)

conductor;

4.

With a socket spanner 7 unscrew and
remove the gas burner injector

(“D”)

,

and replace it with the required one
(see table "Burner characteristics");

5 .

Reassemble the burner following the
same procedure in reverse.

6 .

Replace the gas type sticker (it is
located near the  gas connection
ramp) with the one relevant to the
new gas type which is supplied with
the injector kit.

Minimum level adjustment of
gas oven burner

After setting the oven on maximum

temperature with  door closed for about
10 minutes, turn the knob to minimum.
To reach the thermostat by-pass screw

("G")

and adjust the minimum level, act

as follows:

1.

take out the  gas oven and electric
grill control knob.

2.

With a thin screwdriver, adjust the
b y - p a s s   s c r e w   p o s i t i o n e d   i n   t h e
centre of the gas tap control shaft
(see picture). If changing from natu-
ral gas 20 mbar to liquid gas,
