Gas connection

Gas connection must be carried out

according to the rules in force. The
manufacturing company release the unit,
once tested, adjusted for the kind of gas
stated on the rating plate located on the
back of the range, next to connection
pipe. Be sure that you are going to connect
the unit to the same kind of gas written on
the plate.

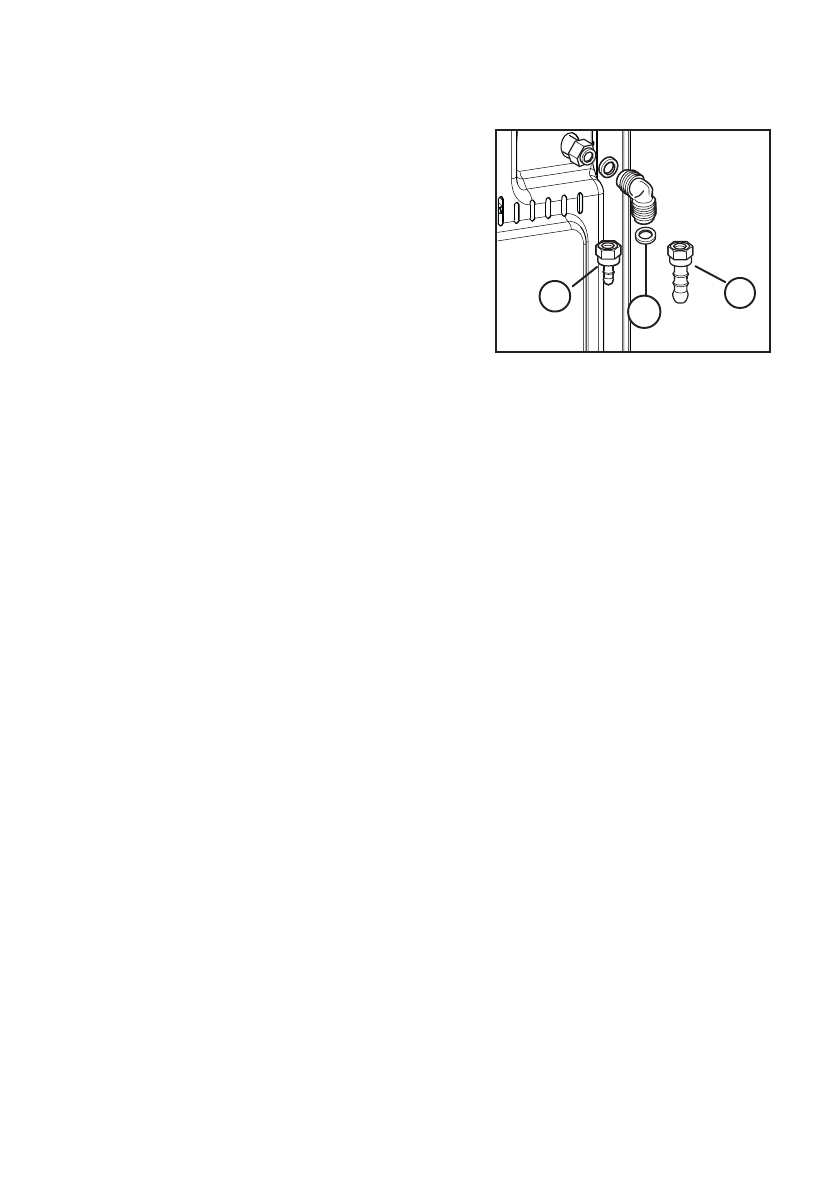

Gas connection

LPG :

use the rubber pipe holder «D».

Natural gas :

use the pipe holder «E».

Always insert the gasket «B». Then

proceed with the gas connection, as
indicated in the relevant paragraphs.

Connection using flexible non
metal pipes

When the connection can be easily

inspected in its full extent, there is the
chance to use a flexible pipe according to
the rules in force. The flexible pipe must
be tightly fixed using clamps according to
the rules in force.

The flexible pipe should be made

ready for use in such a way that:
-

nowhere it can reach overtemperature,
other than room temperature, higher
than 30°C; if the flexible pipe, to reach
the cock, must run behind the range,
it must be installed as shown in the
diagram;

-

it is no longer than 1500 mm;

-

it shows no throttles;

-

it is not subject to traction or torsion;

-

it does not get in touch with cutting
edges or corners;

-

it can be easily inspected in order to
check its condition.

E

B

D

B

Gasket

D

LPG  Rubber  Pipe  Holder

E

Pipe  Holder
