ROTARY HEAD (optional accessory)

The high pressure washer can be fitted with a head with rotary

nozzle to clean the most stubborn dirt.

Danger:

Aim the jet from a certain distance to avoid damage caused by

the high pressure.

Do not aim the jet at people, animals or electrical sockets.

STOPPING THE CLEANER

1

) After using with detergent, flush out the intake circuit; place

the detergent suction hose (fig. 8) in a tank of clean water and

let the pump run for 1 minute with the dosing tap turned fully

on and the lance in detergent delivery condition.

2

) Stop the cleaner by turning the selector switch to pos. "0"

(fig. 6A).

3

) Discharge the pressure from the H.P. hose by pressing the

trigger on the gun (fig. 5A).

4

) Disconnect the water cleaner from the mains electricity

supply via the omnipolar switch or by unplugging the plug from

the socket.

5

) Turn off the water supply tap (fig. 4A).

Warning

- If the water cleaner is left, even temporarily, turn it off by using

the omnipolar switch or by unplugging the plug from the socket.

STARTING THE CLEANER

1

) Turn on the water supply tap (fig. 4A).

2

) Connect the water cleaner to the mains electricity supply via

the omnipolar switch or by plugging the plug into the socket.

3

) Start the cleaner by turning the selector switch to pos. 1

(fig. 6A).

Warning

The high pressure water jet generates a reaction force in the

lance. Keep a firm grip on the lance handle.

4

) Press the trigger on the gun and begin washing.

Warning

In water cleaners with the “Total Stop” system, the motor starts

and stops when the lever on the lance handle is actioned or

released.

Danger

Do not block the handle lever in the delivery position.

Warning

If malfunctions are found at startup, refer to the chapter "Trouble

Shooting".

SIGNALS AND FAULTS DISPLAYED.

Indicator light B):

 Power is on when the indicator light is on

steady (switch “A” in pos. I); when the indicator light is flashing,

the high pressure washer is in “TSI” status.

Indicator light C):

 Fault indicator:

- 2 flashes, minor leak alarm:

Minor leaks detected or water nozzle clogged: the high pressure

washer shuts down.

- 3 flashes, no water alarm:

After 3 minutes of operation with no water detected, the high

pressure washer shuts down.

- 4 flashes, motor thermal protector activated:

The high pressure washer shuts down.

- 5 flashes, anti-flood system activated:

After 1 hour of non-stop operation, the high pressure washer

shuts down.

Indicator  light  D):

200h programmed maintenance interval

expired.  The  light  will  go  off  following  maintenance  by  the

authorised service centre.

N.B.  To  reset  the  fault  si

-

gnals, turn main switch “A”

to  pos.  “0”  and  then  back

to pos. “I”.

For further assistance, con

-

tact  the  technical  service

centre.

IMPORTANT

!

To  eliminate  any  impurities

or air bubbles from the wa

-

ter circuit we advise starting

the cleaner for the first time

without the lance and letting

the  water  run  out  for  a  few

seconds.

Impurities  could  block  the

nozzle and cause malfun-

ction (Fig. 7).

USING THE ACCESSORIES.

The high pressure washer

has a nozzle with a flat   jet for

cleaning large surfaces.

Warning

Aim the jet from a certain

distance to avoid damage

caused by the high pressure.

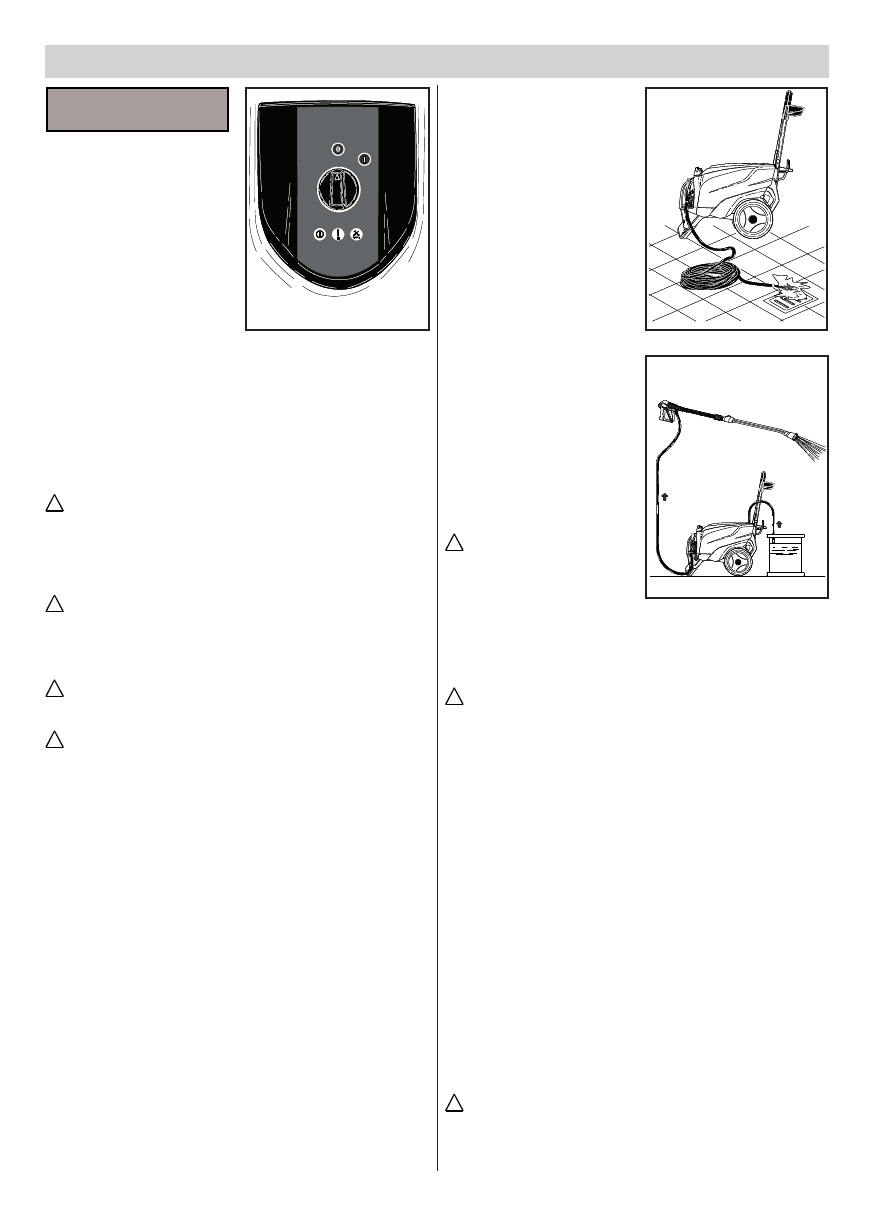

USING

THE CLEANER

CONTROL PANEL

A

 - On/off switch

Indicator lights (if featured).

B - Power indicator light.

C - Fault indicator light.

D - Programmed maintenance

indicator light.

!

!

!

!

!

!

!

FIG. 7

FIG. 6

FIG. 8

A

B C D
