Overview of Components

6.

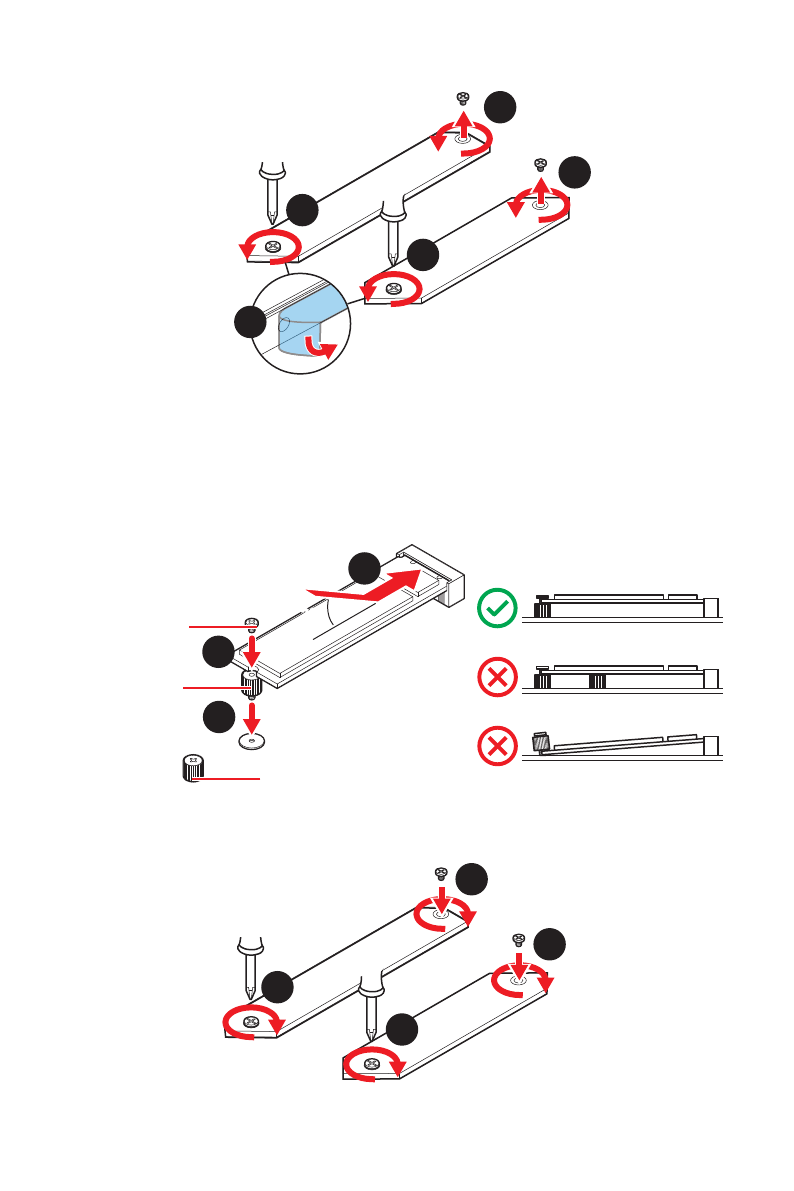

Put the M.2 SHIELD FROZR heatsink back in place and secure it.

3.

Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD,

or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2

heatsink to avoid damage to the M.2 SSD.

4.

Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5.

Secure the M.2 SSD in place with the M.2 screw, or skip this step if you remove the

M.2 standoff in step 3.

1

1

1

1

2

30º

30º

M.2 standoff

heatsink standoff

3

5

4

M.2 screw

6

6

6

6
