11

Overview of Components

Overview of Components

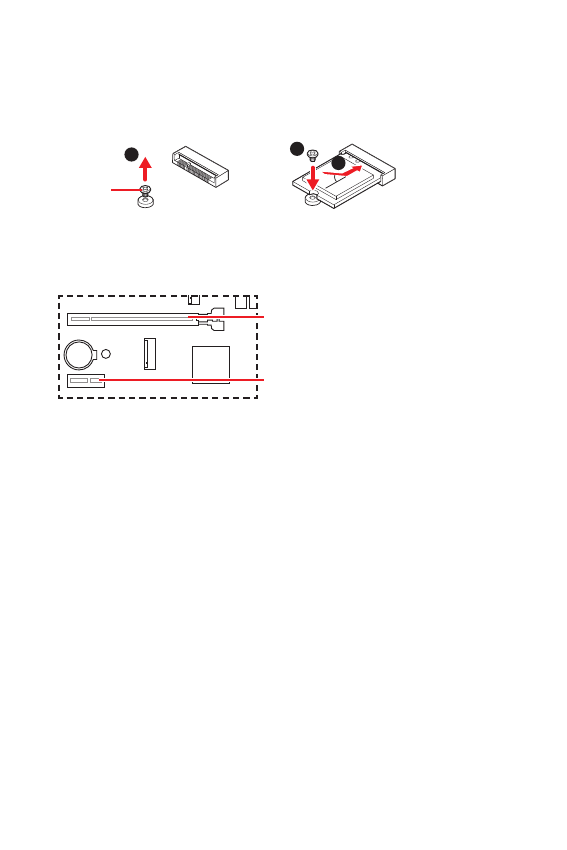

PCI_E1~2: PCIe Expansion Slots

⚠

Important

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

∙

If you install a large and heavy graphics card, you need to use a tool such as

MSI

Gaming Series Graphics Card Bolster

 to support its weight to prevent deformation

of the slot.

BAT1

PCI_E1

:  PCIe 3.0 x16 slot (CPU)

PCI_E2

: PCIe 3.0 x1 slot (PCH)

M2_2: M.2 Slot (Key E)

Please install the Wi-Fi module into M.2_2 slot as shown below.

Supplied

M.2 screw

30º

30º

1

2

3
