Overview of Components

30º

30º

M.2 standoff

heatsink standoff

3

5

4

M.2 screw

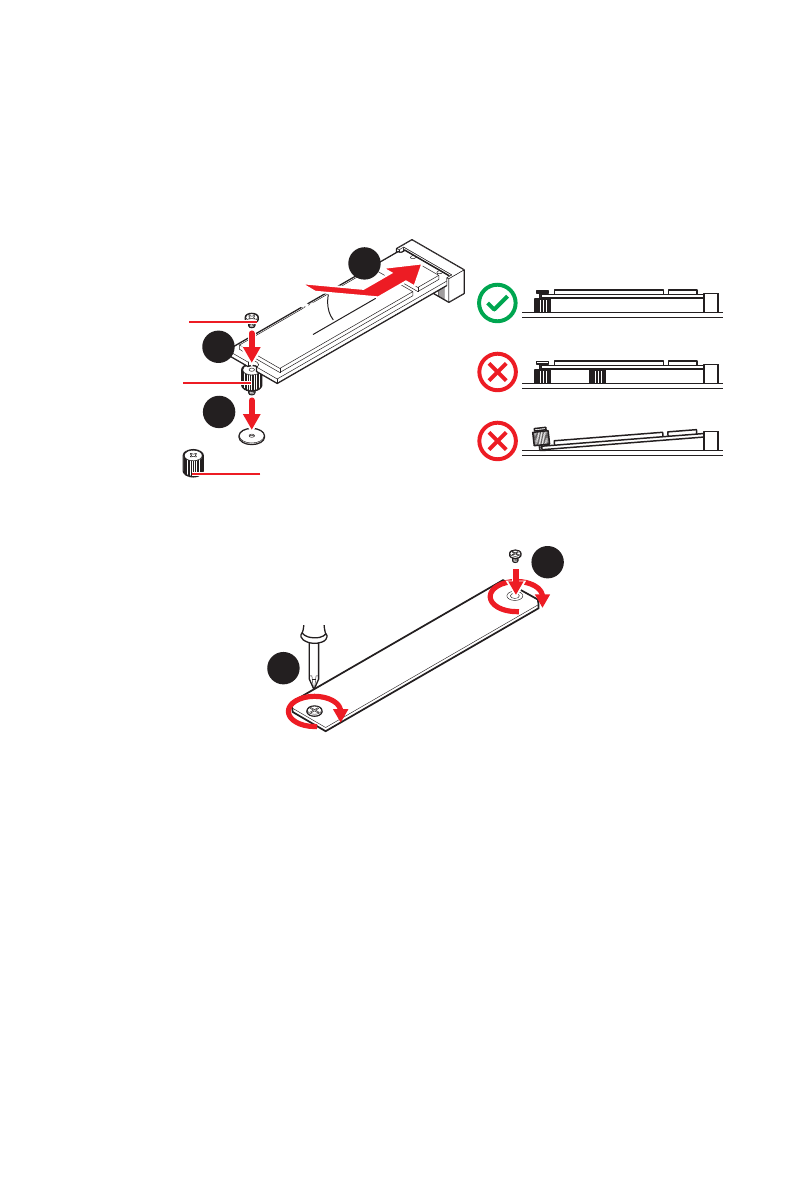

M2_2 slot installation

1.

Move the position of the standoffs according to your M.2 SSDs length if need.

2.

Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

3.

Secure the M.2 SSD in place with the supplied M.2 screw.

3.

Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD,

or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2

heatsink to avoid damage to the M.2 SSD.

4.

Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

5.

Secure the M.2 SSD in place with the M.2 screw, or skip this step if you remove the

M.2 standoff in step 3.

6.

Put the M.2 SHIELD FROZR heatsink back in place and secure it.
