10

Rear I/O Panel

∙

Device Selection

 - allows you to select a audio output source to change the related

options. The

check

 sign indicates the devices as default.

∙

Application Enhancement

 - the array of options will provide you a complete

guidance of anticipated sound effect for both output and input device.

∙

Main Volume

 - controls the volume or balance the right/left side of the speakers

that you plugged in front or rear panel by adjust the bar.

∙

Jack Status

 - depicts all render and capture devices currently connected with your

computer.

∙

Connector Settings

 - configures the connection settings.

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1

connector and follow the below steps.

1.

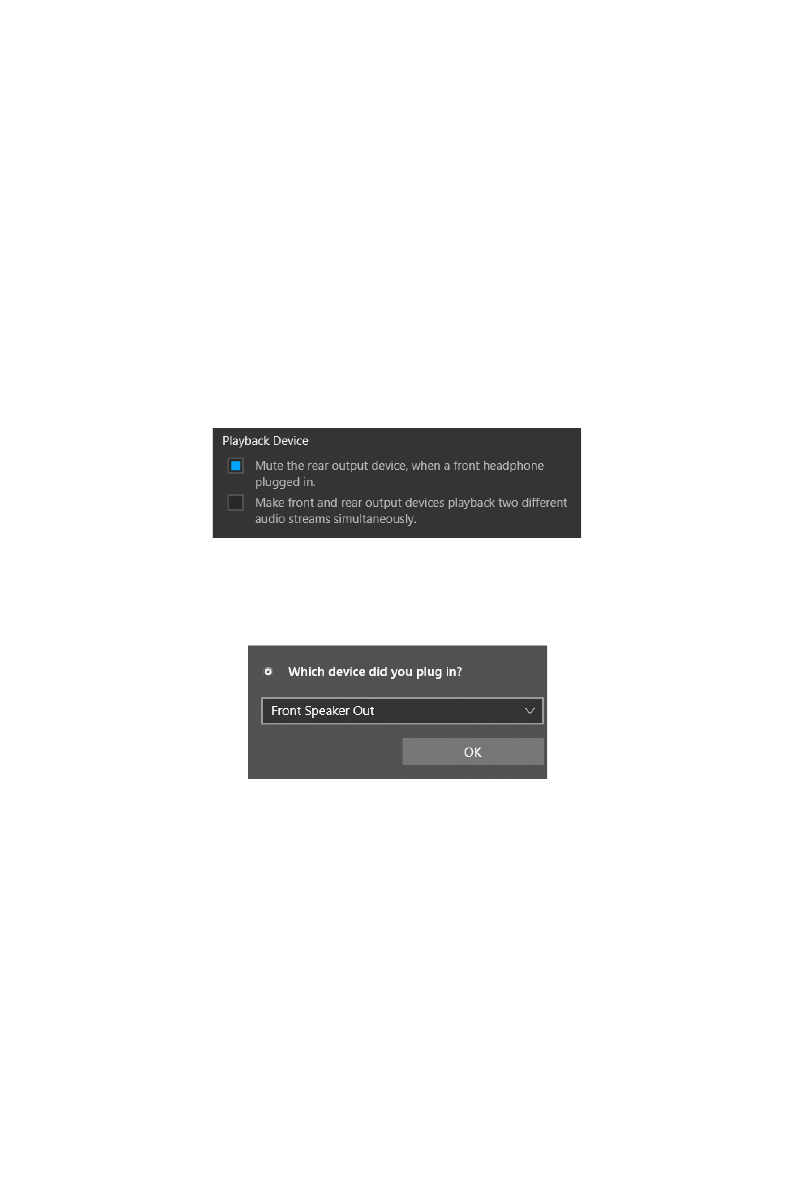

Click on the Realtek Audio Console > Device advanced settings to open the dialog

below.

2.

Select

Mute the rear output device, when a front headphone plugged in

.

3.

Plug your speakers to audio jacks on rear and front I/O panel. When you plug a

device into an audio jack, a dialogue window will pop up asking you which device is

current connected.

⚠

Important

The pictures above for reference only and may vary from the product you purchased.
