Hardware Installation
- 15 -
1-4
Installing the Memory
Read the following guidelines before you begin to install the memory:
•
Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•
Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
•
Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
1-4-1 Dual Channel Memory Configuration
This motherboard provides two DDR2 memory sockets and supports Dual Channel
Technology. After the memory is installed, the BIOS will automatically detect the
specifications and capacity of the memory. Enabling Dual Channel memory mode
will double the original memory bandwidth.
The two DDR2 memory sockets are divided into two channels as following:
Channel 0: DDR2_1
Channel 1: DDR2_2
Due to CPU limitation, read the following guidelines before installing the memory in Dual Channel mode.
1 . Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2 . When enabling Dual Channel mode with two memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used.

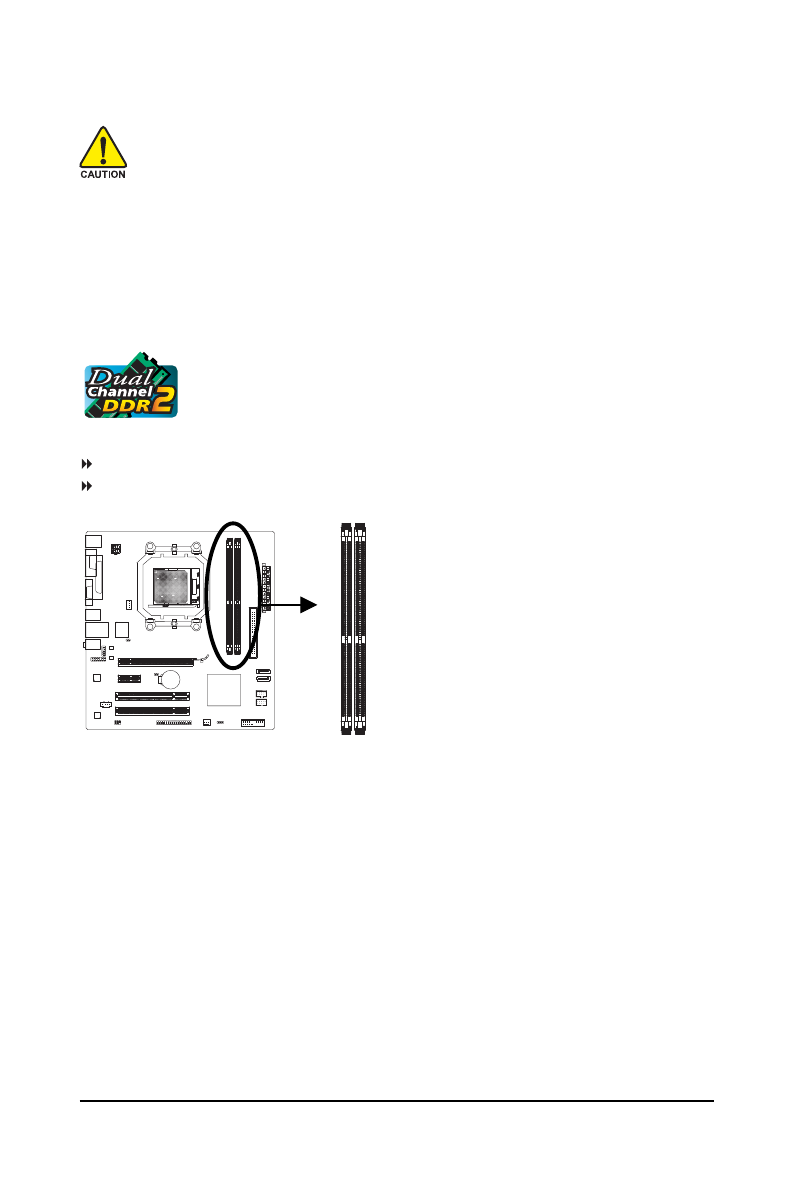

DDR2_1 DDR2_2
