Hardware Installation
- 22 -
ATX_12V_2X:
DEBUG
PORT
G.QBOFM
13
1
24
12
ATX
ATX:

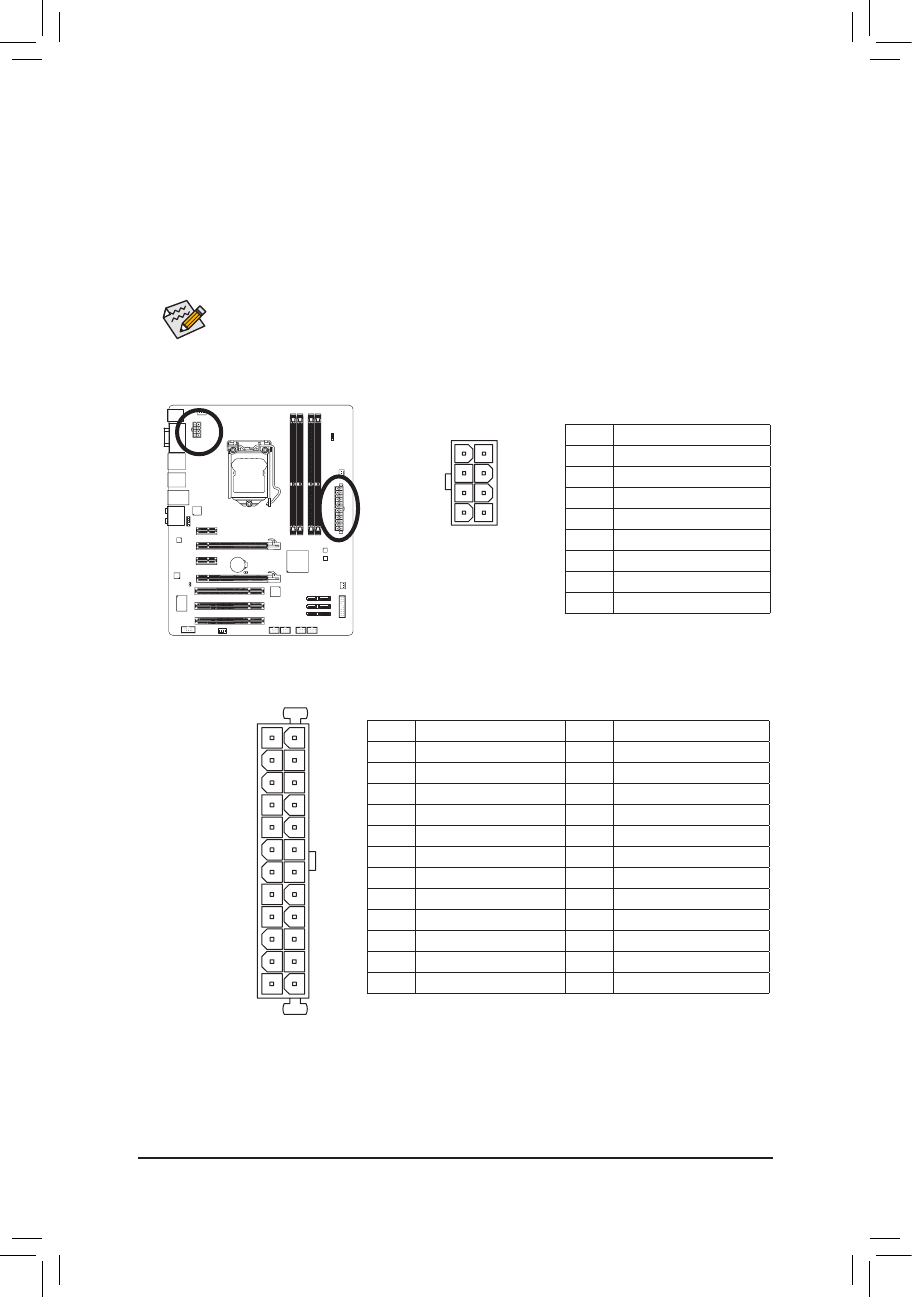

1/2) ATX_12V_2X/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the com-
ponents on the motherboard. Before connecting the power connector, first make sure the power supply
is turned off and all devices are properly installed. The power connector possesses a foolproof design.
Connect the power supply cable to the power connector in the correct orientation. The 12V power con-
nector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will
not start.
To meet expansion requirements, it is recommended that a power supply that can withstand high
power consumption be used (500W or greater). If a power supply is used that does not provide
the required power, the result can lead to an unstable or unbootable system.
DEBUG
PORT
G.QBOFM
ATX_12V_2X
5
8
1
4
Pin No.
Definition
1
GND (Only for 2x4-pin 12V)
2
GND (Only for 2x4-pin 12V)
3
GND
4
GND
5
+12V (Only for 2x4-pin 12V)
6
+12V (Only for 2x4-pin 12V)
7
+12V
8
+12V
Pin No.
Definition
Pin No.
Definition
1
3.3V
13
3.3V
2
3.3V
14
-12V
3
GND
15
GND
4
+5V
16
PS_ON (soft On/Off)
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
Power Good
20
-5V
9
5VSB (stand by +5V)
21
+5V
10
+12V
22
+5V
11
+12V (Only for 2x12-pin ATX)
23
+5V (Only for 2x12-pin ATX)
12
3.3V (Only for 2x12-pin ATX)
24
GND (Only for 2x12-pin ATX)
