Hardware Installation

- 18 -

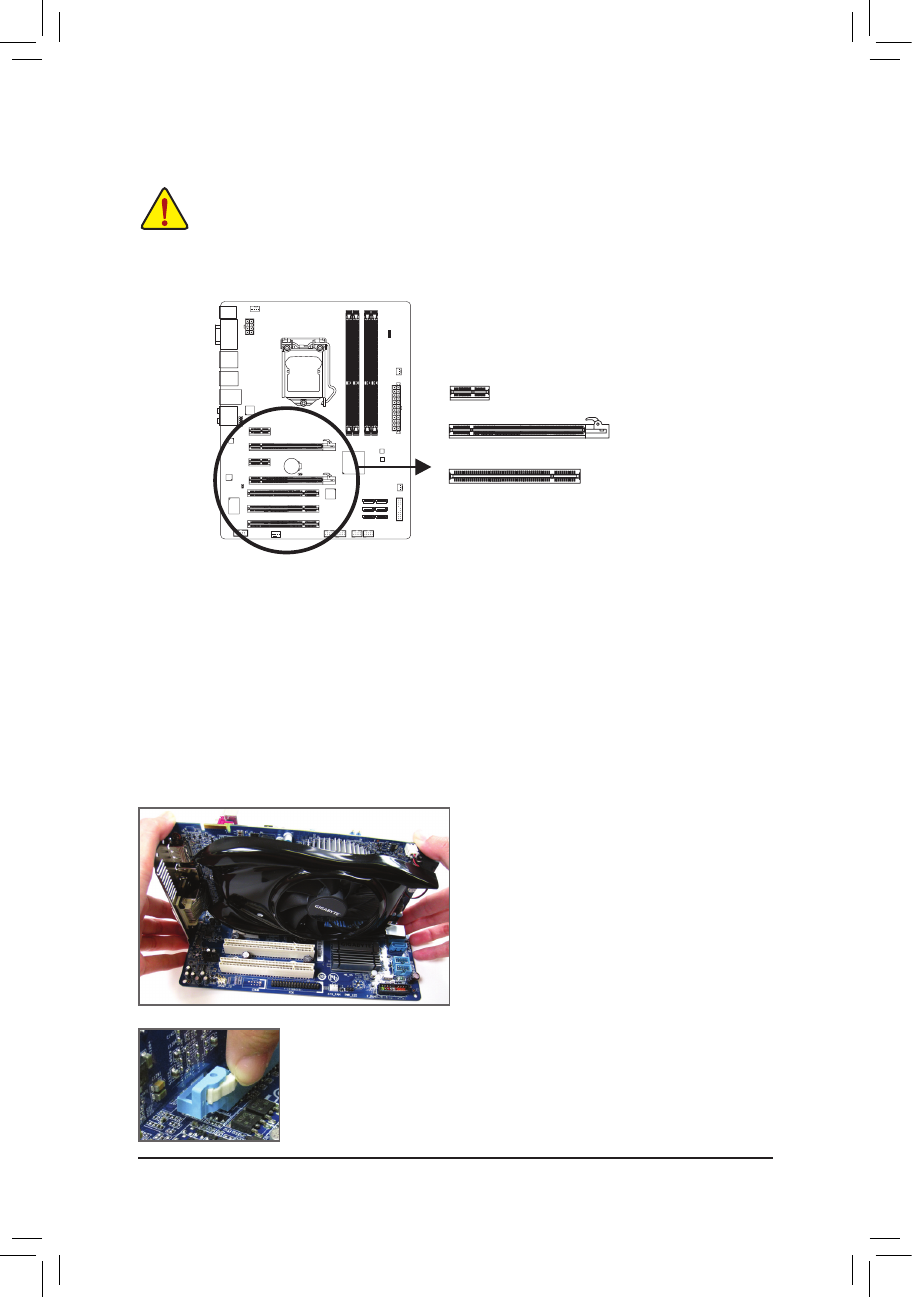

1-5  Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•

  Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•

  Always turn off the computer and unplug the power cord from the power outlet before installing

an expansion card to prevent hardware damage.

Follow the steps below to correctly install your expansion card in the expansion slot.
1.  Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2.  Align the card with the slot, and press down on the card until it is fully seated in the slot.
3.  Make sure the metal contacts on the card are completely inserted into the slot.
4.  Secure the card’s metal bracket to the chassis back panel with a screw.
5.  After installing all expansion cards, replace the chassis cover(s).
6.  Turn  on  your  computer.  If  necessary,  go  to  BIOS  Setup  to  make  any  required  BIOS  changes  for  your

expansion card(s).

7.  Install the driver provided with the expansion card in your operating system.

Example: Installing and Removing a PCI Express Graphics Card:

PCI Slot

PCI Express x16 Slot

•

  Installing a Graphics Card:

  Gently push down on the top edge of the card until

it  is  fully  inserted  into  the  PCI  Express  slot.  Make
sure  the  card  is  securely  seated  in  the  slot  and
does not rock.

•

  Removing the Card:

  Press the latch at the end of the PCI Express slot to release the card and then

pull the card straight up from the slot.

PCI Express x1 Slot
