- 15 -

Hardware Installation

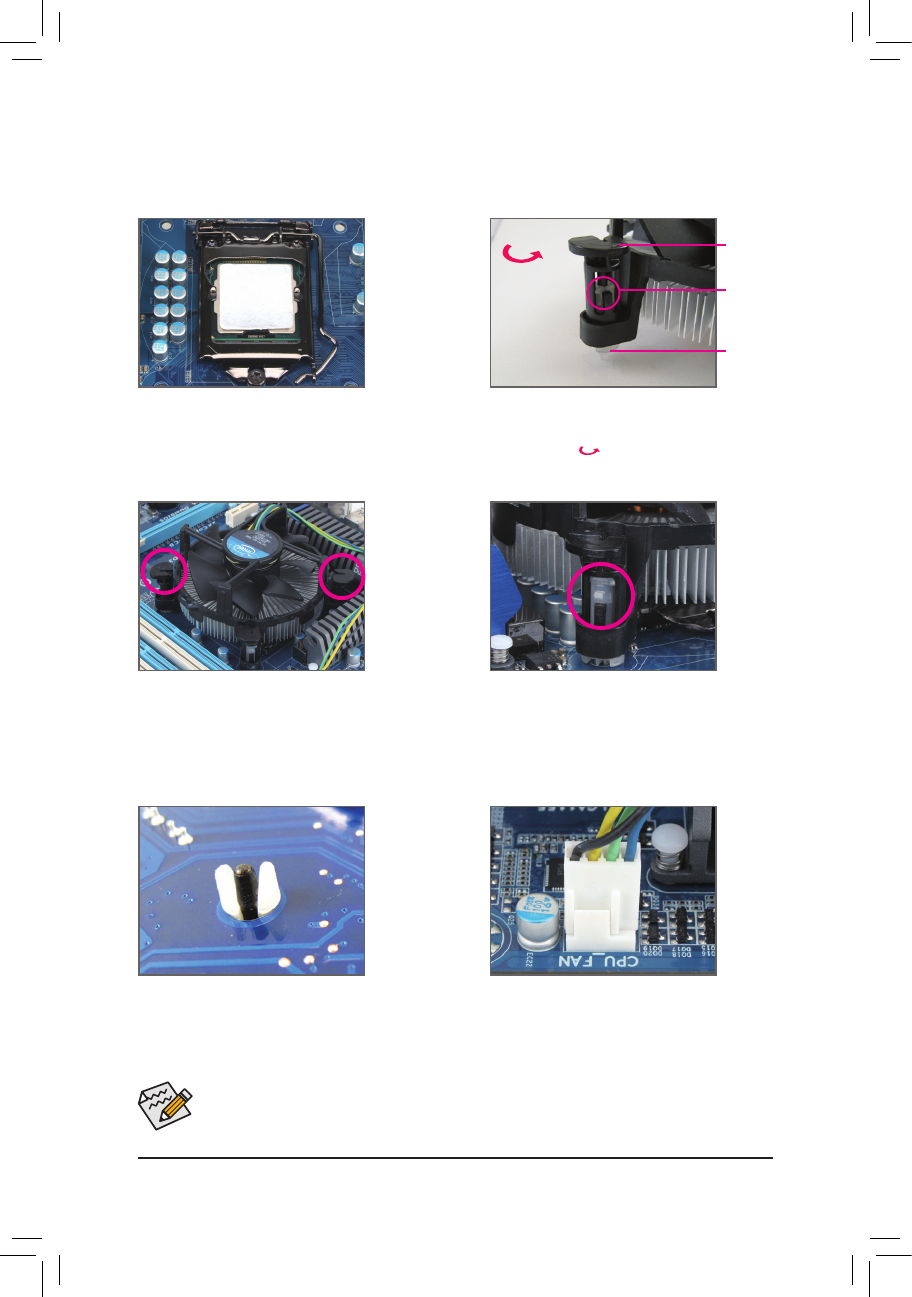

1-3-2  Installing the CPU Cooler

Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure uses
Intel

®

 boxed cooler as the example cooler.)

Use  extreme  care  when  removing  the  CPU  cooler  because  the  thermal  grease/tape  between  the
CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage
the CPU.

Step 1:
Apply  an  even  and  thin  layer  of  thermal  grease
on the surface of the installed CPU.

Male Push

Pin

Female

Push Pin

The Top

of Female

Push Pin

Direction of the

Arrow Sign on

the Male Push

Pin

Step 2:
Before installing the cooler, note the direction of

the arrow sign

on the male push pin. (Turn-

ing the push pin along the direction of arrow is to

remove the cooler, on the contrary, is to install.)

Step 3:
Place the cooler atop the CPU, aligning the four

push  pins  through  the  pin  holes  on  the  mother-

board. Push down on the push pins diagonally.

Step 4:
You  should  hear  a  "click"  when  pushing  down

each push pin. Check that the Male and Female

push pins are joined closely. (Refer to your CPU

cooler  installation  manual  for  instructions  on

installing the cooler.)

Step 5:
After the installation, check the back of the moth-

erboard. If the push pin is inserted as the picture

above shows, the installation is complete.

Step 6:
Finally,  attach  the  power  connector  of  the  CPU

cooler to the CPU fan header (CPU_FAN) on the

motherboard.
