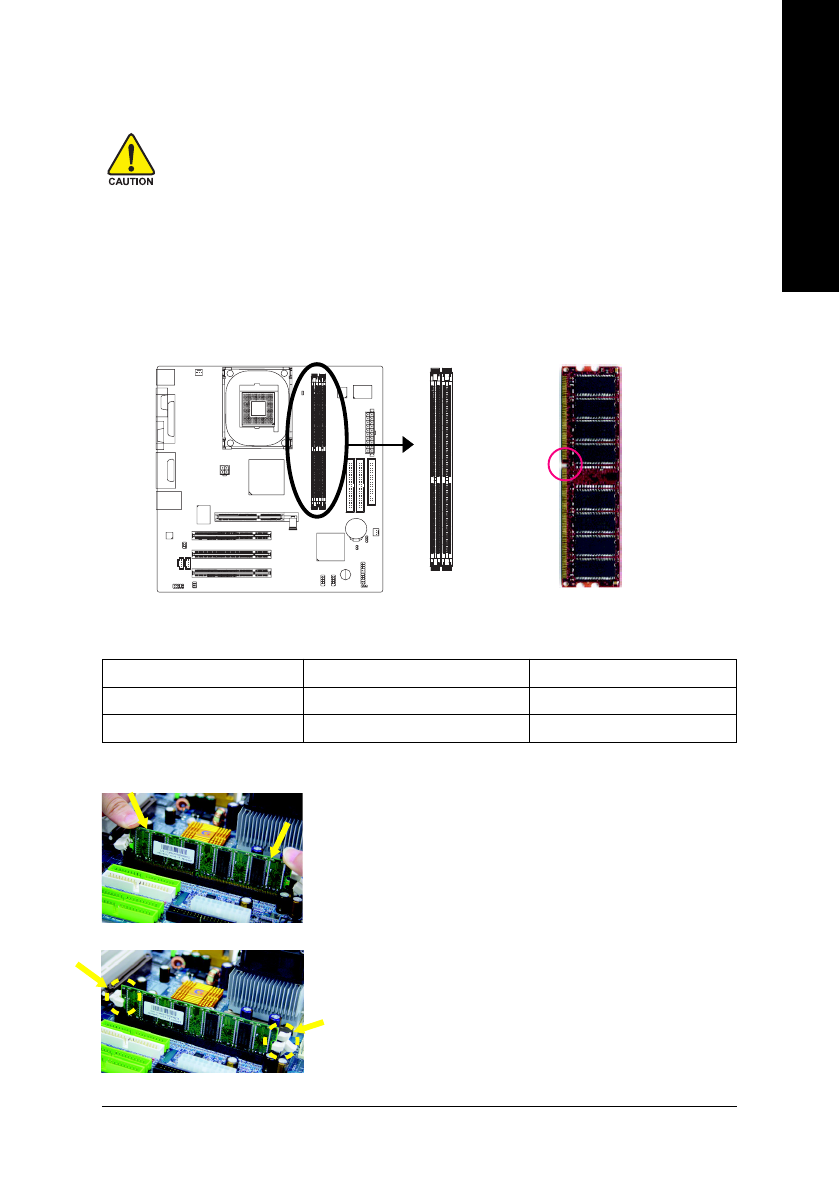

Hardware Installation Process
English
Step 2: Installation of Memory
DDR
Notch
Before installing the memory modules, please comply with the following conditions:
1 . Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2 . Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3 . Memory modules have a foolproof insertion design. A memory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
Fig.1
The DIMM socket has a notch, so the DIMM memory module can
only fit in one direction. Insert the DIMM memory module vertically
into the DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to lock the
DIMM module.
Reverse the installation steps when you wish to remove the DIMM
module.
Support Unbuffered DDR DIMM Sizes type:
64 Mbit (2Mx8x4 banks)
64 Mbit (1Mx16x4 banks)
128 Mbit (4Mx8x4 banks)
128 Mbit (2Mx16x4 banks)
256 Mbit (8Mx8x4 banks)
256 Mbit (4Mx16x4 banks)
512 Mbit (16Mx8x4 banks)
512 Mbit (8Mx16x4 banks)
