8S661FXME-RZ Motherboard
English

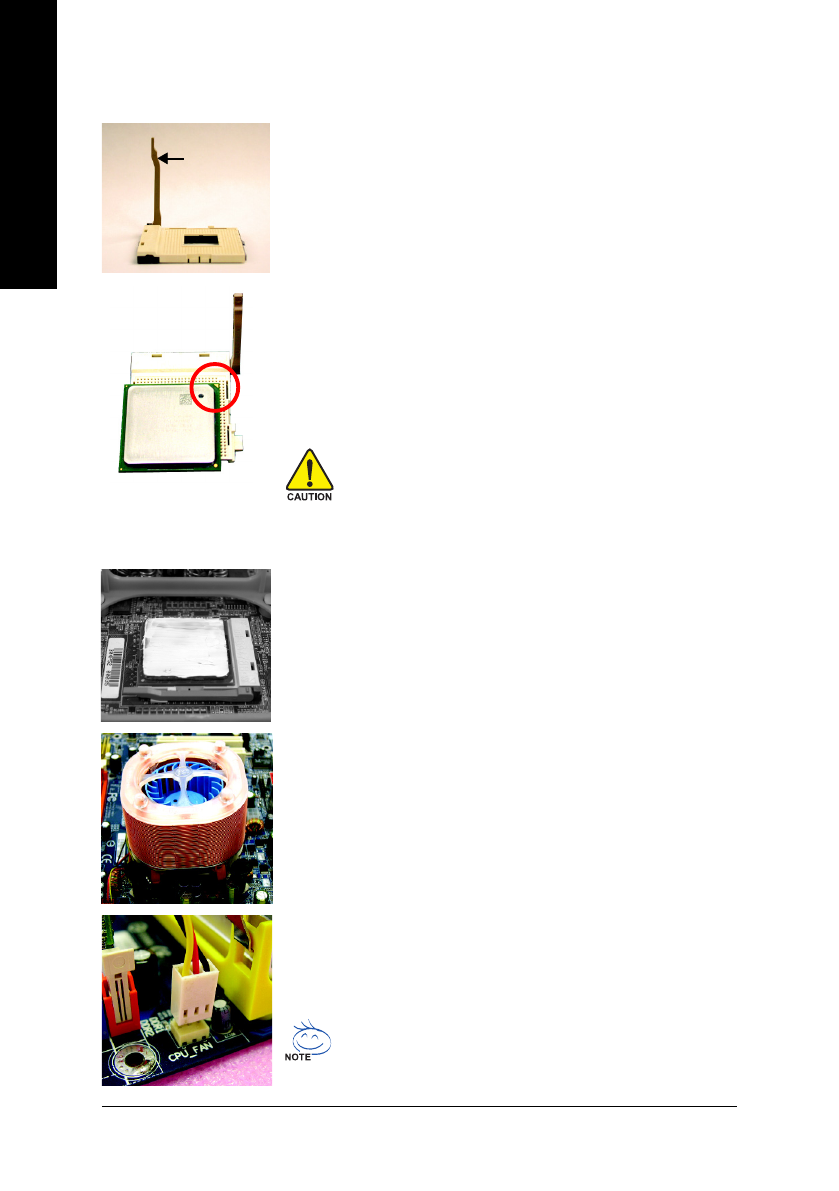

Step 1-1: Installation of the CPU
Fig. 1
Position lever at a 90 degree angle.
Fig. 2
A gold-colored triangle is marked one edge of the CPU. Please align
this edge with the socket edge closest to the CPU lever. Gently place
the CPU into position making sure that the CPU pins fit perfectly into their
holes. Once the CPU is positioned into it socket, place one finger down
on the middle of the CPU and gently press the metal lever back into its
original position.
Step 1-2: Installation of the Heatsink
Fig.1
Before installing the heat sink, please first add an even layer of heat sink
paste on the surface of the CPU.
Fig.2
Install all the heat sink components (Please refer to the heat sink manual
for detailed installation instructions).
Fig.3
Please connect the heat sink power connector to the CPU_FAN con-
nector located on the motherboard so that the heat sink can properly
function to prevent CPU overheating.
Socket lever
Please use extra care when installing the CPU. The CPU will not fit if positioned
incorrectly. Rather than applying force, please change the positioning of the
CPU.
The heat sink may adhere to the CPU as a result of hardening of the heat sink
paste. To prevent such an occurrence, it is suggested that either thermal tape
rather than heat sink paste be used for heat dissipation or using extreme care
when removing the heat sink.
