Installation/Connection

Installation/Connection

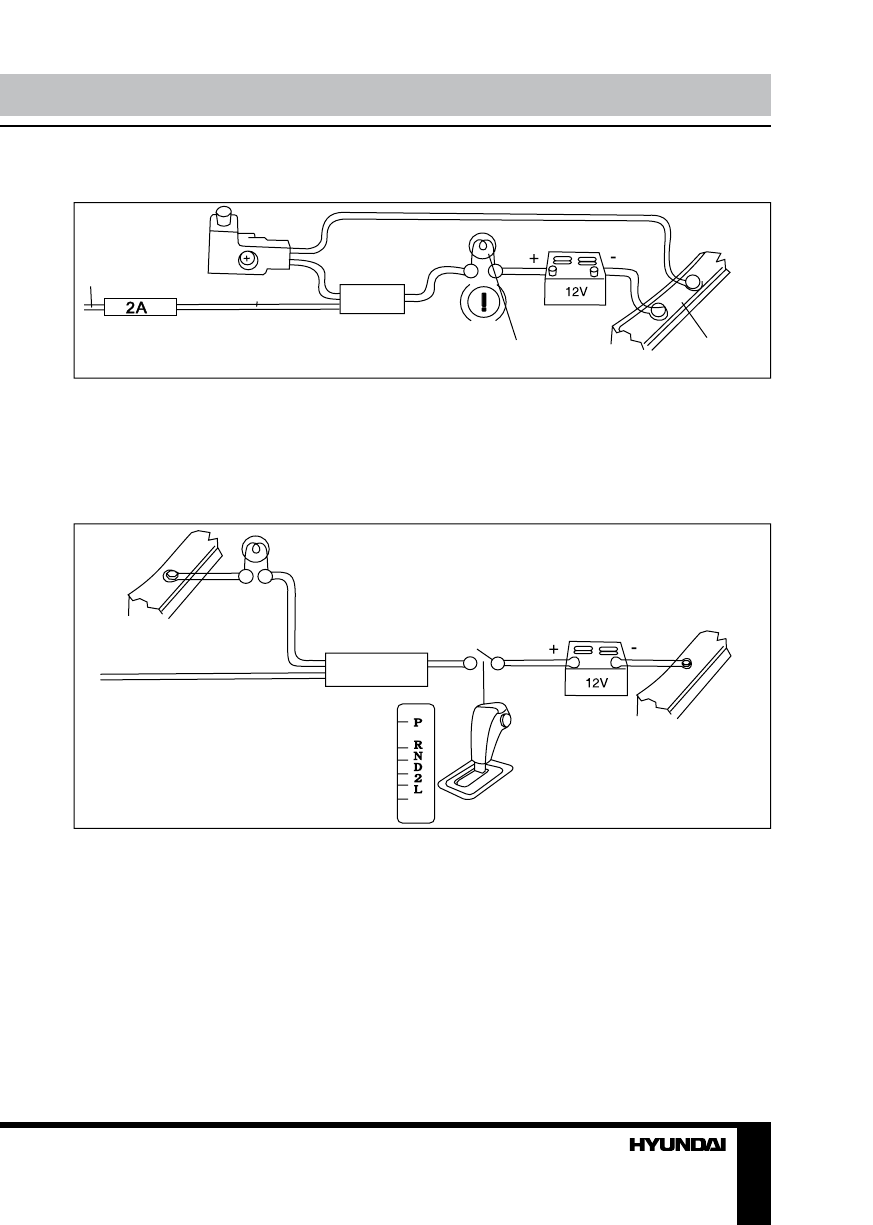

Parking wire connection

Parking brake lead

Brake light

Car frame

Battery

Brown Wire

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be

controlled by driving status, system setup and input video sources. When the car is moving ahead,
if the video disc is played, the screen shows a warning message. The warning screen will prevent
the driver from watching images.

Reverse driving cable connection

Car frame

Car frame

Rear view video camera lead

Reverse driving light

Gearbox

Pink wire

Battery

If the rear view video camera is connected, the unit automatically switches to CAMERA source

during reverse driving. The unit returns to the original work mode after the reverse driving is done.

Key (1/2) wire and Ground wire connection

These wires are intended for connecting to the Steering Wheel Controller (if available in the

vehicle). For more details of the connection see the user instruction manual supplied with your
vehicle.

Illumination wire

The illumination wire should be connected to parking lights of the vehicle. The button

illumination (backilght) is possible only when the parking lights are switched on.
