5

Installation/Connection

Installation

General notes

•   Choose the mounting location where the

unit will not interfere with the normal driving
function of the driver.

•   Before finally installing the unit, connect

the wiring and make sure that the unit works
properly.

•   Consult with your nearest dealer if

installation requires the drilling of holes or other
modifications of the vehicle.

•   Install the unit where it does not get in the

driver’s way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.

•   If installation angle exceeds 35° from

horizontal, the unit may not perform properly.

•   Avoid installing the unit where it would

be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater,
or where it would be subject to dust, dirt or
excessive vibration.

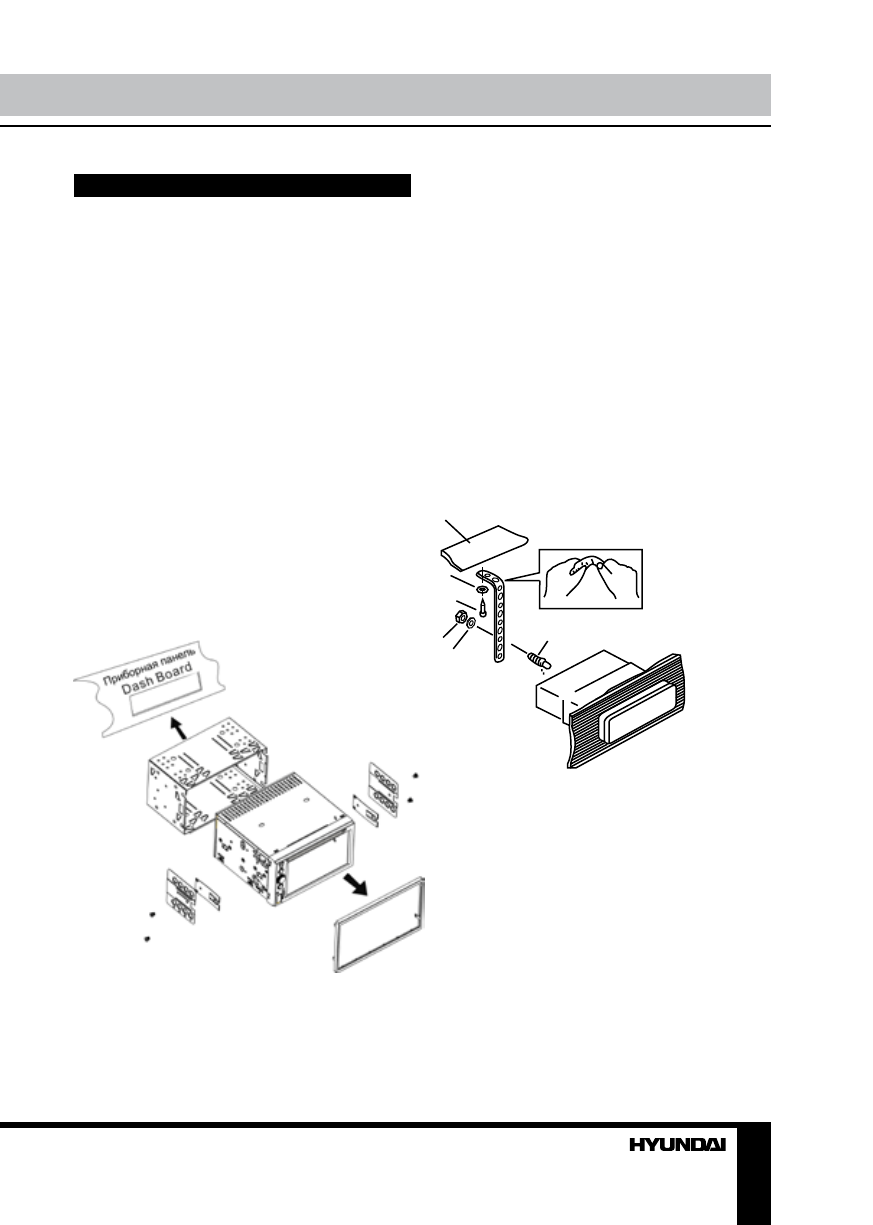

Mounting with sleeve

•   Fix the spring plates to both sides of the

unit with the help of the mounting brackets.
Select the correct positioning of the bracket
and fix it to the unit casing with 2 screws (5*6)
on each side.

•   Install the mounting sleeve into the

dashboard; ensure it is installed with the
correct side and there are no obstacles (wires,
dashboard elements, etc) for the unit installation.

•   After installing the sleeve into the

dashboard, bend tabs fitting to the size of the
dashboard to fix the sleeve in place.

•   Use the metal strap to fix the rear side of

the unit. Determine a place for fixing and install
the strap as shown in the picture. You can bend
the strap to the needed angle with your hands.

2

4

3

5

6

1

1. Car dashboard
2. Bolt
3. Nut (5 mm)
4. Spring washer
5. Screw (4*6)
6. Flat washer

•   Make the necessary wire connections.

Ensure the connections are correct.

•   Install the unit into the sleeve. Put the trim

ring on the unit.
