4 Putting into operation

4.1 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

q

Torx 25

q

Torx 15

q

Screwdriver

q

Cordless screwdriver, if necessary

q

Second person for fitting work, if needed

4.1.1 Detaching the upper door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

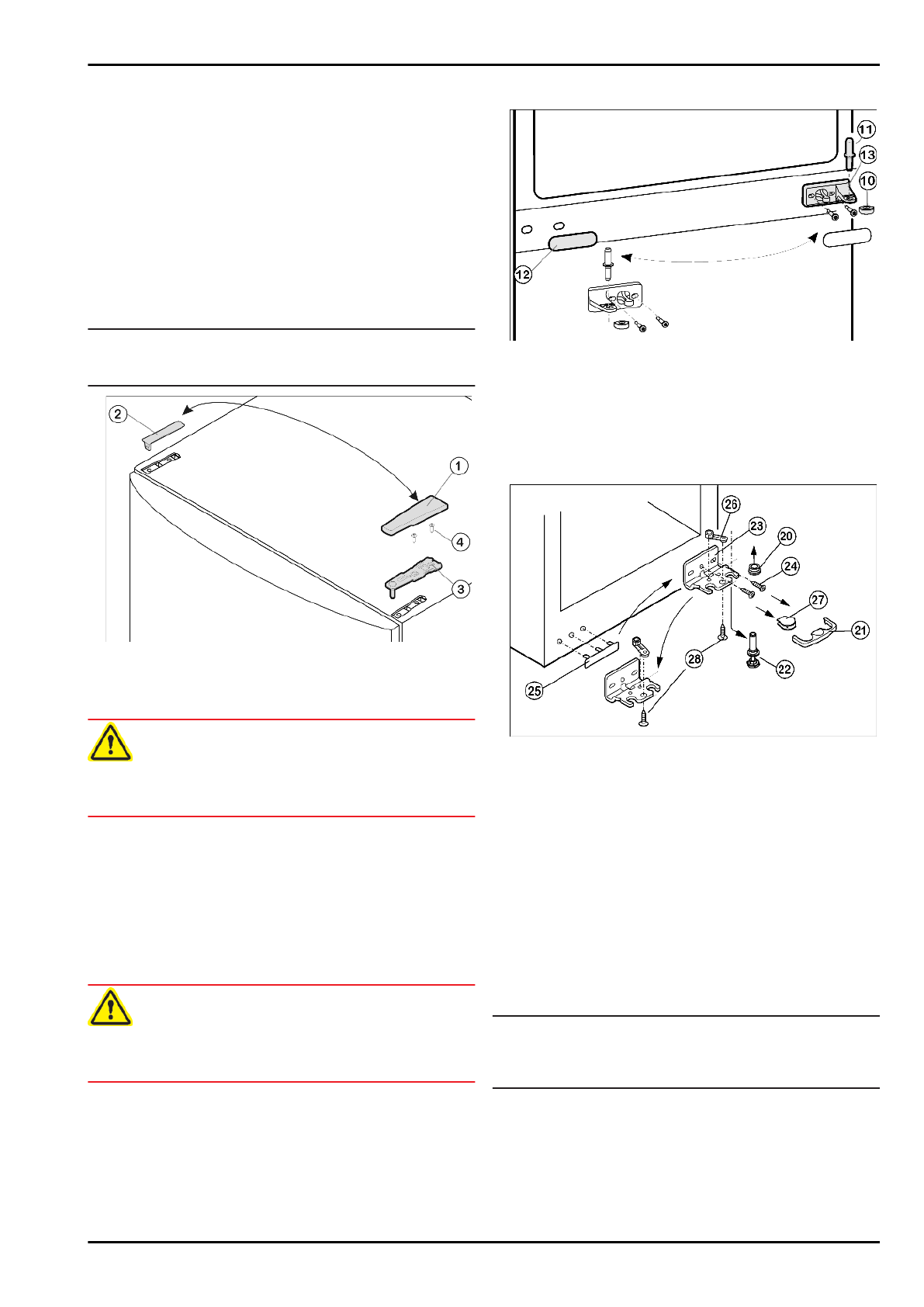

Fig. 4

u

Close the upper door.

u

Pull  off  the  cover

  Fig.  4  (1)  forwards  and  remove  cover

Fig. 4 (2).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Unscrew the upper turn hinge

 Fig. 4 (3)(2 Torx 25) Fig. 4 (4)

and raise it for removal.

u

Lift up the upper door and set it aside.

4.1.2 Detaching the lower door

u

Close the lower door.

u

Remove the plastic cap

 Fig. 5 (10).

u

Draw the middle bearing pin

 Fig. 5 (11) out of the turn hinge

and lower door.

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Lift up the door and set it aside.

4.1.3 Transferring the middle bearing elements

Fig. 5

u

Carefully detach the cover panel

 Fig. 5 (12).

u

Unscrew  the  middle  turn  hinge

  Fig.  5  (13),  turn  it  180°  and

transfer it to the new hinge side.

u

Turn the cover panel

 Fig. 5 (12) 180° and snap it into place on

the new handle side.

4.1.4 Transferring the lower bearing elements

Fig. 6

u

Draw the safety lock

 Fig. 6 (21) forwards for removal.

u

Remove the cover

 Fig. 6 (27).*

u

Turn the adjustable-height foot

 Fig. 6 (22) all the way in.

u

If necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 6 (22) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 6 (20).

u

Unscrew the turn hinge

 Fig. 6 (23)(2 Torx 25) Fig. 6 (24).

u

Unscrew  the  bearing  part

  Fig.  6  (26)(1  Torx  25)  Fig.  6  (28),

transfer it to the opposite hole in the turn hinge and screw it

down again.

u

Carefully lift off and transfer the cover

 Fig. 6 (25) on the handle

side.

u

Screw down the turn hinge

 Fig. 6 (23) on the new hinge side,

possibly  with  the  aid  of  a  cordless  screwdriver,  through  the

outer oblong hole and round hole.

Note

u

If necessary, e.g. to make up for any unevenness in the floor,

the second oblong hole can be used instead of the round hole

for the screw fitting.
