u

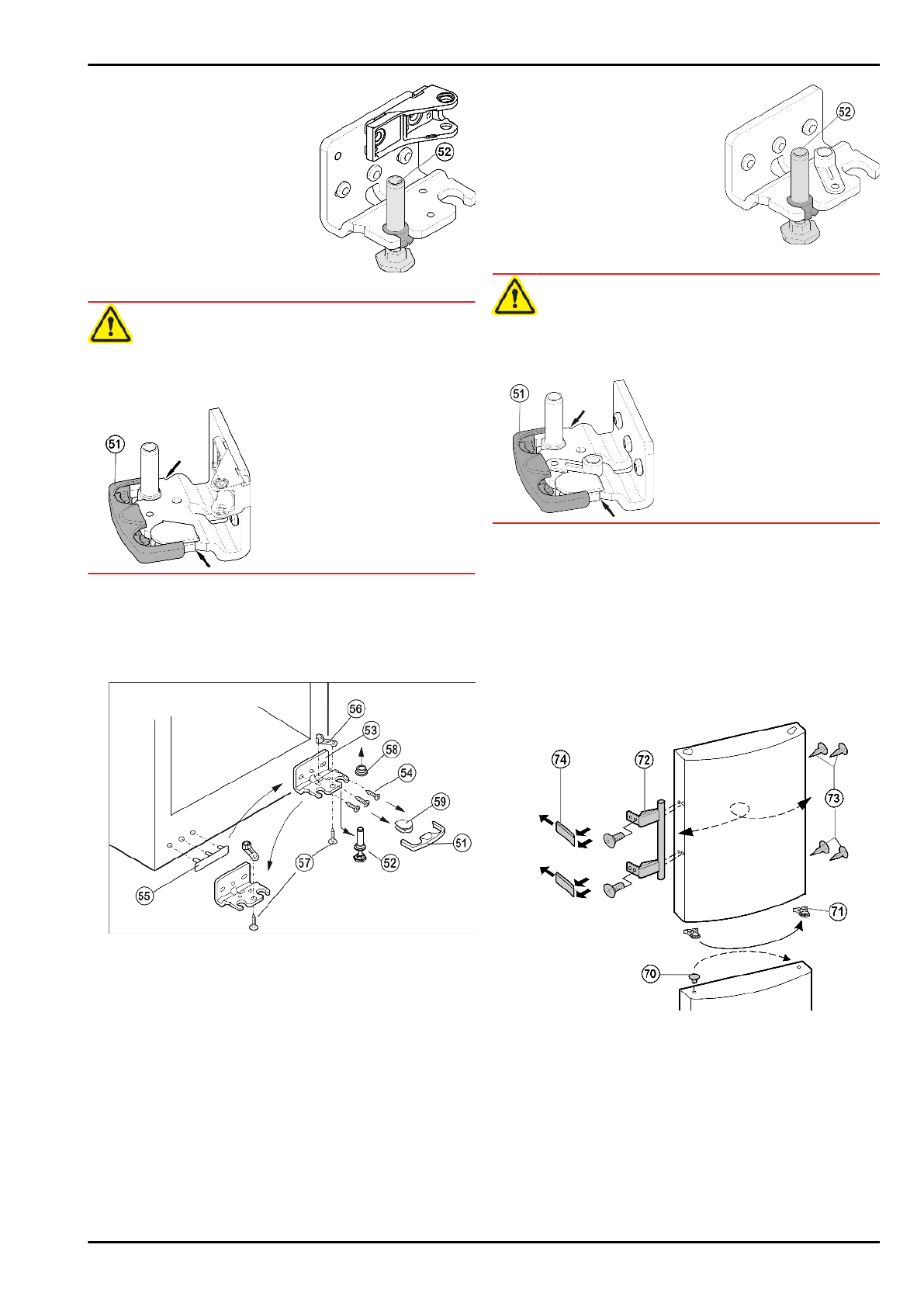

Tip  the  appliance  back  a

little again and re-insert the

bearing pin

 Fig. 15 (52). The

notch has to point forwards.

u

Place

the

cover

Fig. 14 (57) on the opposite

side.*

Fig. 15

CAUTION

Risk of injury if the door tips!

u

The safety lock

 (51) has to engage with the turn hinge at the

side  so  that  the  bearing  pin  and  therefore  the  door  are

secured.

u

u

Snap the safety lock

 (51) onto the turn hinge again.

u

Put on the hinge bush

 Fig. 14 (50).

4.1.8 Transferring lower bearing parts for appli-

ances without soft stop mechanism

Fig. 16

u

Draw the safety lock

 Fig. 16 (51) forwards for removal.

u

Remove the cover

 Fig. 16 (59).*

u

Fully retract the adjustable-height foot

 Fig. 16 (52).

u

If necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 16 (52) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 16 (58).

u

Unscrew the turn hinge

 Fig. 16 (53)(3 x Torx 25) Fig. 16 (54).

u

Unscrew the bearing part

 Fig. 16 (56)(1 Torx 25) Fig. 16 (57),

transfer it to the opposite hole in the turn hinge and screw it

down again.

u

Carefully  lift  off  and  transfer  the  cover

  Fig.  16  (55)  on  the

handle side.

u

Screw the turn hinge

 Fig. 16 (53) firmly into place on the new

hinge  side,  possibly  using  a  cordless  screwdriver  (with

4 Nm).

u

Tip  the  appliance  back  a

little  again  and  re-insert  the

bearing pin

 Fig. 17 (52). The

notch has to point forwards.

u

Place the cover

 Fig. 16 (59)

on the opposite side.*

Fig. 17

CAUTION

Risk of injury if the door tips!

u

The safety lock

 (51) has to engage with the turn hinge at the

side  so  that  the  bearing  pin  and  therefore  the  door  are

secured.

u

u

Snap the safety lock

 (51) onto the turn hinge again.

u

Put on the hinge bush

 Fig. 16 (58).

4.1.9 Transferring the handles

without soft stop mechanism.

u

Disengage the spring clip

 Fig. 18 (71) from the upper door and

transfer it to the new hinge side.

all appliances:

u

Lift the stopper

 Fig. 18 (70) out of the lower door bearing bush

and transfer it.

Fig. 18

u

Detach  the  door  handles

  Fig.  18  (72),  stoppers  Fig.  18  (73)

and pressure plates

 Fig. 18 (74) and transfer to the opposite

side.

u

When  fitting  the  pressure  plates  at  the  opposite  side,  pay

attention that they engage properly.

4.1.10 Fitting the lower door

u

Place the door from above onto the bearing pin

 Fig. 14 (52).

u

Close the door.

u

Place  the  plastic  cap

  Fig.  13  (40)  back  onto  the  middle  turn

hinge

 Fig. 13 (42).
