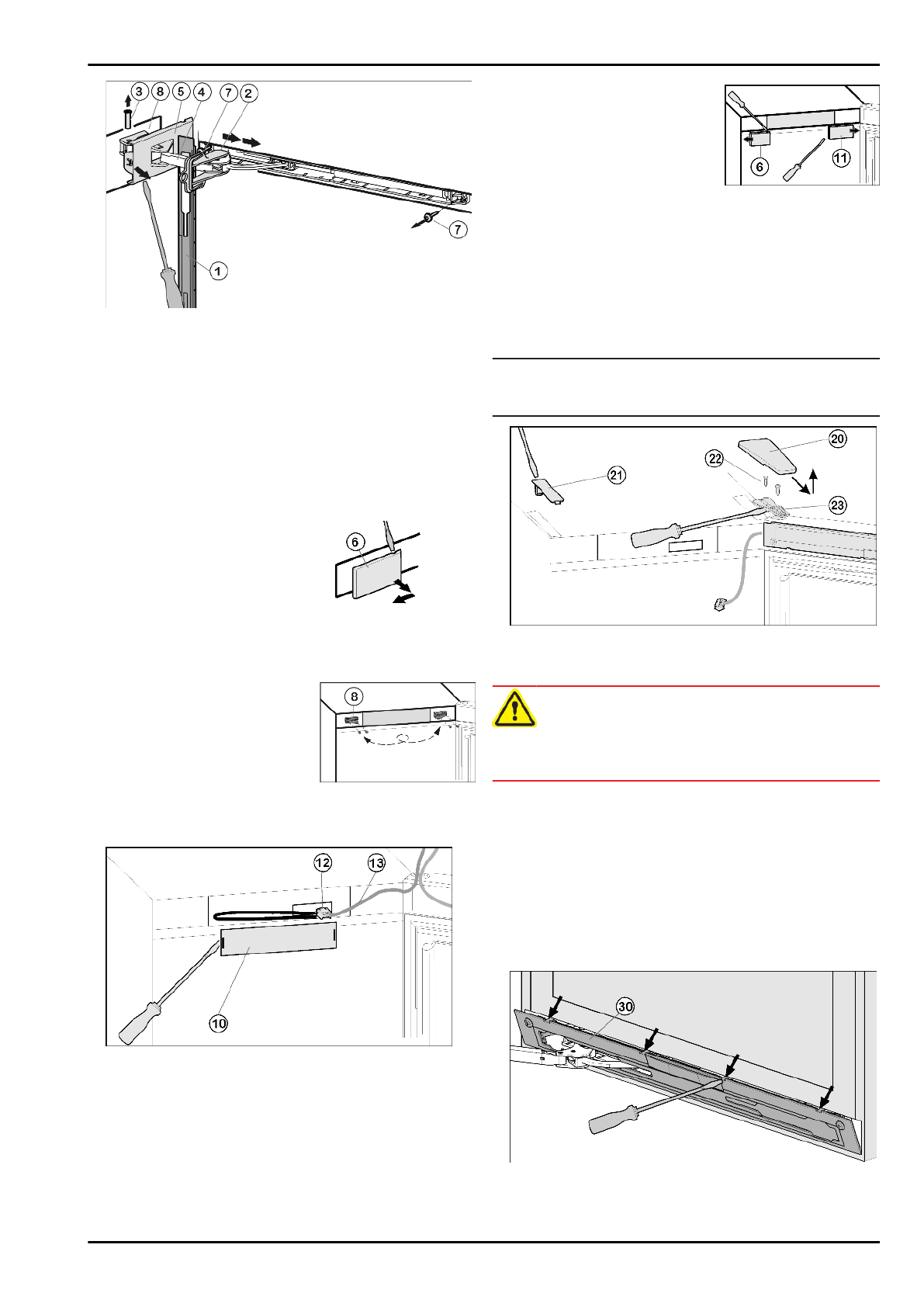

Fig. 5

u

Slide the faceplate over the soft stop bracket

 Fig. 5 (4) in the

direction of the appliance.

u

Snap the safety lock

 Fig. 5 (2) into the oblong hole.

w

The safety lock prevents the hinge from snap-closing.

u

Using  a  screwdriver,  detach  the  cover  on  the  hinge  side

Fig. 5 (5) as far as the first detent.

w

The pin becomes visible.

u

Press the pin

 Fig. 5 (3) out from underneath.

u

Press the soft stop bracket

 Fig. 5 (4) towards the door.

u

Fully detach the cover on the hinge side

 Fig. 5 (5) and remove

it.

u

Remove the faceplate

 Fig. 5 (1).

u

Using  a  screwdriver,  detach  the

cover

 Fig. 6 (6) on the handle side

and remove it outwards.

Fig. 6

u

Unscrew the soft stop unit (2 Torx 15)

 Fig. 5 (7).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

u

Unscrew

the

bearing

element

 Fig. 7 (8), turn it 180°

and transfer it to the opposite

side.  Possibly  make  prelimi-

nary holes with a bradawl or

use a cordless screwdriver.

Fig. 7

4.1.2 Undo the cable connection on the housing.

Fig. 8

u

Open the upper door, if necessary.

without soft stop mechanism.

u

To  remove  the  cover  on  the

handle  side

  Fig.  9  (6):  disen-

gage  on  the  right  using  a  flat-

blade  screwdriver  and  slide  it

outwards.

u

To  remove  the  cover  on  the

hinge  side

  Fig.  9  (11):  disen-

gage  on  the  left  using  a  flat-

blade  screwdriver  and  slide  it

outwards.

Fig. 9

all appliances:

u

Remove the front panel

 Fig. 8 (10) using a flat-blade screw-

driver.

u

Remove contact and disconnect plug connector

 Fig. 8 (12).

u

Detach grey cable

 Fig. 8 (13) from the guide.

4.1.3 Detaching the upper door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

Fig. 10

u

Pull off the cover

 Fig. 10 (20) forwards and upwards.

u

Lift off the cover

 Fig. 10 (21).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Undo the screws

 Fig. 10 (22) all the way.

u

Lift  and  remove  the  door  complete  with  turn  hinge

Fig. 10 (23) and cable. For release, possibly use a flat-blade

screwdriver to apply lever action under the turn hinge.

u

Set the door aside.

4.1.4 Detaching the lower soft stop mechanism

For appliances with soft stop mechanism.
For  appliances  without  soft  stop  mechanism  continue  with:

(see 4.1.5) .

Fig. 11

u

Open the lower door.
