NOTICE

Risk of damage!

If the door seal is damaged, the door may fail to close properly

and the cooling will be inadequate.

u

Do not damage the door seal with the screwdriver!

u

Disengage and remove the faceplate

 Fig. 11 (30) using a flat-

blade screwdriver.

w

The faceplate is attached over the soft stop bracket.

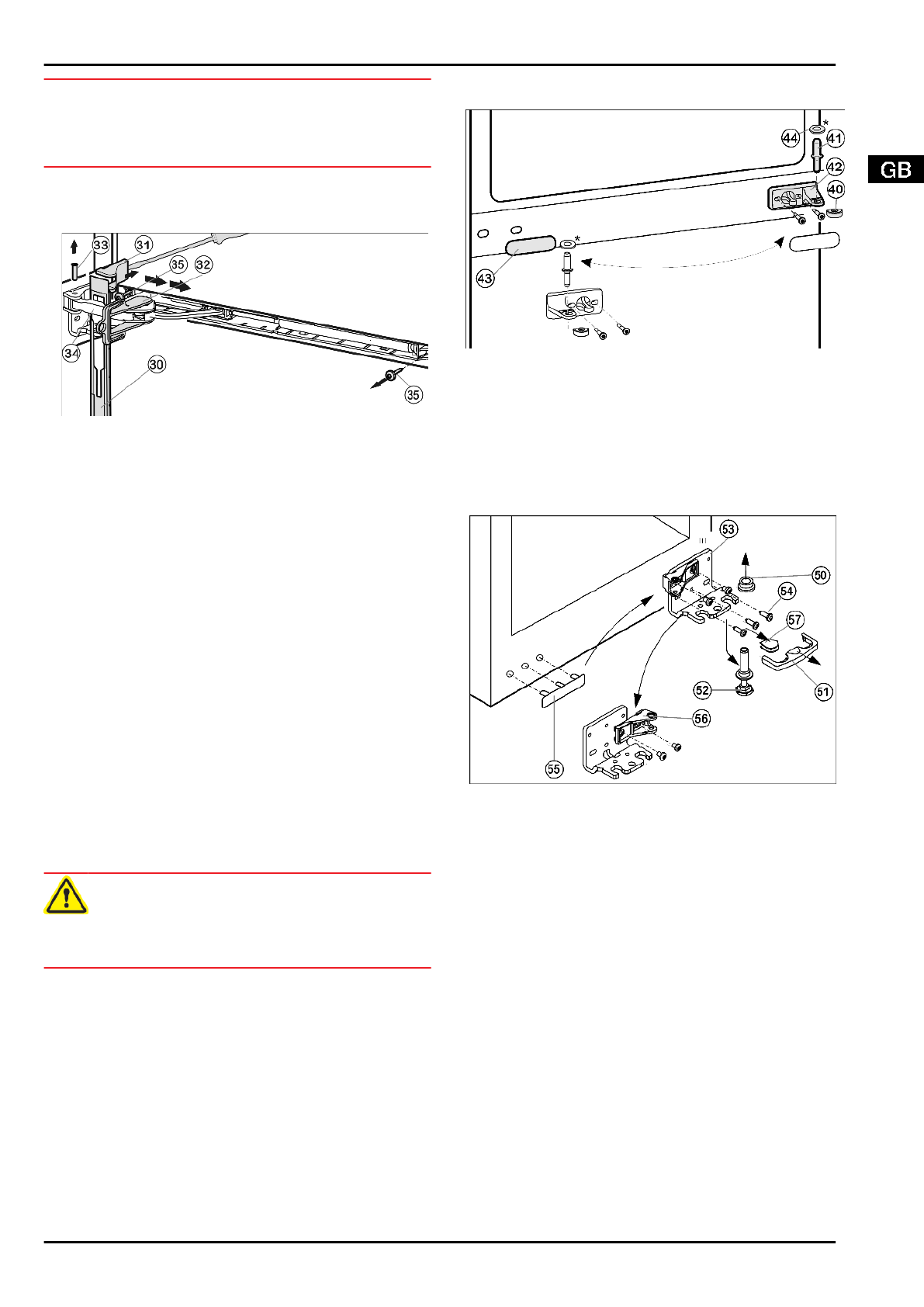

Fig. 12

u

Slide  the  faceplate  forwards  over  the  soft  stop  bracket

Fig. 12 (34) in the direction of the appliance.

u

Snap the safety lock

 Fig. 12 (32) into the oblong hole

w

The safety lock prevents the hinge from snap-closing.

u

Using  a  screwdriver,  lift  off  the  cover

  Fig.  12  (31)  from  the

outside and remove it in an outward direction.

u

If necessary, tip the appliance backwards with the assistance

of a second person.

u

Press the pin

 Fig. 12 (33) out from underneath.

u

Press the soft stop bracket

 Fig. 12 (34) towards the door.

u

Remove the faceplate

 Fig. 12 (30).

u

Unscrew the soft stop unit (2 Torx 15)

 Fig. 12 (35).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

4.1.5 Detaching the lower door

u

Close the lower door.

without soft stop mechanism.

u

Draw the middle bearing pin

 Fig. 13 (41) out of the turn hinge

and lower door.

with soft stop mechanism.

u

Draw  the  middle  bearing  pin

  Fig.  13  (41)  together  with  the

washer

 Fig. 13 (44) out of the turn hinge and lower door.

all appliances:

u

Remove the plastic cap

 Fig. 13 (40).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the lower door.

u

Detach the middle turn hinge

 Fig. 13 (42).

u

Lift off the lower door and set it aside.

4.1.6 Transferring the middle bearing elements

Fig. 13

u

Carefully detach the cover panel

 Fig. 13 (43).

u

Turn the middle turn hinge

 Fig. 13 (42) through 180° and screw

it firmly into place on the new hinge side (with 4 Nm).

u

Turn the cover panel

 Fig. 13 (43) through 180° and snap it into

place again on the new handle side.

4.1.7 Transferring lower bearing parts for appli-

ances with soft stop mechanism

Fig. 14

u

Draw the safety lock

 Fig. 14 (51) forwards for removal.

u

Remove the cover

 Fig. 14 (57).*

u

Fully retract the adjustable-height foot

 Fig. 14 (52).

u

If necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 14 (52) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 14 (50).

u

Unscrew the turn hinge

 Fig. 14 (53)(3 Torx 25) Fig. 14 (54).

u

Carefully  lift  off  and  transfer  the  cover  on  the  handle  side

Fig. 14 (55).

u

Screw the turn hinge

 Fig. 14 (53) firmly into place on the new

hinge  side,  possibly  using  a  cordless  screwdriver  (with

4 Nm).

u

Unscrew the bearing part,

 Fig. 14 (56), turn it 180° and screw

it down again.

Putting into operation
