EN - 3

 IMPORTANT

The machine must be used by one operator.

2.1.  MACHINE COMPONENTS

(Fig. 1)

A.

Chassis

B.

Engine

C.

Cutting means

D.

Side discharge chute (if provided)

E.

Side discharge guard (if provided)

F.

Handle

G.

Operator presence lever

H.

Drive lever (if provided):

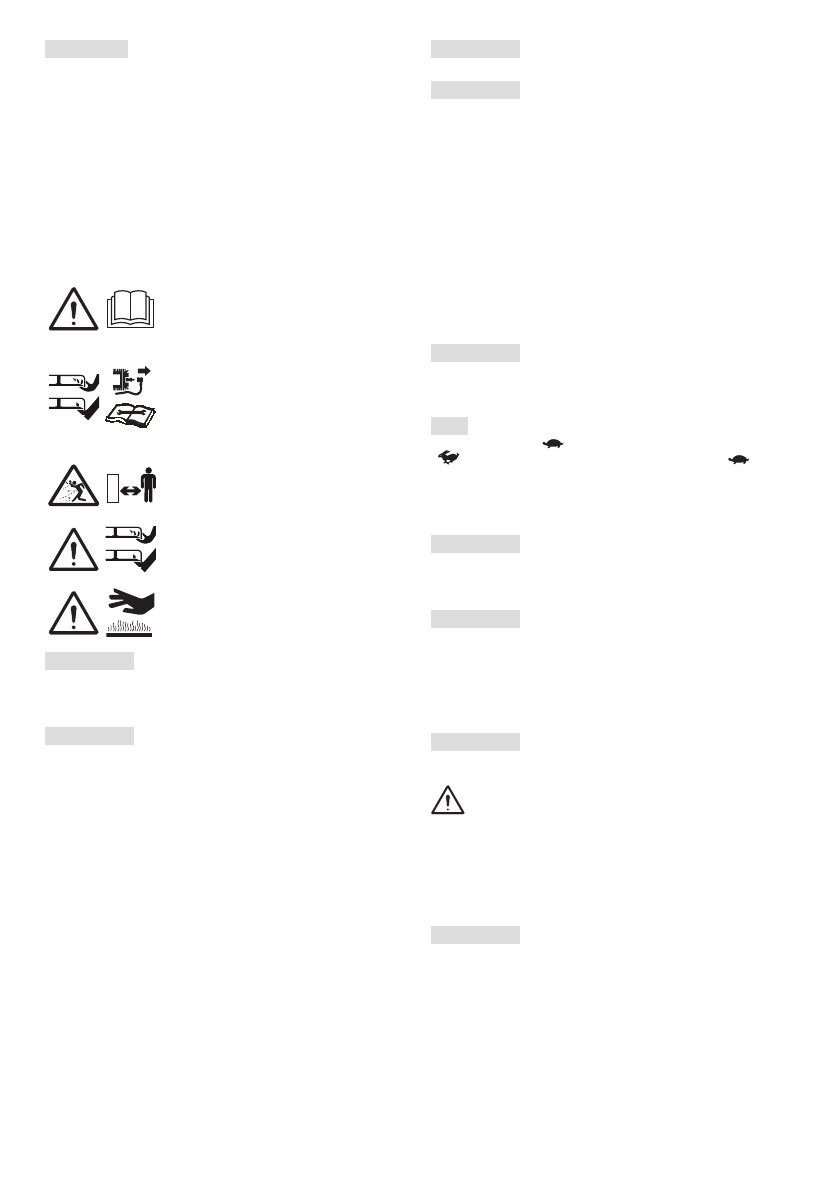

2.2.  SAFETY SIGNS

WARNING:

Read the instructions before operating 

the machine.
CAUTION:

Do not put hands or feet near or under 

the  opening  of  the  cutting  means. 

Disconnect the spark plug cap and read 

the instructions before carrying out any 

maintenance or repairs.

DANGER! Risk of thrown objects. Keep 

all  persons  away  from  the  work  area 

whilst working.
DANGER!  Danger  of  cutting  yourself. 

Cutting  means  in  motion.  Do  not  put 

hands or feet near or under the opening 

of the cutting means.
WARNING:

Hot surfaces

 IMPORTANT

  Damaged or illegible labels must be replaced.

Order replacement decals from an authorised service centre.

3.

ASSEMBLY

 IMPORTANT

  Unpacking  and  assembly  must  be  carried  out

on a flat, solid surface with sufficient space to move the machine

and the packaging.

1.

 Unpacking (Fig. 2).

2.

 Assembling and adjusting the handle (Fig. 3).

4.

CONTROLS

•  Starter control

 -

Type I: Manual starter hand grip (Fig. 4). Enables manual 

starting of the engine

 -

Type  II:  Push-button  electric  starter  control  (Fig.  5). 

Enables electrical starting of the engine

•

Operator presence lever

This lever is used to engage the cutting device and the drive. 

The engine stops when the lever is released (Fig. 6).

•

Drive lever (if provided):

This  engages  the  wheel  drive  and  allows  the  machine  to 

move forward (Fig. 7).

 IMPORTANT

  The  engine  must  always  be  running  with  the

drive disengaged.

 IMPORTANT

  To prevent damage to the transmission, do not

pull the machine backwards with the drive engaged.

•

Throttle (if provided)

The  throttle  changes  the  engine  revs  and  the  speed  of  the 

cutting device.

The throttle is controlled by the lever (Fig. 8).

Lever positions are indicated on the relevant plate.

Some  models  have  a  fixed  speed  engine  with  no  need  for 

a throttle.

•

Converter control lever (if fitted).

In the models with drive systems, the converter control lever 

(if fitted) allows the operator to regulate forward gear speed.

The adjustment is done by moving the lever (Fig. 9) as per 

the instructions shown near the lever.

 IMPORTANT

 The engine must be running and the drive en-

gaged when switching from one speed to another.

Do not touch the converter control when the engine is off. Doing

this could damage the converter.

NOTE

  If  the  machine  does  not  move  forward  with

the lever in the «

»,  position,  simply  move  the  lever  to

«

» and then immediately return to the  position «

».

•

Cutting height adjustment

By  lowering  or  raising  the  chassis  the  grass  can  be  cut  at 

different heights. (Fig. 10)

 IMPORTANT

  This  operation  must  be  carried  out  when  the

cutting device is stationary.

5.

USING THE MACHINE

 IMPORTANT

  For instructions regarding the engine and the

battery (if supplied), read the relevant manuals.

5.1.  PRELIMINARY PROCEDURES

Place the machine in a stable horizontal position on the ground.

•

Filling up with oil and fuel

 IMPORTANT

  The  machine  is  supplied  without  engine  oil  or

fuel.

Refuelling  shall  take  place  with  the  machine

sw i t c h e d   o f f   a n d   t h e   s p a r k   p l u g   c a b l e

disconnected.

Proceed  to  refuel  and  check/top-up  engine  oil  according 

to  the  procedures  and  precautions  outlined  in  the  engine 

instruction manual.

•

Preparing the machine before starting work

 IMPORTANT

  Carry  out  this  operation  with  the  cutting  de

-

vice stationary.

With this machine, it is possible to mow the lawn in several ways:

•

Setting up for cutting and shredding the grass ('mulching' 

function) (Fig. 11).

•

Setting  up  for  cutting  and  lateral  grass  discharge  onto 

the ground (Fig. 12).
