The hood must be connected to the mains supply by qualified and trained
technicians.
The mains power supply must correspond to the rating indicated on the plate
situated inside the hood. If provided with a plug connect the hood to a socket
in compliance with current regulations and positioned in an accessible area,
after installation. If it not fitted with a plug (direct mains connection) or if the
plug is not located in an accessible area, after installation,  apply a double
pole switch in accordance with standards which assures the complete
disconnection of the mains under conditions relating to over-current category
III, in accordance with installation instructions.

Warning!

 Before re-connecting the hood circuit to the mains supply and

checking the efficient function, always check that the mains cable is correctly
assembled.


Hood Calibration

After the hood has been installed, the aspiration panel must be calibrated.
This operation is necessary to regulate the power exstraction of the
aspiration panel.

Pushing the ON/1 "

B

" the aspiration panel rises. After it has reached a

height of 18 cm from the cooktop, press OFF "

A

", to stop the extraction then

the Timer "

F"

 and after sec. the OFF button "

A

".

The hood will carry out the calibration of its aspiration panel rising and
retracting for some centimeters.
During this phase, the buttons on the pushbutton control panel blink.

Operation

Use the high suction speed in cases of concentrated kitchen vapours.  It is
recommended that the cooker hood suction is switched on for 5 minutes
prior to cooking and to leave in operation during cooking and for another 15
minutes approximately after terminating cooking.

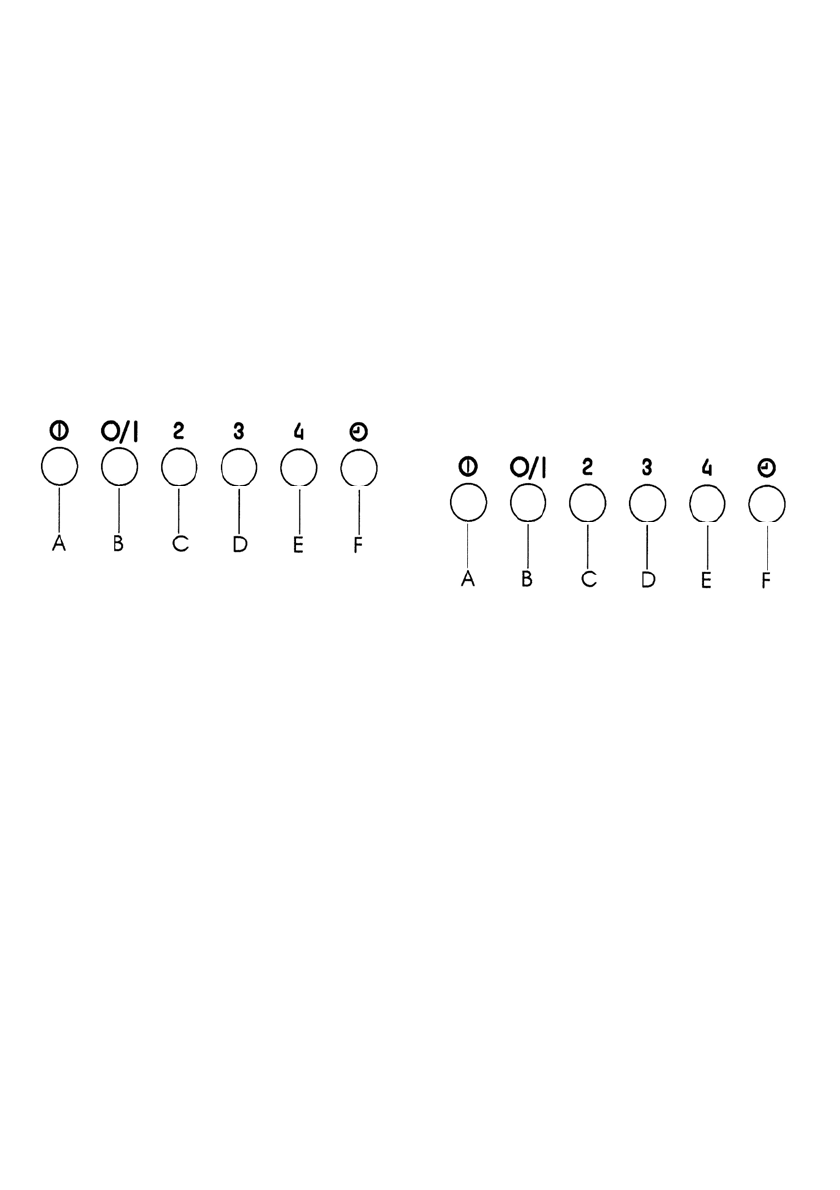

Control Panel
A.  Panel closing button / OFF

This button allows to close the panel completely or to stop the truck at
an intermediate position between 18 and 20cm from the hob.

The hood turns off automatically when the distance of the panel from
the hob, closing again, becomes lower than 18cm.

B.  Extraction panel up ON/Speed 1

This serves to bring the extraction panel up to a maximum height of 30
cm and to automatically set the first extraction speed when the panel
reaches a height of 18 cm. Pressing the button when this height is
reached makes it possible to place the extraction panel in the required
intermediate positions, up to a maximum of 30 cm, while leaving the
extraction speed of the motor unchanged.

C.  Speed 2 switch
D.  Speed 3 switch
E.

Speed 4 switch

F. 10-minute

timer

This is used to switch off the extraction system automatically as well
as to close the extraction panel 10 minutes after it has been enabled.

Maintenance
ATTENTION!

Before performing any maintenance operation, isolate the

hood from the electrical supply by switching off at the connector and
removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the
plug must be removed from the socket.
The cooker hood should be cleaned regularly (at least with the same
frequency with which you carry out maintenance of the fat filters) internally
and externally.  Clean using the cloth dampened with neutral liquid
detergent. Do not use abrasive products.

DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the

cooker hood and replacement of the filters may cause fire risks.
Therefore, we recommend oserving these instructions.
The manufacturer declines all responsibility for any damage to the motor or
any fire damage linked to inappropriate maintenance or failure to observe
the above safety recommendations.

Grease filter
Fig. 10-11
The grease filter

 must be cleaned once a month using non aggressive

detergents, either by hand or in the dishwasher, which must be set to a low
temperature and a short cycle.  When washed in a dishwasher, the grease
filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal filter (filter version only)
Fig. 10-11-12

The saturation of the charcoal filter occurs after more or less prolonged use,
depending on the type of cooking and the regularity of cleaning of the grease
filter.
In any case it is necessary to replace the cartridge at least every four
mounths.
The charcoal filter may NOT be washed or regenerated.
