Installation

these instructions are aimed at qualified fitters as a guide to installation,
adjustment and maintenance in compliance with the laws and standards
in force. The operations must always be carried out with the appliance
disconnected from the electricity supply.

Positioning (Fig. 6-7-8)

The appliance is made to be fitted into a counter top, as show in the
figure. Apply the sealant supplied around the whole perimeter of the hob.
Installation over an oven is not recommended, but if this is necessary,
check that:

-  the oven has an efficient cooling system;
-  there is no passage of hot air from the oven to the hob;
-  allow air passages as shown in the figure.

Electrical connection (Fig. 9)

Before connecting to the electricity supply, ensure that:

-  the characteristics of the system are such as to satisfy that indicated

on the registration plate applied to the bottom of the hob;

-  the system has an effective earth connection compliant with the

standards and laws in force. Connection to earth is compulsory by
law.

If the appliance has no cable and/or plug, use material suitable for
the absorption indicated on the registration plate and for the working

temperature. The cable must not reach a temperature higher than 50°C
above room temperature in any point.
For direct connection to the network it is necessary to fit an omnipolar
switch of a suitable size to ensure disconnection of he network with a
contact opening distance that allows complete disconnection in the
conditions of the overtension category III, compliant with the installation
regulations (the yellow/green earth wire must not be interrupted).
The omnipolar socket or switch must be easy to reach when the
appliance is installed.
N.B.:

-  The manufacturer declines all responsibility if the usual accident

prevention standards and the above instructions are not observed.

If the power cable is damaged, it must be replaced by the manufacturer
or by the manufacturer’s technical servicing network, or by a similarly
qualified operator, to prevent every possible risk.

Installation instructions

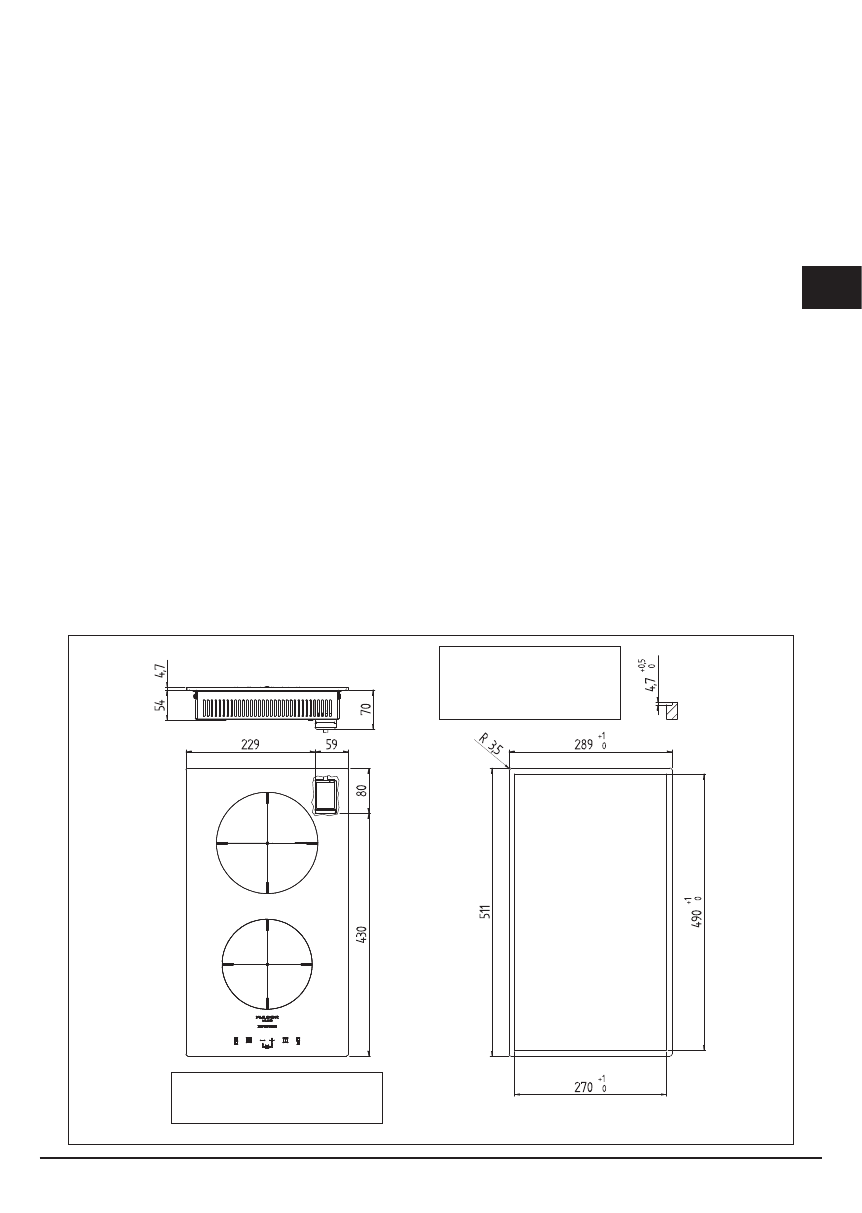

Fig. 6

N.B. For the Semifilo version, it
is not necessary to lower the hob
by 4.7 mm.

N.B. Do not glue or silicone the glass in
the 4.7 mm depression
