1 / INSTALLING YOUR APPLIANCE

CHANGING THE GAS SUPPLY

Warning

Your appliance is sold pre-set for

natural gas.
The injectors required for adapting it to
butane/propane can be found in the plastic
bag containing this guide.

Each time you change the gas supply, you
must complete the following:

—

Adapt the gas connection

—

Change the injectors

—

Adjust the hob connections.

•

A

Ad

da

ap

ptt   tth

he

e   g

ga

as

s   c

co

on

nn

ne

ec

cttiio

on

n

:

Refer to the

“Gas Connection”

section.

•

C

Ch

ha

an

ng

ge

e   tth

he

e   iin

njje

ec

ctto

orrs

s,, proceeding as

follows:

—

Remove the pan supports, heads and

covers from all burners.

—

Using the wrench provided, unscrew the

injectors located under each crucible and
remove them

(Fig. 01).

—

Replace with the corresponding gas

injectors, in compliance with the positioning of
the injectors and the table of gas properties at
the end of this section:

—

First screw them in manually until the

injector locks into place.

—

Apply the wrench to the injector as far as it

will go.

—

Draw a line on the burner plate using a

pencil at the place indicated

(Fig. 02).

—

Turn the wrench clockwise until the line

appears on the other side

(Fig. 03).

Warning

Exceeding this limit may damage the

product.

-

Reposition the burner heads, burner covers

and pan supports on the hob.

•

•

Tip

Each time you change the gas supply,

tick the box corresponding to the new gas
level on the label found in the plastic bag.
Refer to the corresponding “Gas Connection”
section.

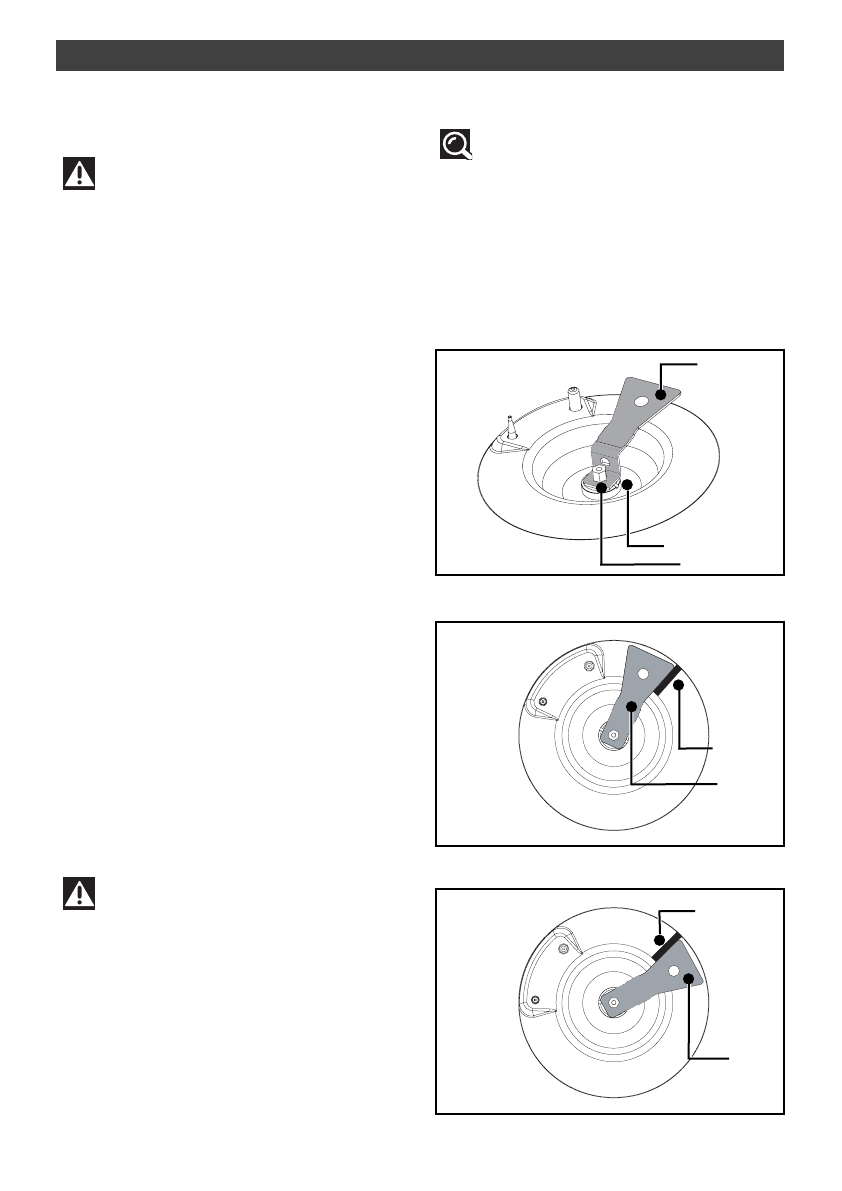

Fig. 02

Fig. 03

Line

Line

Wrench

Wrench

Fig. 01

Wrench

Injector

Crucible
