1 / INSTALLING YOUR APPLIANCE

•

Gas supplied by tank or

cylinder (butane/propane)

For your safety, you must choose from the
three following connection options:

— Connection with a rigid pipe

made from

copper and with screw -on mechanical
connectors (G1/2 gas standard mark). Make
the connection directly to the end of the
elbow fitted on the appliance.

— Connection with a wavy metal hose

(stainless steel)

with screw-on mechanical

connectors (compliant with the NF D 36-125
standard) whose service life is unlimited
(Fig. 01).

— Connection with a reinforced rubber

hose

with screw-on mechanical

connectors

(compliant with the NF D 36-112 standard)
whose service life is 10 years

(Fig. 02).

A

B

Seal (not provided)

Adaptor (not provided)

Clamp (not provided)

C

In an existing system, a soft pipe fitted with
clamps (compliant with the XP D 36-110
standard) whose service life is five years may
be used. It is necessary in this case to use an
adaptor without forgetting to fit a sealing
washer between the adaptor and the hob’s
elbow

(Fig. 03).

Tip

You can obtain the adaptor and the sealing

washer from your After-Sales Service
Department.

Warning

Screw on the adaptor with a torque

not exceeding 25 N.m.

;

;

@

@

;

;

Q

Q

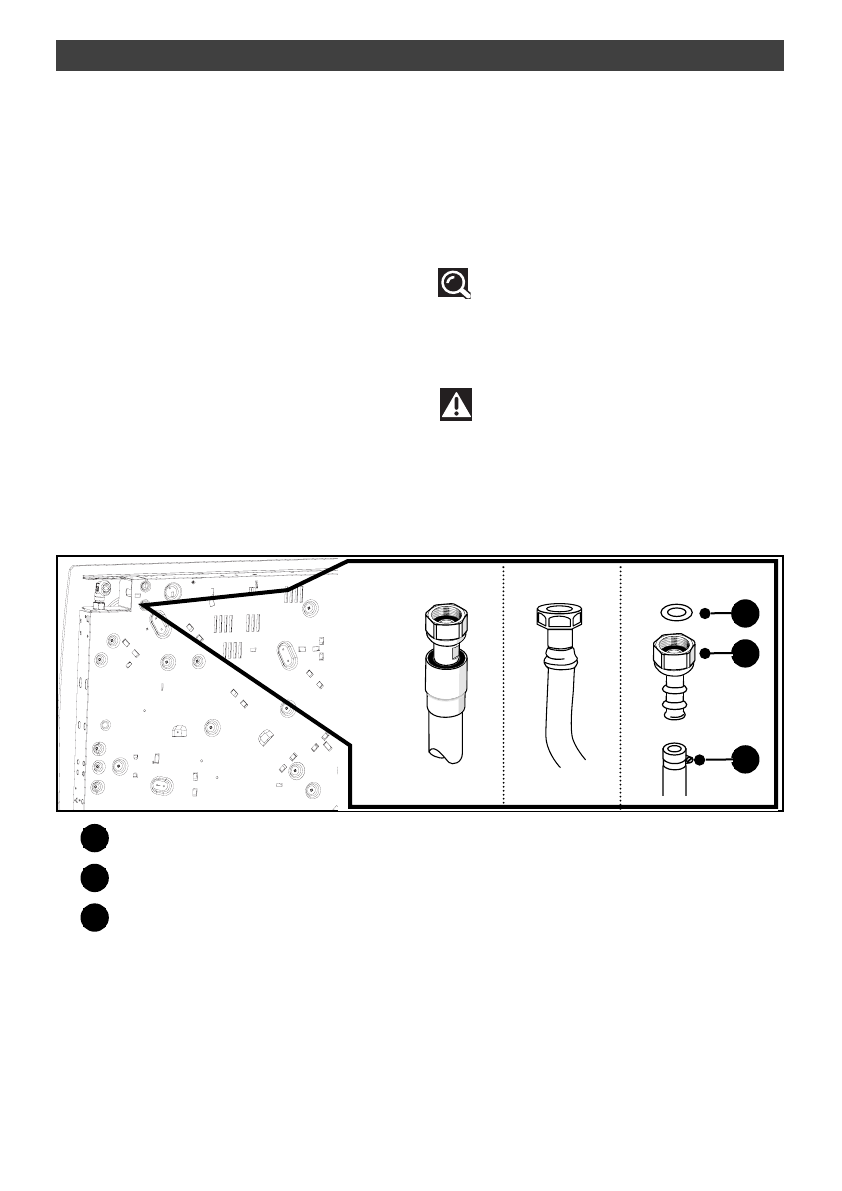

Fig. 01

Fig. 02

Fig. 03

A

B

C
