The gas connection must be installed in
compliance with applicable regulations in the
country of installation.

•

Natural gas supplied by pipe,

propane-air gas or butane-air gas

(depending on model)

For your safety, you must choose from the
three following connection options:

— Connection with a rigid pipe

made from

copper and with screw -on mechanical
connectors (G1/2 gas standard mark). Make
the connection directly to the end of the
elbow fitted on the appliance.

— Connection with a wavy metal hose

(stainless steel)

with screw-on mechanical

connectors (compliant with the NF D 36-121
standard) whose service life is unlimited
(Fig. A).

— Connection with a reinforced rubber

hose

with screw-on mechanical

connectors

(compliant with the NF D 36-103 standard)
whose service life is 10 years

(Fig. B).

Warning

When connecting your hob’s gas

supply, if you have to change the direction
of the elbow fitted on the appliance:

①

①

Change the sealing washer.

②

②

Screw on the elbow’s nut, being careful

not to exceed a torque of 17 N.m.

GAS CONNECTION

• Preliminary comments

If your hob is installed above an oven or if proximity to other heating elements poses a threat of
overheating the connection, you must insulate the cable in a rigid pipe.
If a hose or soft pipe (in the case of butane gas) is used, it should not come into contact with a
moving part of the cabinet, nor should it pass through a location that may become blocked.

•

•

;

;

@

@

;

;

Q

Q

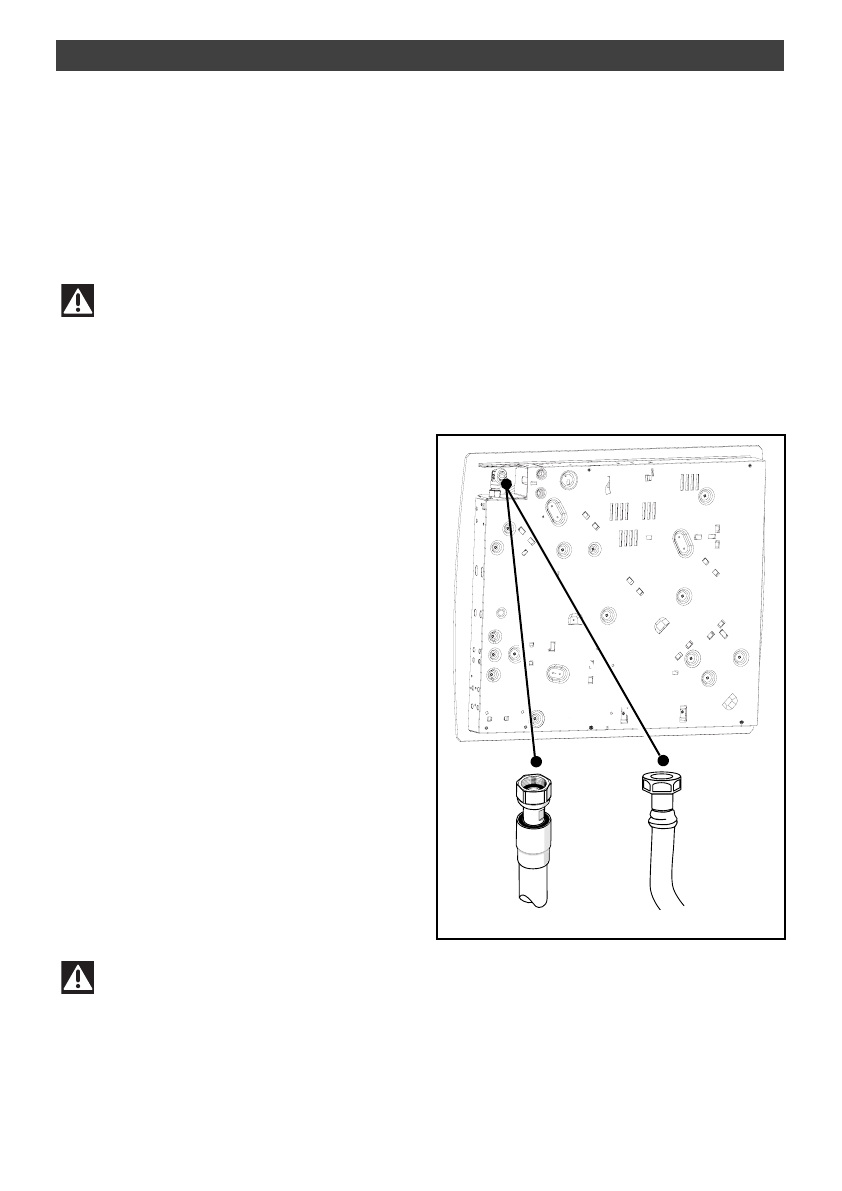

Fig. A

Fig. B

1 / INSTALLING YOUR APPLIANCE

Warning

All soft pipes and hoses whose service life is limited must have a maximum length of

two meters and must be accessible along their entire length. They must be replaced before
the end of their service life (marked on the pipe). Regardless of the means of connection
chosen, ensure that the connection is leaktight, after installation, with soapy water.
