GAS CONNECTION

• Preliminary comments

If your hob is installed above an oven or if proximity to other heating elements poses a threat of
overheating the connection, you absolutely must insulate the cable in a rigid pipe.
If a hose or soft pipe (in the case of butane gas) is used, it should not come into contact with a
moving part of the cabinet, nor should it pass through a location that may become blocked.

1

1  //   INSTALLING YOUR APPLIANCE

•

•

;

;

@

@

;

;

Q

Q

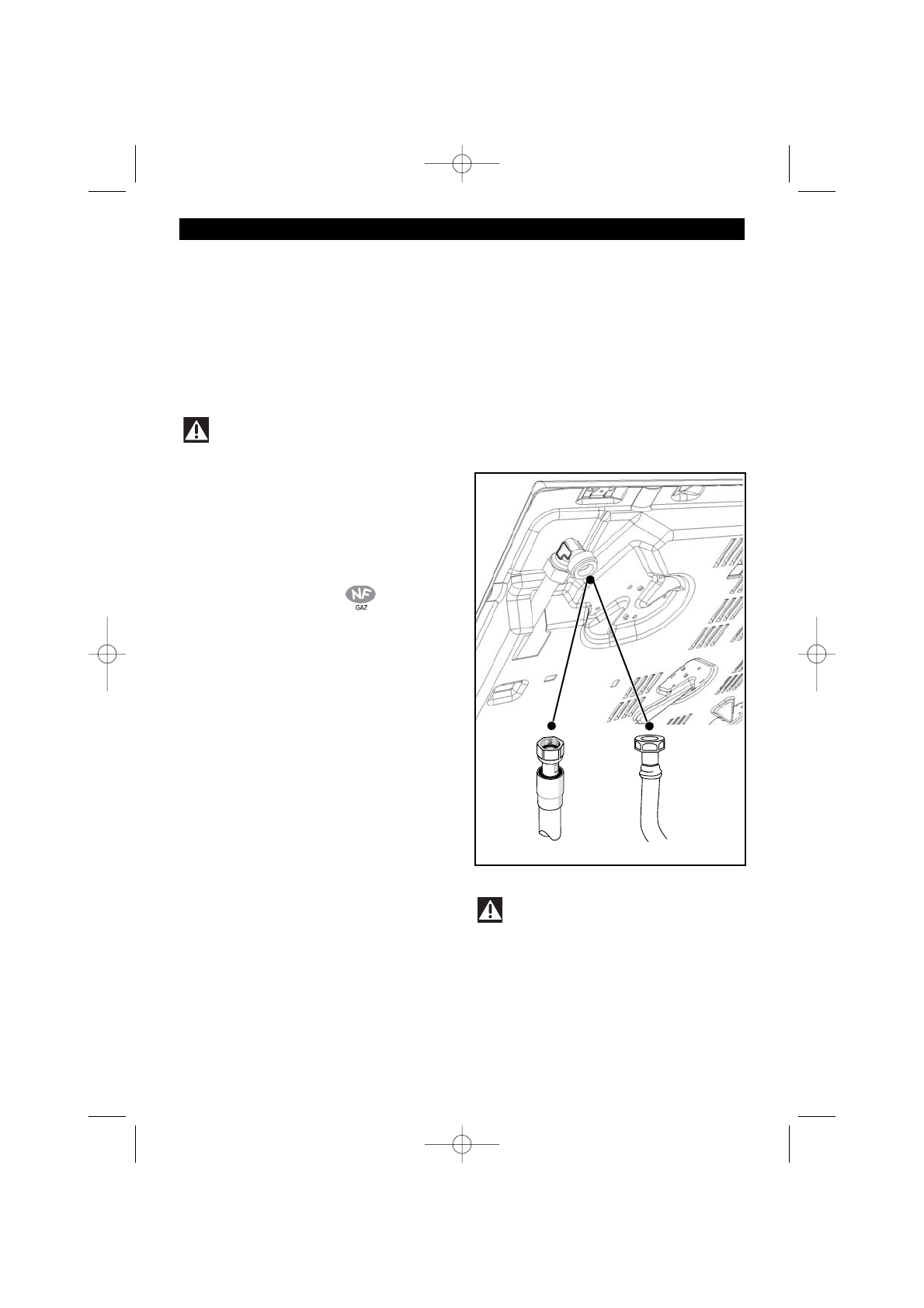

Fig. A

Fig. B

The gas connection must be installed in
compliance with applicable regulations in the
country of installation.

•

Gas distributed by pipe; natural gas,

propane-air gas or butane-air gas

For your safety, you must choose from the
three following connection options:

— Connection with a rigid pipe

made from

copper and with screw -on mechanical
connectors (G1/2 gas standard mark) Make
the connection directly to the end of the
elbow fitted on the appliance.

— Connection with a wavy metal hose

(stainless steel)

with screw-on mechanical

connectors

(compliant with NF D 36-121

standard) whose ser vice life is unlimited
(Fig. A).

— Connection with a reinforced rubber hose

with

screw-on mechanical connectors

(compliant with the NF D 36-103 standard)
whose service life is 10 years

(Fig. B).

Warning

All soft pipes and hoses whose serv-

ice life is limited must must be at least two
meters long and must be accessible along
their entire length. They must be replaced
before the end of their service life (marked
on the pipe). Regardless of the means of
connection chosen, ensure that the connec-
tion is leaktight, after installation, with soapy
water.
In France, you must use a hose or a pipe
bearing the stamp NF Gaz

Warning

W h e n   c o n n e c t i n g   y o u r   h o b ’ s   g a s

s u p p l y ,   i f   y o u   h a v e   t o   c h a n g e   t h e
d i r e c t i o n   o f   t h e   e l b o w   f i t t e d   o n   t h e
a p p l i a n c e :

①

①

C h a n g e   t h e   s e a l i n g   w a s h e r .

②

②

S c r e w   o n   t h e   e l b o w ' s   n u t ,   c a r e f u l   n o t

t o   e x c e e d   a   t o r q u e   o f   1 7   N . m .
