Fig. 5

Fig. 6

Fig. 7

a) Removable panel
b) Space for connections

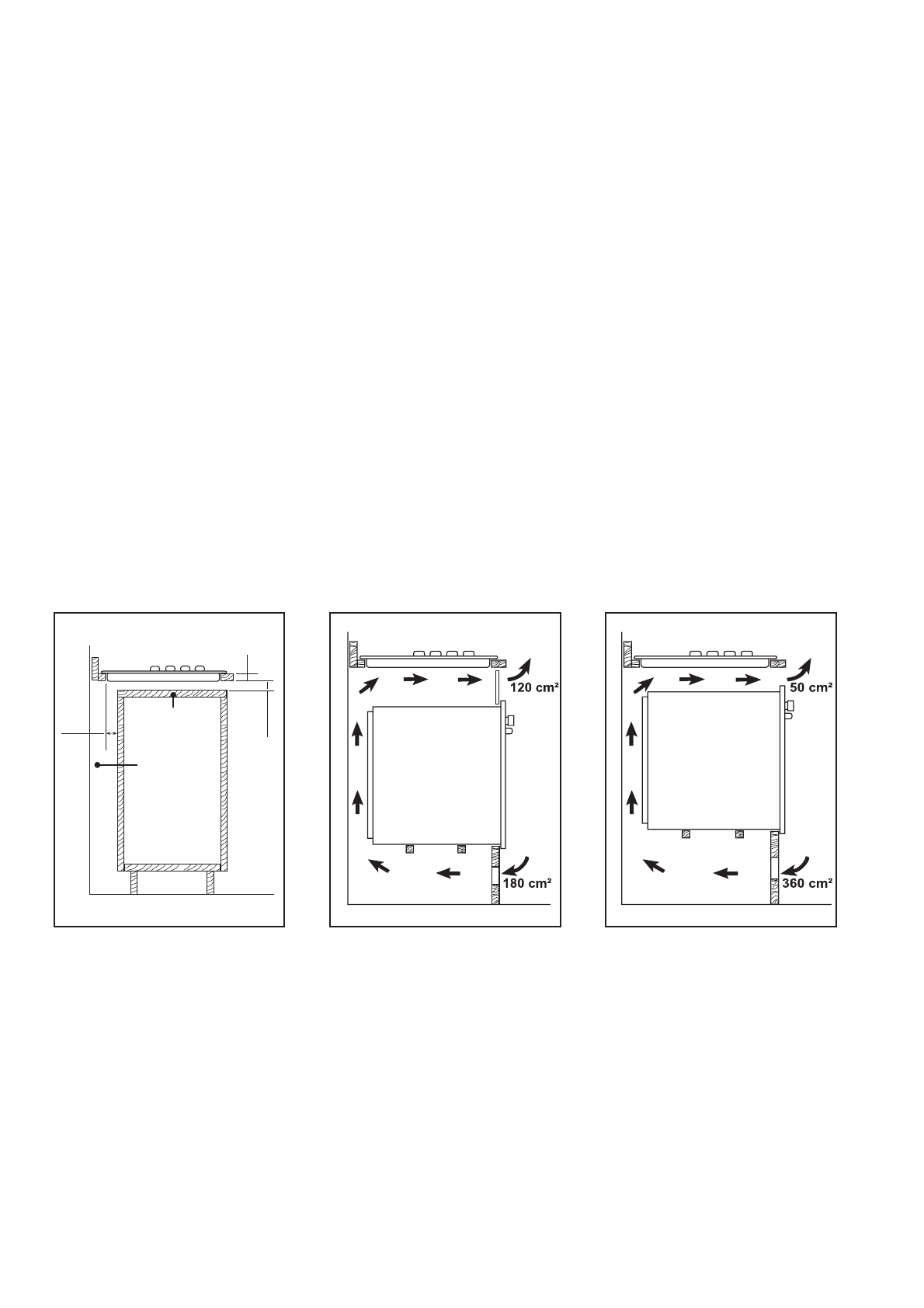

Building over a kitchen unit with
door

Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the bottom
of the hob which can be hot when in operation. The
recommended solution is shown in diagram 5.
The panel fitted under the hob  ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.

Kitchen unit with oven

The hob recess dimensions must comply the indication
given in Fig. 3 and the kitchen unit must be provided with
proper openings to allow a continuous supply of air.
Suggestions to ensure a proper ventilation are shown in
Figs. 6 e 7.
The electrical connection for the hob must be separate
from the electrical connection for the oven, to ensure
safety and to allow an easy removal of the oven from the
unit, if necessary.

Possibilities for insertion

FO 0938

FO 0939

FO 2166

30

20 min

80

a

b
