7

Instruction for the Installer

The following instructions about installation
and maintenance must be carried out by
qualified personnel in compliance with the
regulation in force.

T h e   a p p l i a n c e   m u s t   b e   e l e c t r i c a l l y
disconnected before all interventions. If any
electric supply to the appliance is required to
carry out the work, ensure all the necessary
precautions are followed.

The side walls of the unit in which the hob is
going to be installed, must not exceed the
height of the working top.

Avoid installing the appliance in the proximity
of inflammable materials (e.g. curtains, tea
towels etc.).

The appliance is designed to be connected to 230 V
monophase electricity supply.
The connection must be carried out in compliance with
the laws and regulations in force.
Before the appliance is connected:

1. check that the main fuse and the domestic installation

can support the load (see the rating label);

2. check that the power supply is properly earthed in

compliance with the current rules;

3. check the socket or the double pole switch used for

the electrical connection can be easily reached with
the appliance built in the forniture unit.

The appliance is supplied with a connection cable. This
has to be provided with a proper plug, able to support the
load marked on the identification plate. To connect the
plug to the cable, follow the recommendation given in
Fig.1. The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system,
it is necessary that you install a double pole switch
between the appliance and the electricity supply, with a
minimum gap of 3 mm. between the switch contacts and
of a type suitable for the required load in compliance with
the current rules.
The connection cable has to be placed in order that, in
each part, it cannot reach a temperature 90 °C higher than
the room temperature.
The brown coloured phase cable (fitted in the terminal
block contact marked with "L") must always be connected
to the network phase.

Electrical Connection

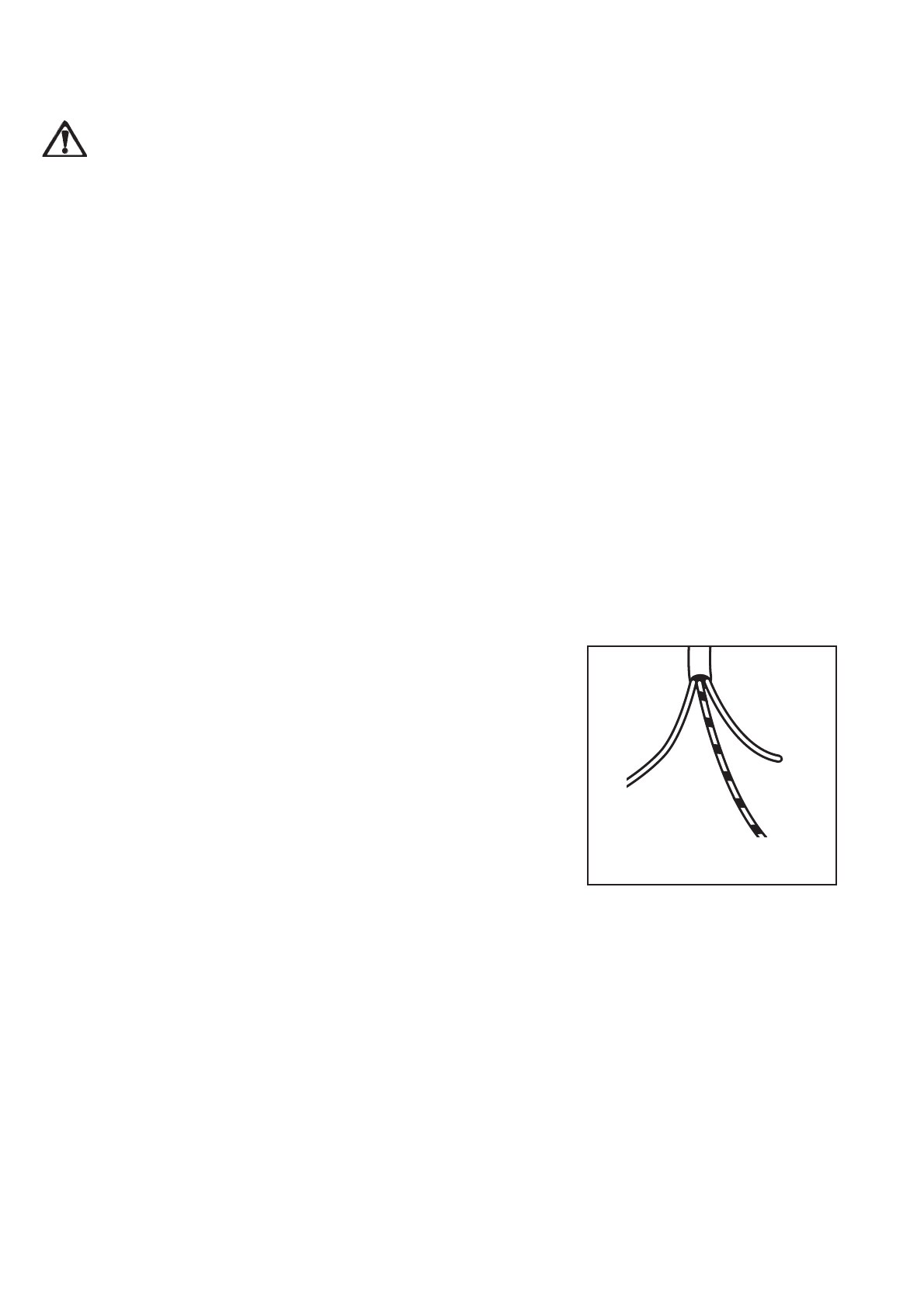

Fig. 1

Neutral

Earth (yellow/green)

Replacement of the connection cable

The replacement of the connection cable requires the
specific equipment of a technician.

In this case, only cable type H05V2V2-F T90 must be
used. The cable section must be suitable to the voltage
and the working temperature.
The yellow/green earth wire must be approximately 2
cm longer than the phase wires (Fig. 1).
