Connections

If you use two sets (A and B), the impedance of each speaker
must be 8

Ω

 or higher. When only using one set of speakers (A or

B), use speakers with an impedance of 4

Ω

 or higher.

■

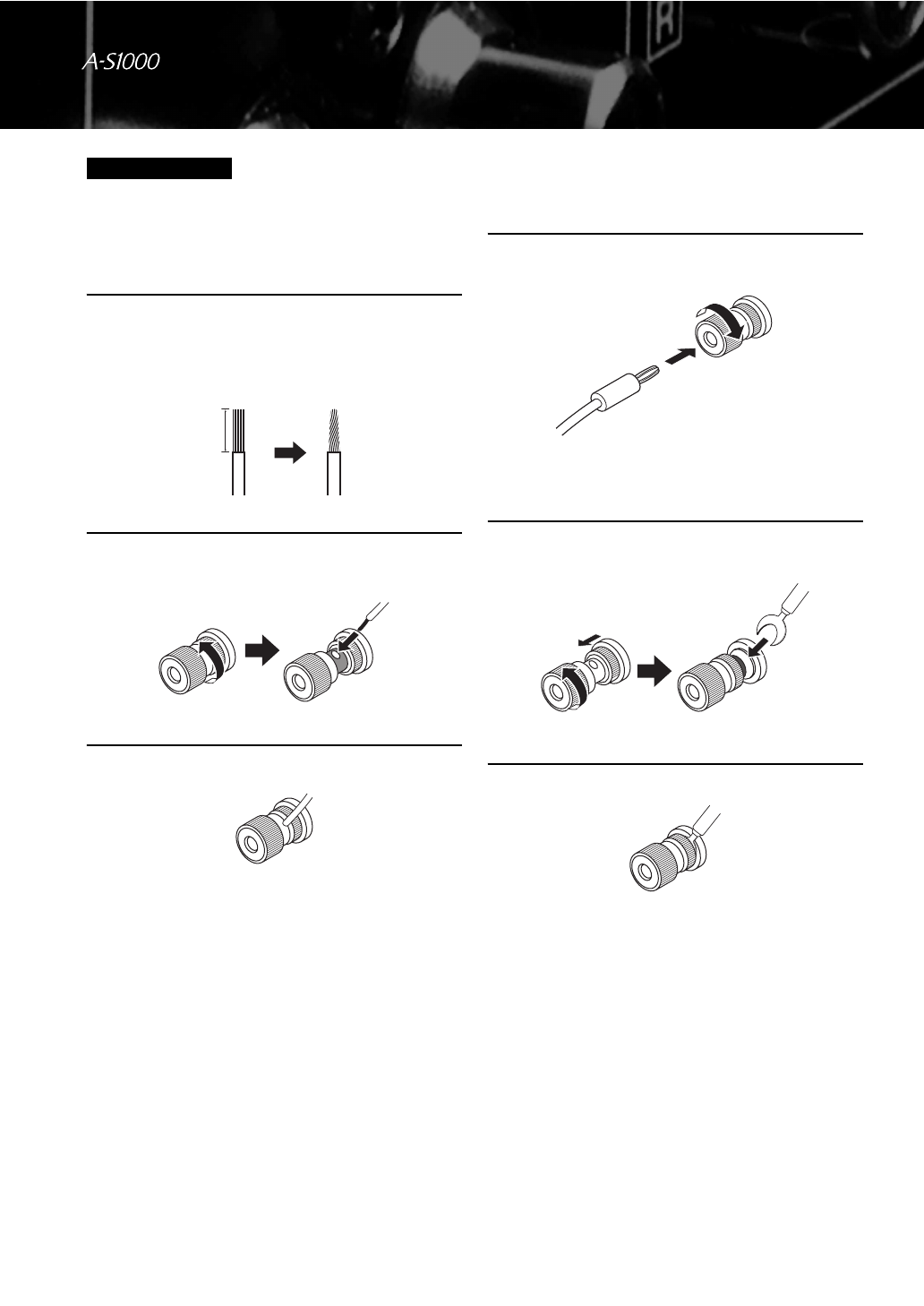

Connecting the speakers

1

Remove approximately 10 mm (0.4 in) of
insulation from the end of each speaker
cable and twist the exposed wires of the
cable together to prevent short circuits.

2

Unscrew the knob and then insert the bare
wire into the hole.

3

Tighten the knob.

■

Connecting the speakers using the
banana plug
(Except for Europe models)

First, tighten the knob and then insert the banana
plug into the end of the corresponding terminal.

■

Connecting the speakers using the
Y-shaped lug

1

Unscrew the knob and then sandwich the
Y-shaped lug between the ring part and base.

2

Tighten the knob.

Caution

10 mm (0.4 in)

Banana plug

Y-shaped lug

Slide
