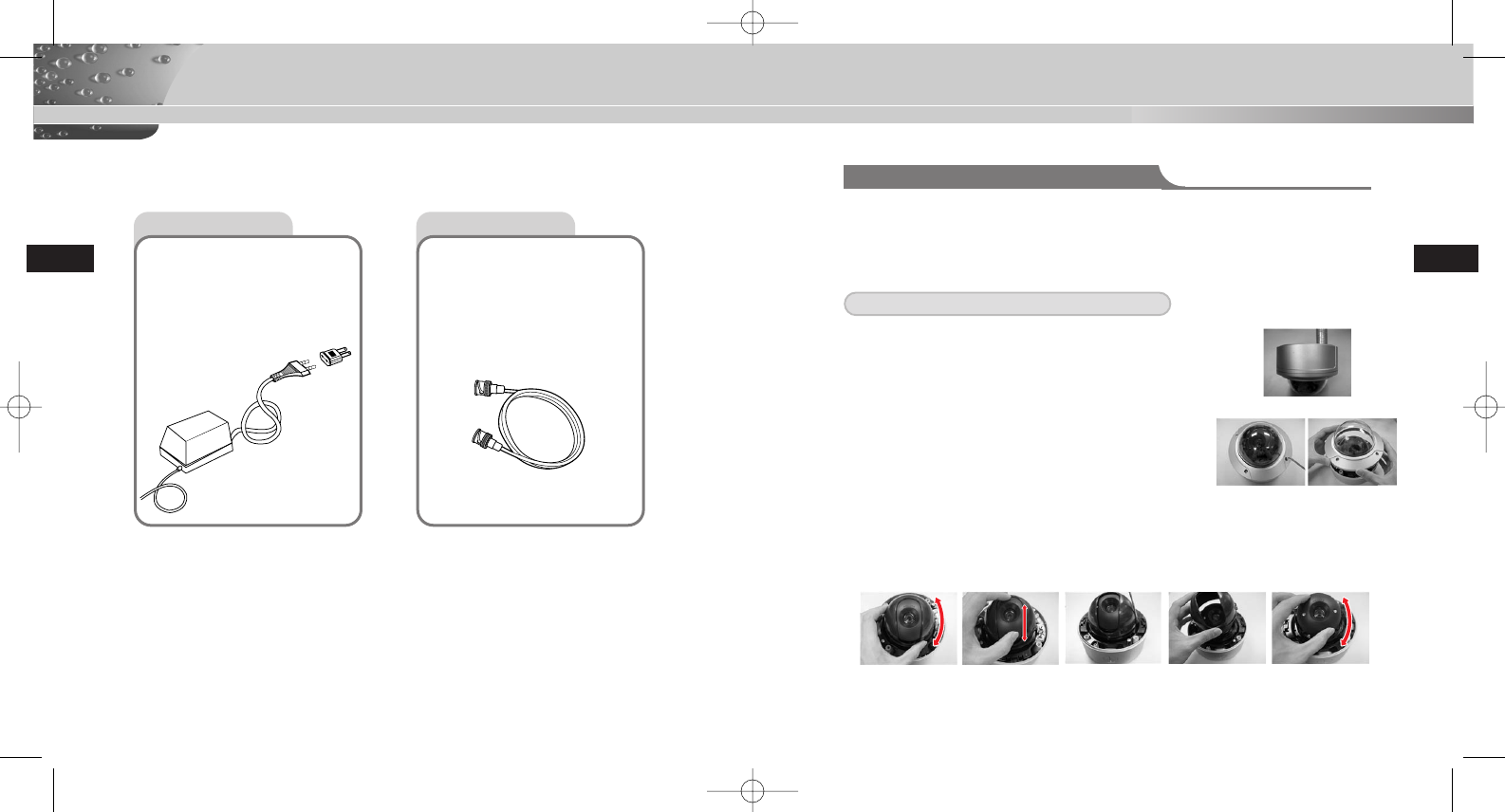

Preparing Cables

E

E

Installing the Camera

The following cables are required to install and use the Camera.

Power Adapter Cable

Video Cable

The power adapter that plugs
into the Camera’s power input
receptacle has the rated volt-
age of DC 12V 600mA or AC
24V 300mA.

The cable that connects the
video output terminal of the
Camera to the monitor is a
BNC cable.

Installing on a PIPE (for SCC-C9302P)

1. Carefully read the 'Before Installation'section before starting installation.

- All holes that are not used for installation must be closed up with the

SCREWs provided in your ACCESSORY set as described in the
installation HOLE section.

Installing the CAMERA bottom to a PIPE

2. Connect the power cable and video cable,

and then pull them into the PIPE. Assemble the
screw helix (3/4" threaded)for the PIPE assembly
of the CAMERA and screw helix (3/4" threaded)
forthe PIPE and fix the SET. (* Completely wrap
thescrew helix area of the PIPE with TEFLON
TAPE to make it waterproof.Make sure that the
cable does not get caught in the tape.)

3. Adjust the LENS in the direction you want.

1) Disassemble the DOME COVER with the L WRENCH provided in your

ACCESSORY set.
(Rotating clockwise will close the cover and rotating anti-clockwise will release it.)

2) Adjust the LENS in the direction you want.

Horizontal rotation

Backlash : Widen and lift the wings on both sides of the COVER outwards to remove the COVER,

and then rotate the LENS.After finishing adjustment,reassemble the COVER by
pushing it in until a click is heard.

Vertical rotation
