Installing the Camera
E
E
Installing on the ceiling
1. Carefully read the 'Before Installation' section before starting installation.
- All holes that are not used for installation must be closed up with the
SCREWs provided in your ACCESSORY set as described in the
installation HOLE section.
2. Attach the provided TEMPLATE to where you want to install the camera,
and then drill a hole (diameter 5 mm,depth min.35 mm).
Completely insert the PLASTIC ANCHOR provided (HUD 5).
3. Connect the power cable and video cable and then arrange the cables
so they will not be damaged or jammed while installing the CAMERA.
4. Disassemble the DOME COVER to install the CAMERA.
(For more information on disassembling the DOME COVER and
assembly methods, please refer to 'Installing the CAMERA bottom to a
PIPE' in section no. 3.)
5. Install the CAMERA.
Match the installation hole on the CAMERA to the hole with the
PLASTIC ANCHOR and then assemble the ASSY SCREW-TAPPING
(TH M4 X 30)with an O RING on it into all 4 places).
(If there is no O RING,the product will not be properly waterproofed.)

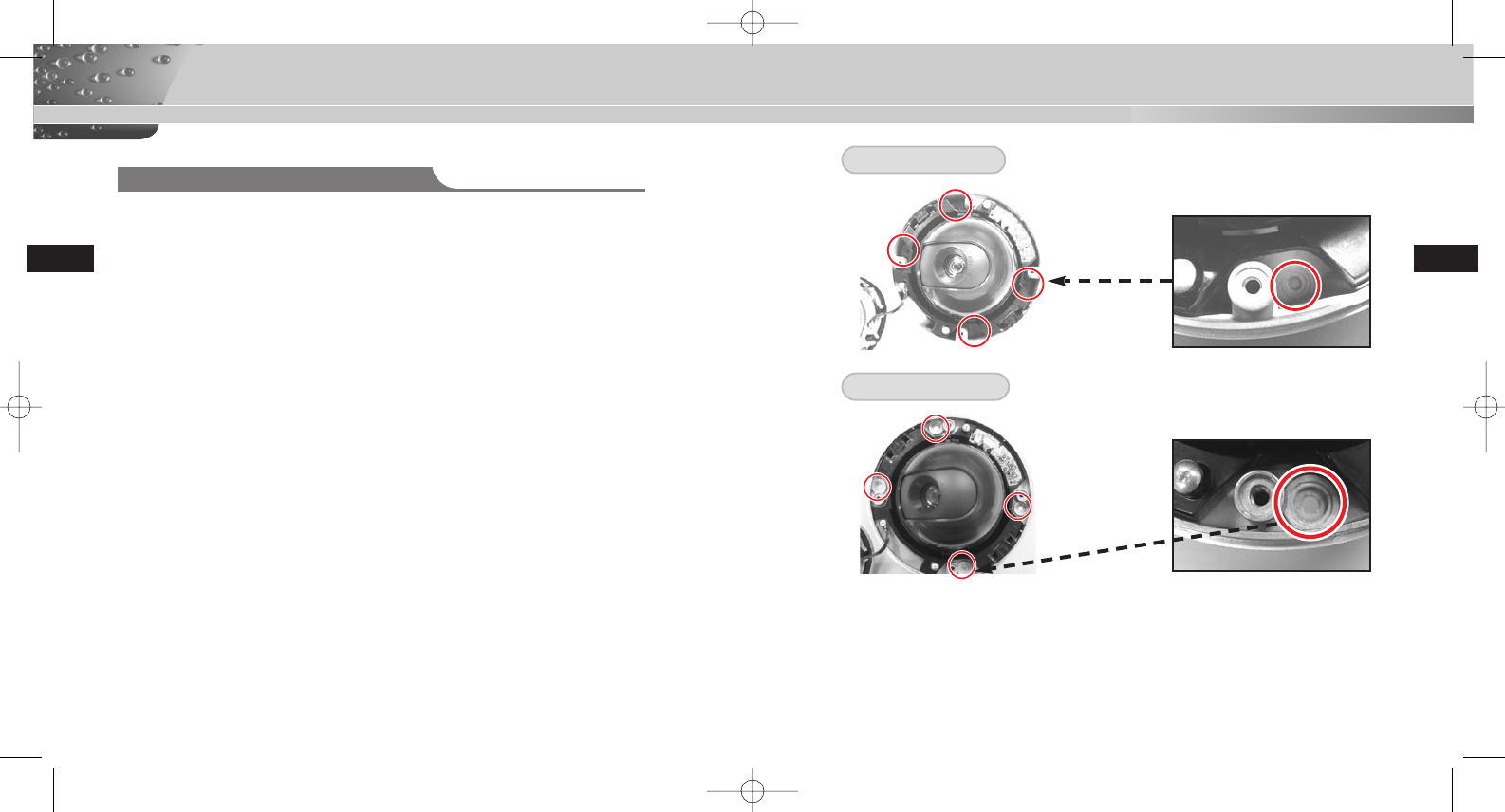

For SCC-C9302P
For SCC-C9302F
6. Adjust the LENS to the direction you want and assemble the DOME
COVER.
(For more information on adjusting the LENS and assembling the DOME
COVER, please refer to 'Installing the CAMERA bottom to a PIPE' in
section no. 3.)
