Installing the Camera

E

E

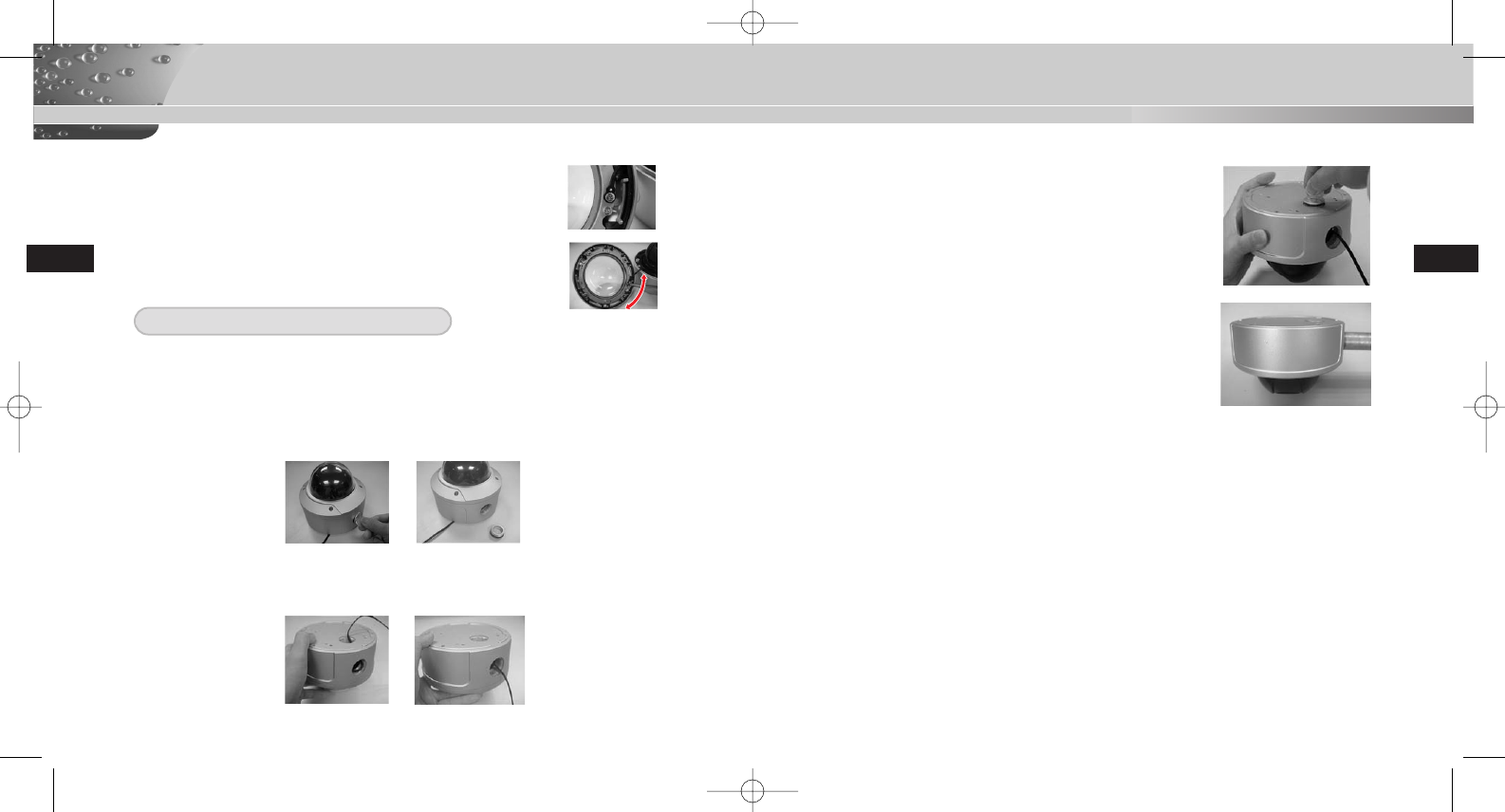

Installing the CAMERA side to a PIPE

1. Pull the power cable and video cable from the PIPE assembly hole at

the bottom of the CAMERA bottom,out through the PIPE assembly hole
on the side.

1) Use a coin or slotted driver to turn the CAP BOLT assembled in the

PIPE assembly hole on the side anti-clockwise and disassemble it
from the CASE.

2) Take the power cable and video cable from the PIPE assembly hole at

the bottom and push the cables through the hole to pass through the
PIPE assembly hole on the side.

3) Assemble the DOME COVER.(Use the L WRENCH to

firmly adjust the BOLT into place to make it waterproof.)
- To change the direction of the SAMSUNG LOGO

on the DOME COVER,change the assemble location
of the connection rubber and turn it back into place
as in the following image. (For 180 • only)

3. Use a coin or slotted driver to turn the CAP BOLT

previouslydisassembled from the CASE

clockwise to reassemble it.

(Check to see if the O RING (P22 T2.4)

is attached to the CAP-BOLT.

If there is no O RING, the product will not be

properly waterproofed and may malfunction.)

4. Rearrange and pull the connected power cable

and video cable into the PIPE. Assemble

the screw helix (3/4" threaded)for the PIPE

assembly of the CAMERA and screw helix

(3/4" threaded)for the PIPE and fix the SET.

(* Completely wrap the screw helix area of the PIPE with TEFLON TAPE
to make it waterproof. Make sure the cable does not get caught in the

tape.)

5. Adjust the LENS in the direction you want.

(For more information on adjusting the LENS, disassembling the DOME

COVER and assembly methods,please refer to 'Installing the CAMERA

bottom to a PIPE'in section no.3.)
