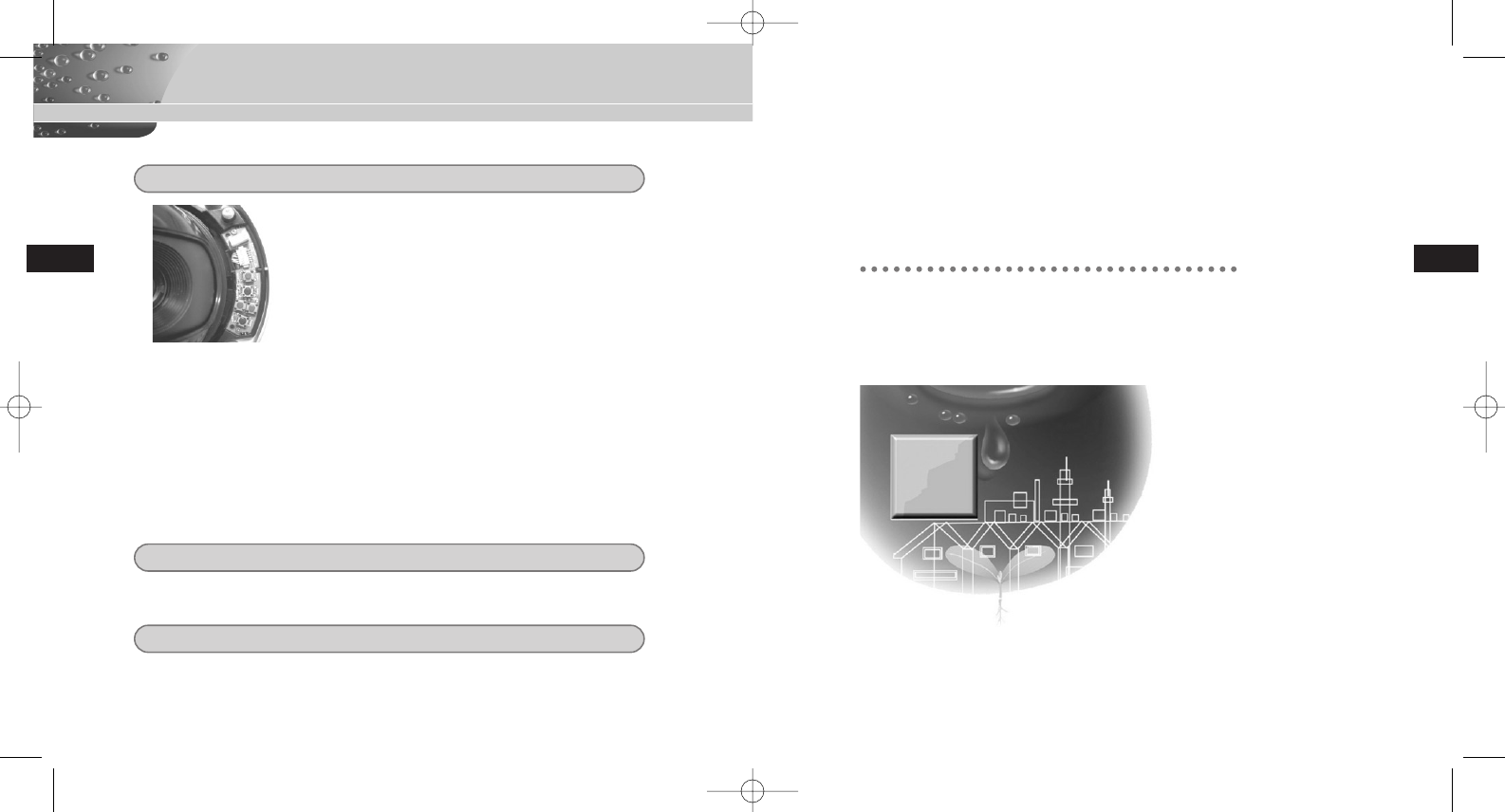

Part Names and Functions

E

E

❶

Camera Operation Switches (Setup Switches)

The functions of the camera operation switches change
depending on whether the Camera is currently in the
usual operation mode (i.e., the setup menu is not showing
on the screen) or the setup menu mode.

➻

In the usual operation mode

- [UP/DOWN] Directional keys: The [UP] key is used as

the ZOOM TELE switch, and the [DOWN] key is used as
the ZOOM WIDE switch.

- [LEFT/RIGHT] Directional keys: The [LEFT] key is used as the FOCUS NEAR

switch, and the [RIGHT] key used as the FOCUS FAR switch.

- [ENTER] key: This key is used to go into the setup menu.

➻

In the setup menu mode

- [UP/DOWN] Directional keys: These keys are used to move the cursor up and

down.

- [LEFT/RIGHT] Directional keys: These keys are used to move the cursor left

and right, or to sequentially view the values that can be assigned in each
setup menu.

- [ENTER] key: This key is used to select a setup menu with a submenu in

order to open the submenu, and to accept the current value.

These connectors are used to connect the power adapter cable and video input
cable.

These connectors are used to connect an RS485 remote control cable and a
cable used for transmitting the ALARM signal at the time of the MOTION DET
mode.

❷

Power Input Connector and Video Output Connector (4-Pin)

❸

RS485 Connector and Alarm Output Connector (4-Pin)

Chapter 2

Installing the Camera

This chapter explains what to check before installing the
Camera, how to choose an installation site, and what
precautions should be taken during installation.
Now, let’s install the Camera and connect cables.
