Pattern Selection Dial

CAUTION
When you use the Pattern Selection Dial to select a pattern,
turn the balance wheel to the front (counter-clockwise) by
hand to set the needle in the highest position before selecting
the pattern. If the needle is in the down position when the
Pattern Selection Dial is turned, the needle, presser foot, or
fabric may be damaged.

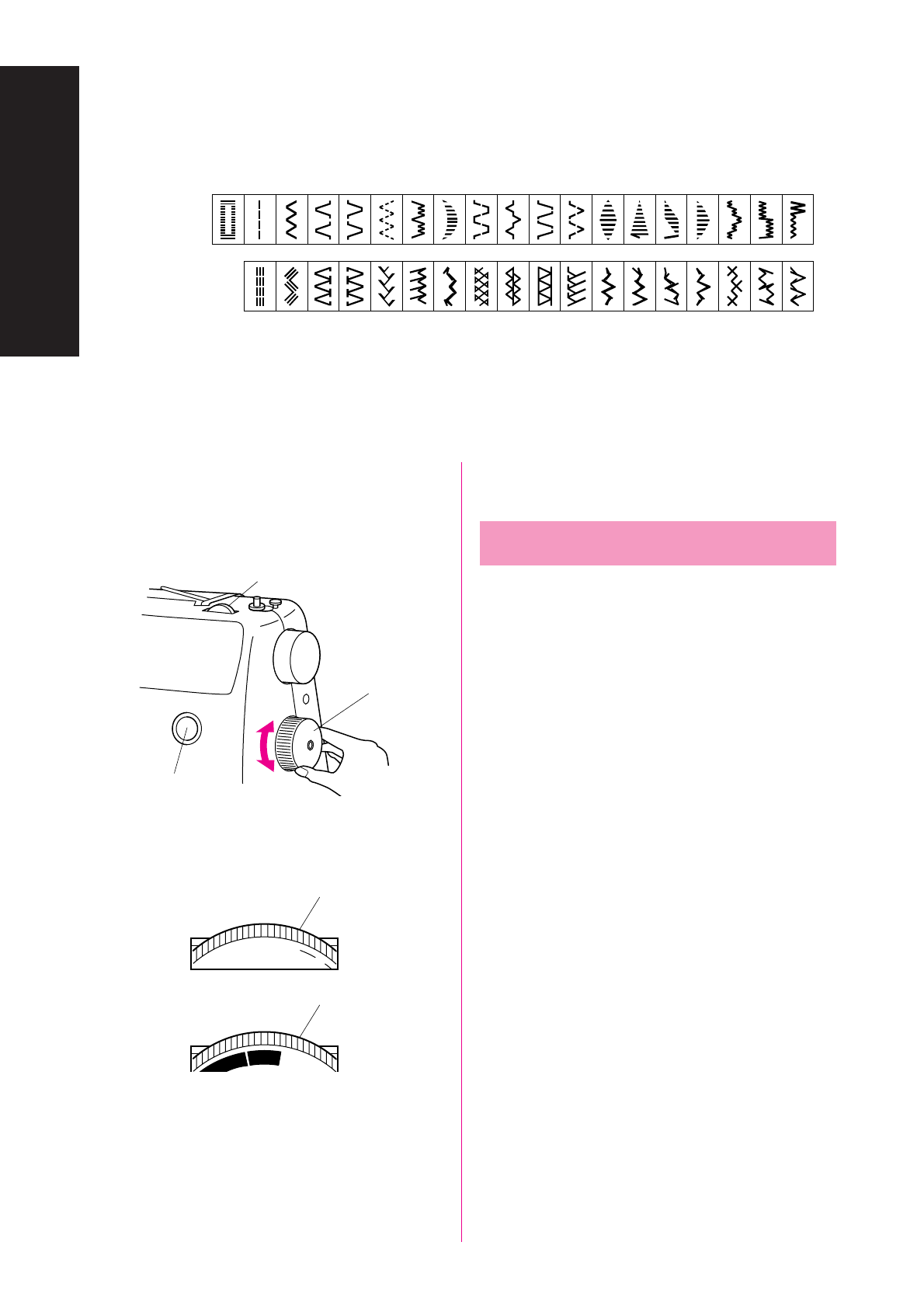

To select a stitch, simply turn the Pattern Selection Dial, located on
the right side of the machine. The Pattern Selection Dial may be
turned in either direction. The following page shows the recom-
mended range of stitch lengths and widths.

1

Pattern selection dial

2

Pattern number

The stitches that are available depend on the Stitch Length Dial
setting. If the Stitch Length Dial is set between 0 and 4.5, any of the
stitches in the top row can be selected. If the Stitch Length Dial is
set to SS, any of the stitches in the bottom row can be selected.

3

Stitch length dial

(Model STAR 240E, STAR 230E, PS-57, PS-55, STAR-50,
RSR-55, XRX-55)

NOTE:
Since the Pattern Selection Dial is not a continuous dial, it cannot
be turned directly from the last stitch to the first one or from the first
stitch to the last one. To select the first stitch when the last one is
displayed or to select the last stitch when the first one is displayed,
turn the Pattern Selection Dial in the opposite direction until the
desired stitch is displayed.
