33

KNOWING YOUR SEWING MACHINE

K

E

N

N

E

N

L

E

RN

E

N

 IH
RE
R M

A

S

CH

IN
E

КРАТКОЕ ТЕХНИЧЕСКОЕ ОПИСАНИЕ МАШИНЫ

THREADING

THE MACHINE

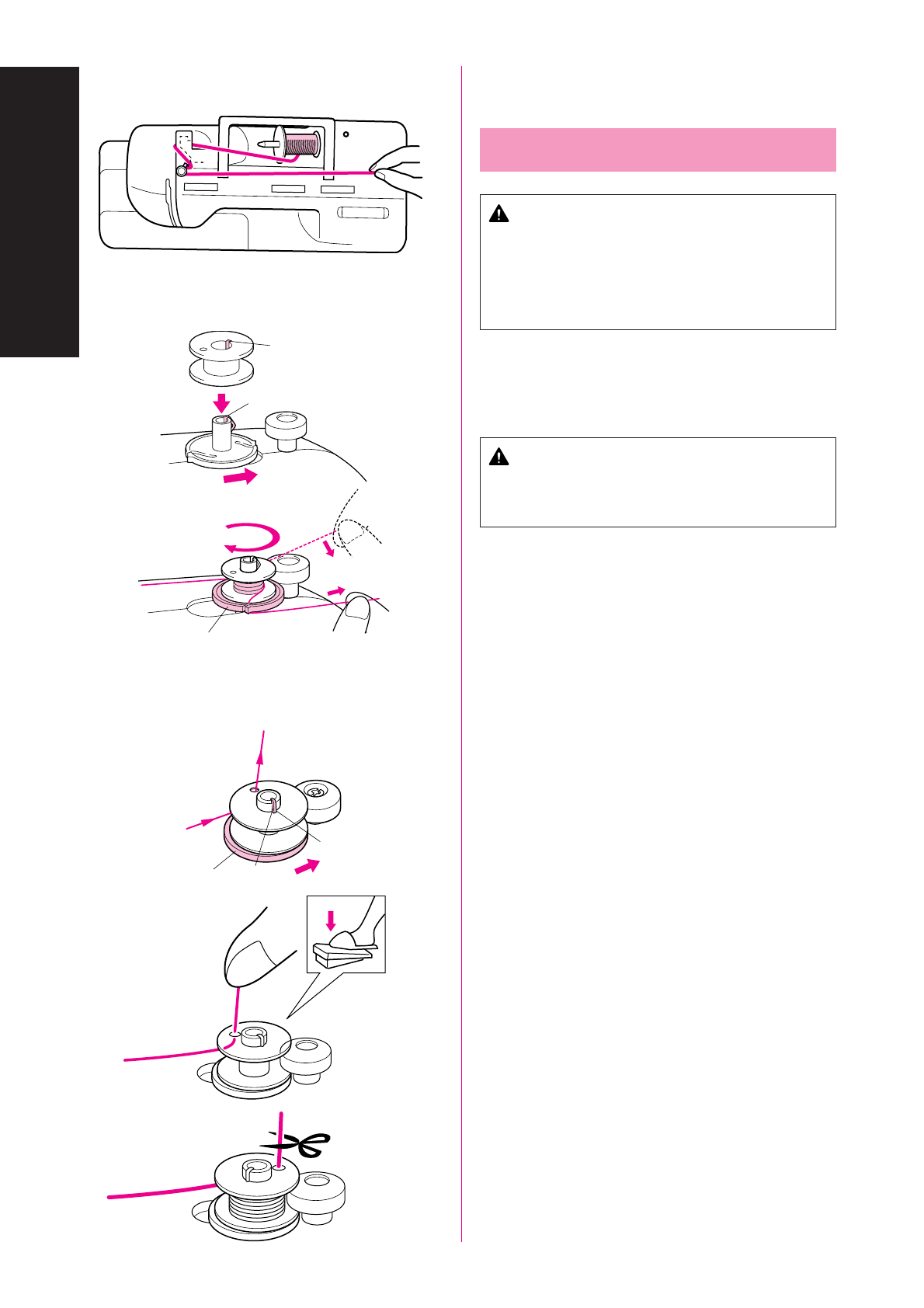

Winding the Bobbin

CAUTION

•

If the thread spool and/or spool cap are set incorrectly,
the thread may tangle on the spool pin.

•

Use the spool cap (large, medium, or small) that is
closest in size to the thread spool. If a spool cap smaller
than the thread spool is used, the thread may become
caught in the slit on the end of the spool.

1. Place the spool of thread on the horizontal spool pin and firmly

hold it with a spool cap so that the spool of thread will not turn.
Pass the thread through the thread guide as shown following the
dotted line on the machine.

CAUTION

Use only bobbins recommended by the manufacturer of
this machine (see page 5). Using other bobbins may result
in damage or injury.

(Model STAR 240E, STAR 230E)
2. Place the bobbin on the bobbin winder shaft. Push the bobbin

winder shaft to the right.

1

Spring on the shaft

2

Groove of the bobbin

*

Align the groove of the bobbin with the spring on the shaft.

3. Wind the thread clockwise around the bobbin four or five times,

pass the end of the thread through the slit in the bobbin winder
seat, and then pull the thread in the direction shown in the
illustration. Use the cutter to cut the thread.

3

Bobbin winder seat

(Model PS-57, PS-55, STAR-50, RSR-55, XRX-55, PS-53)
2. Pass the end of the thread through the hole on the bobbin from

the inside.

Place the bobbin onto the bobbin winder shaft and slide the

bobbin winder shaft to the right. Turn the bobbin clockwise, by
hand, until the spring on the shaft slides into the groove of the
bobbin.

1

Spring on the shaft

2

Groove of the bobbin

3

Bobbin winder seat

3. While holding the end of the thread, gently depress the foot

controller to wind the thread around the bobbin a few times.
Then stop the machine.

Trim the excess thread above the bobbin.

1

2

2

1

2

1

1

3

2

3

1

3

2

(Model STAR 240E, STAR 230E)

(Model PS-57, PS-55, STAR-50, RSR-55, XRX-55, PS-53)
