KNOWING YOUR SEWING MACHINE

K

E

N

N

E

N

L

E

RN

E

N

 IH
RE
R M

A

S

CH

IN
E

КРАТКОЕ ТЕХНИЧЕСКОЕ ОПИСАНИЕ МАШИНЫ

5

2

1

D

3

4

9

0

C

8

B

7

6

A

L

E

G

H

I

M

J

K

F

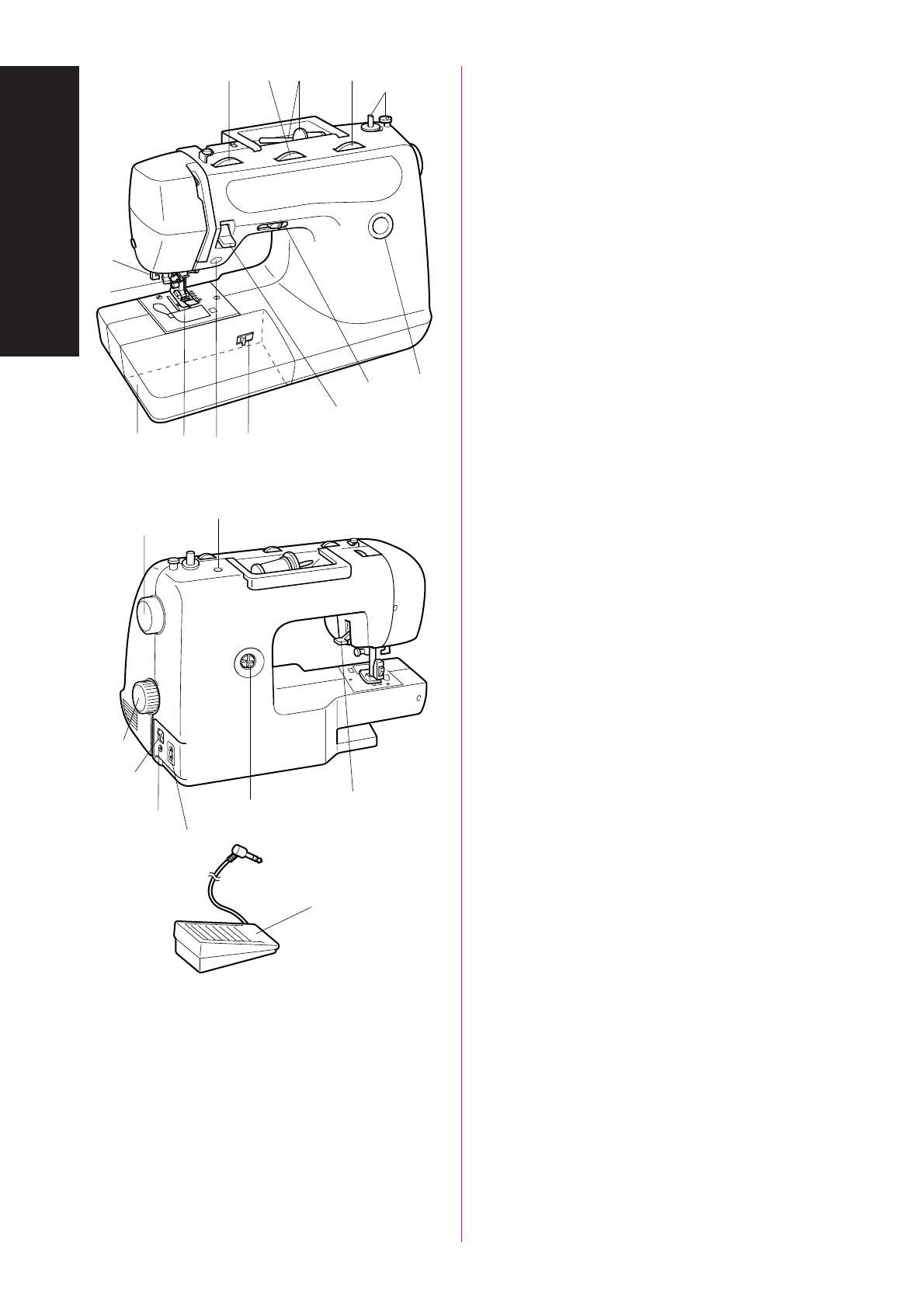

PRINCIPAL PARTS

(Model STAR 240E, STAR 230E)

1

BOBBIN WINDER (Page 33)
Winds the thread onto the bobbin to be used for the lower thread.

2

STITCH LENGTH DIAL (Page 15, 26)
Controls the length of the stitches.

3

SPOOL PIN AND SPOOL CAP (Page 33, 39)

4

STITCH WIDTH DIAL (Page 28)
Controls the stitch width.

5

UPPER TENSION CONTROL DIAL (Page 46)
Controls the tension of the upper thread.

6

BUTTONHOLE LEVER (Page 63)

7

NEEDLE THREADER (Page 41)

8

FLAT BED ATTACHMENT WITH ACCESSORY COMPART-

MENT (Page 14, 32)

9

ZIGZAG PRESSER FOOT (Page 5, 13)

:

START/STOP BUTTON (Page 31)
Touch to start or stop machine.

A

FEED DOG POSITION SWITCH (Page 30)

B

REVERSE SEWING LEVER (Page 29)
Push for stitching in the reverse direction.

C

SEWING SPEED CONTROLLER (Page 32)
Controls the speed range.

D

PATTERN INDICATION WINDOW (Page 15)
Shows the stitch number to be performed.

E

HOLE FOR VERTICAL SPOOL PIN (Page 44)
Used to hold a second spool of thread for twin needle sewing.

F

BALANCE WHEEL

G

PATTERN SELECTION DIAL (Page 15)
Turn in either direction to select the desired stitch.

H

MAIN POWER/SEWING LIGHT SWITCH (Page 9)
Turn on/off the main power/sewing light switch.

I

FOOT CONTROLLER JACK (Page 10)
Insert for foot controller operation.

J

CORD JACK (Page 7)
Connect machine to power supply.

K

BUTTONHOLE FINE ADJUSTMENT SCREW (Page 69)

L

PRESSER FOOT LEVER (Page 39)

M

FOOT CONTROLLER (Page 10)
Used to control sewing speed/start and stop.
