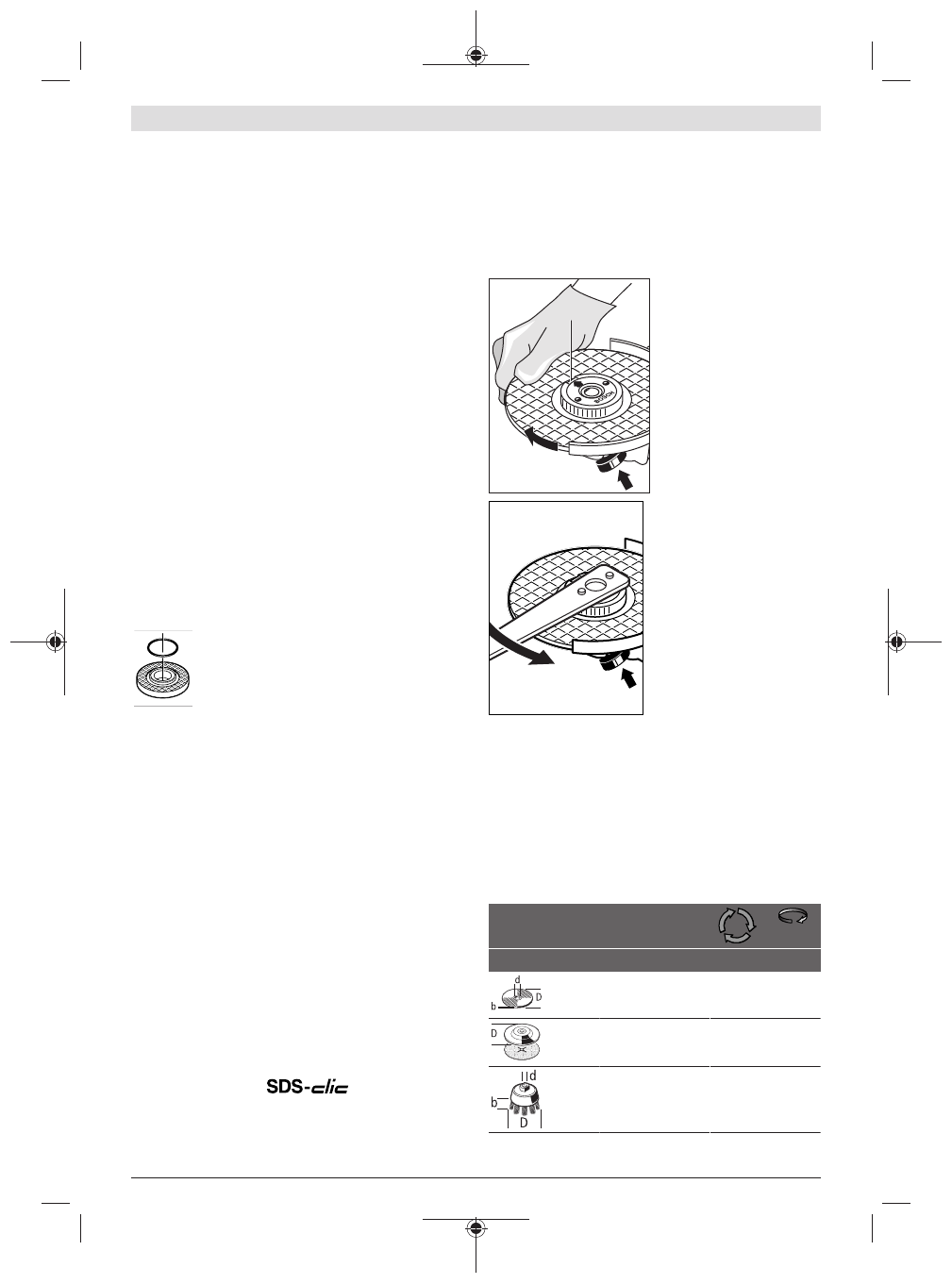

English |

19

u

Do not touch grinding and cutting discs until they have
cooled down.

 The discs can become very hot while work-

ing.

Clean the grinding spindle

(6)

 and all the parts to be fitted.

Lock the grinding spindle with the spindle lock button

(1)

before clamping and releasing the abrasive tools.

u

Do not press the spindle lock button while the grind-
ing spindle is moving.

The power tool may become dam-

aged if you do this.

Grinding/cutting disc

Pay attention to the dimensions of the abrasive tools. The
diameter of the hole must match that of the mounting flange.
Do not use an adapter or reducer.
When using diamond cutting discs, ensure that the arrow in-
dicating the direction of rotation on the diamond cutting disc
matches the direction of rotation of the power tool (see the
direction of rotation arrow on the machine head).
See the graphics page for fitting instructions.
To fasten the grinding/cutting disc, screw on the clamping
nut

(11)

 and tighten with the combination wrench; see the

"Quick-clamping nut" section.

u

After fitting the abrasive tool, check that the abrasive
tool is fitted correctly and can turn freely before
switching on the power tool. Make sure that the abras-
ive tool does not brush against the protective guard or
other parts.

Mounting flange for grinding spindle M 14:

A plastic part (O-ring) is fitted around the cent-
ring collar in the mounting flange

(9)

.

If the O-

ring is missing or damaged,

 the mounting

flange

(9)

 must be replaced before operation

can resume.

Flap disc

u

Always fit the hand guard (16)

when working with the

flap disc.

Rubber sanding pad

u

Always fit the hand guard

(16)

when working with the

rubber sanding pad (17)

.

See the graphics page for fitting instructions.
Screw on the round nut

(19)

 and tighten with the combina-

tion wrench

(5)

.

Cup brush/disc brush

u

Always fit the hand guard

(16)

when working with the

cup brush or disc brush.

See the graphics page for fitting instructions.
The cup brush/disc brush must be screwed onto the grinding
spindle until it rests firmly against the grinding spindle flange
at the end of the grinding spindle thread. Tighten the cup
brush/disc brush with an open-ended spanner.

Quick-clamping nut

To change the abrasive tool easily without having to use any
additional tools, you can use the quick-clamping nut

(12)

 in-

stead of the clamping nut

(11)

.

u

The quick-clamping nut

(12)

may be used only for

grinding or cutting discs.

Only use quick-clamping nuts (12)

that are in good work-

ing order and not damaged.
When screwing on, make sure that the printed side of the
quick-clamping nut

(12)

is not facing the grinding disc;

the arrow must be pointing towards the index mark (22).

(22)

Press the spindle lock but-
ton

(1)

 to lock the grinding

spindle. To tighten the
quick-clamping nut, turn
the grinding disc firmly
clockwise.

If the quick-clamping nut
has been attached correctly
and is not damaged, you
can loosen it by hand by
turning the knurled ring an-
ticlockwise.

Never loosen a

tight quick-clamping nut
with pliers. Always use
the combination wrench.

Insert the combination
wrench as shown in the fig-
ure.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operat-
ing instructions.
The permissible speed [min

-1

] or the circumferential speed

[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible

rota-

tional/circumferential speed

 on the label of the abrasive

tool.

max. [mm]

[mm]

D

b

d

[min

-1

]

[m/s]

115

125

7

7

22,2

22,2

11000

11000

80

80

115

125

-

-

-

-

11000

11000

80

80

75

30

M 14

11000

45
