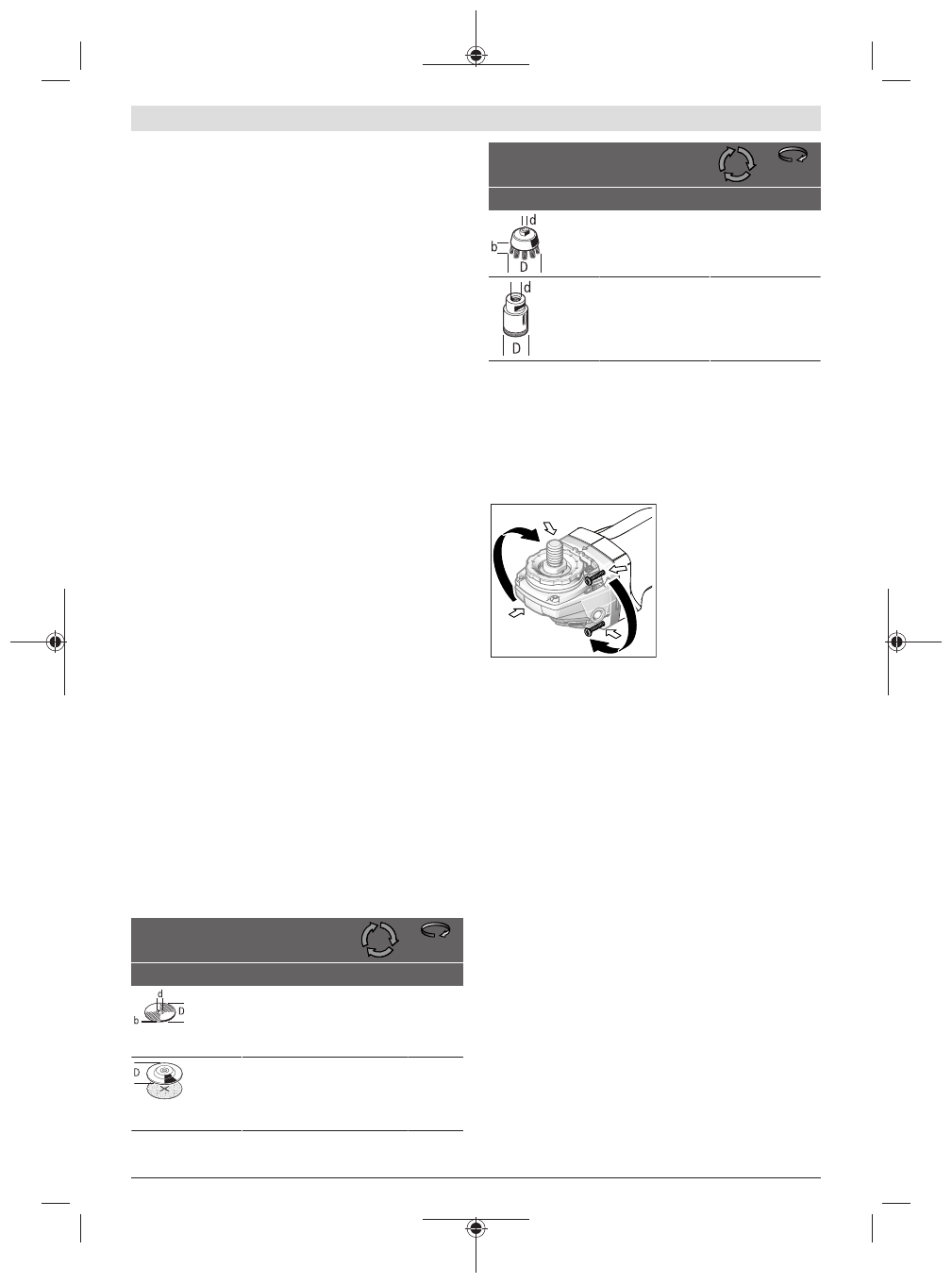

English |

13

matches the direction of rotation of the power tool (see the
direction of rotation arrow on the machine head).
See the graphics page for fitting instructions.
To fasten the grinding/cutting disc, screw on the clamping
nut

(12)

and tighten with the two-pin spanner.

u

After fitting the abrasive tool, check that the abrasive
tool is fitted correctly and can turn freely before
switching on the power tool. Make sure that the abras-
ive tool does not brush against the protective guard or
other parts.

Flap disc

u

Always fit the hand guard (17)

when working with the

flap disc.

Rubber Sanding Pad

u

Always fit the hand guard

(17)

when working with the

rubber sanding pad (18)

.

See the graphics page for fitting instructions.
Slide the rubber sanding pad

(18)

 onto the grinding spindle

(16)

.

Press the sanding sheet

(19)

 firmly onto the underside of

the rubber sanding pad

(18)

.

Screw on the round nut

(20)

 and tighten with a two-pin

spanner.

Cup brush/disc brush

u

Always fit the hand guard

(17)

when working with the

cup brush or disc brush.

See the graphics page for fitting instructions.
The cup brush/disc brush must be screwed onto the grinding
spindle until it rests firmly against the grinding spindle flange
at the end of the grinding spindle thread. Tighten the cup
brush/disc brush with an open-ended spanner.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operat-
ing instructions.
The permissible speed [min

-1

] or the circumferential speed

[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible

rota-

tional/circumferential speed

 on the label of the abrasive

tool.

max. [mm]

[mm]

D

b

d

[min

-1

]

[m/s]

100

115

125

7

7

7

16

22.2

22.2

9000

9000

9000

80

80

80

100

115

125

–

–

–

–

–

–

9000

9000

9000

80

80

80

max. [mm]

[mm]

D

b

d

[min

-1

]

[m/s]

75

30

M 14

9000

45

82

–

M 14

9000

80

Rotating the Machine Head (GWS 18V-10)

u

Remove the battery from the power tool before carry-
ing out work on the power tool (e.g. maintenance,
changing tool, etc.). The battery should also be re-
moved for transport and storage.

 There is risk of injury

from unintentionally pressing the on/off switch.

The machine head can be
rotated in 90° increments.
In this way, the on/off
switch can be brought into
a more favourable handling
position for particular ap-
plications, e.g. for left-
handed tool users.
Completely unscrew the
four screws. Rotate the ma-

chine head carefully,

without removing it from the hous-

ing

, into the new position. Screw in and retighten the four

screws.

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some
wood types, minerals and metal can be harmful to one’s
health. Touching or breathing-in the dust can cause allergic
reactions and/or lead to respiratory infections of the user or
bystanders.
Certain dust, such as oak or beech dust, is considered carci-
nogenic, especially in connection with wood-treatment ad-
ditives (chromate, wood preservative). Materials containing
asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the ma-
terials to be worked.

u

Avoid dust accumulation at the workplace.

Dust can

easily ignite.
