12

 | English

Low-vibration auxiliary handle

The low-vibration auxiliary
handle reduces vibration,
enabling the tool to be used
safely and more comfort-

ably.

u

Do not make any alterations of any kind to the auxili-
ary handle.

Do not continue to use a damaged auxiliary handle.

Hand guard

u

Always fit the hand guard (17)

when working with the

rubber sanding plate

(18)

or with the cup brush/disc

brush/flap disc.

Attach the hand guard

(17)

 to the side handle

(7)

.

Fitting the abrasive tools

u

Remove the battery from the power tool before carry-
ing out work on the power tool (e.g. maintenance,
changing tool, etc.). The battery should also be re-
moved for transport and storage.

 There is risk of injury

from unintentionally pressing the on/off switch.

u

Do not touch grinding and cutting discs until they have
cooled down.

 The discs can become very hot while work-

ing.

Clean the grinding spindle

(16)

 and all the parts to be fitted.

Lock the grinding spindle with the spindle lock button

(3)

before clamping and releasing the abrasive tools.

u

Do not press the spindle lock button while the grind-
ing spindle is moving.

The power tool may become dam-

aged if you do this.

Grinding/cutting disc with a diameter of
115 mm/125 mm

Pay attention to the dimensions of the abrasive tools. The
diameter of the hole must match that of the mounting flange.
Do not use an adapter or reducer.
When using diamond cutting discs, ensure that the arrow in-
dicating the direction of rotation on the diamond cutting disc
matches the direction of rotation of the power tool (see the
direction of rotation arrow on the machine head).
See the graphics page for fitting instructions.
Use the quick-clamping nut

(11)

 to secure the grinding/cut-

ting disc without the need for additional tools.
Only use the quick-clamping nut

(11)

 for grinding/cutting

discs up to a maximum diameter of 125 mm.

u

The quick-clamping nut

(11)

may be used only for

grinding or cutting discs.

u

Only use quick-clamping nuts (11) that are in good
working order and not damaged.

u

When screwing on, make sure that the printed side of
the quick-clamping nut (11) is not facing the grinding
disc.

u

Always secure a grinding/cutting disc using only the
quick-clamping nut (11)

supplied

.

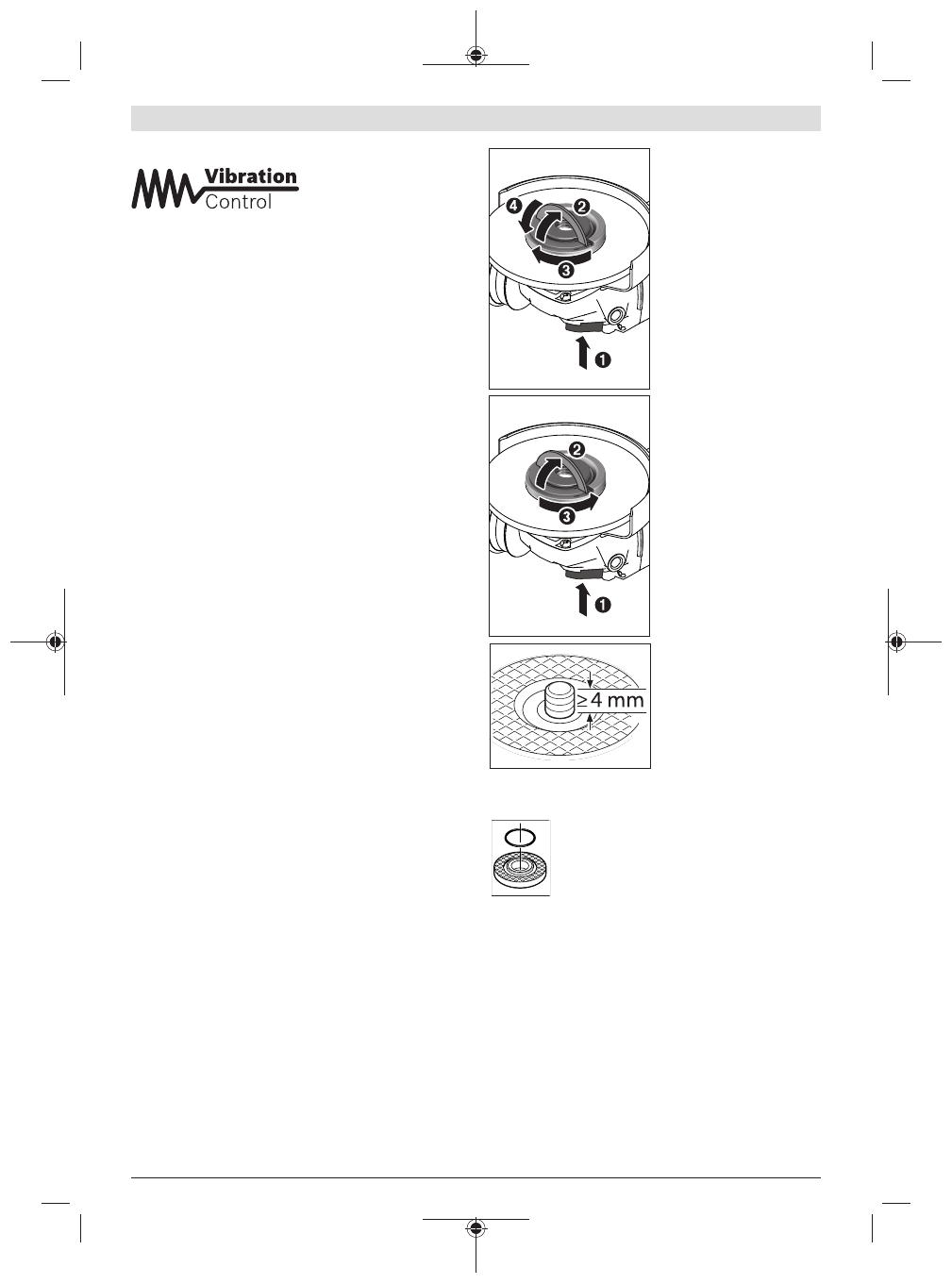

Press the spindle lock but-
ton

(3)

 to lock the grinding

spindle. To tighten the
quick-clamping nut

(11)

,

fold up the bar and turn the
quick-clamping nut firmly
clockwise. Then fold down
the bar to secure the quick-
clamping nut.

It is not suf-

ficient to tighten the disc
along the edge.

Quick-clamping nuts

(11)

that are properly secured
and not damaged can be re-
moved by hand. To do this,
fold up the bar and turn the
quick-clamping nut firmly
anticlockwise. If the quick-
clamping nut is stuck, do
not attempt to loosen it with
a tool – always use a two-
pin spanner.

After fitting the mounting
flange and the grinding/cut-
ting disc, the free thread
length of the grinding
spindle must be

at least

4 mm

.

Ensure that the abrasive
tool is firmly seated, so that

it does not twist away from the spindle in the runout of the
power tool.

A plastic part (O-ring) is fitted around the cent-
ring collar in the mounting flange

(9)

.

If the O-

ring is missing or damaged,

 the mounting

flange

(9)

 must be replaced before operation

can resume.

u

After fitting the abrasive tool, check that the abrasive
tool is fitted correctly and can turn freely before
switching on the power tool. Make sure that the abras-
ive tool does not brush against the protective guard or
other parts.

Grinding/Cutting Disc with Diameter 100 mm
The quick clamping nut with bar

(11)

is not recommen-

ded to be used with 100 mm cutting/grinding disc.

Pay attention to the dimensions of the abrasive tools. The
diameter of the hole must match that of the hub flange. Do
not use an adapter or reducer.
When using diamond cutting discs, ensure that the arrow in-
dicating the direction of rotation on the diamond cutting disc
