20

 | English

u

After fitting the abrasive tool, check that the abrasive
tool is fitted correctly and can turn freely before
switching on the power tool. Make sure that the abras-
ive tool does not brush against the protective guard or
other parts.

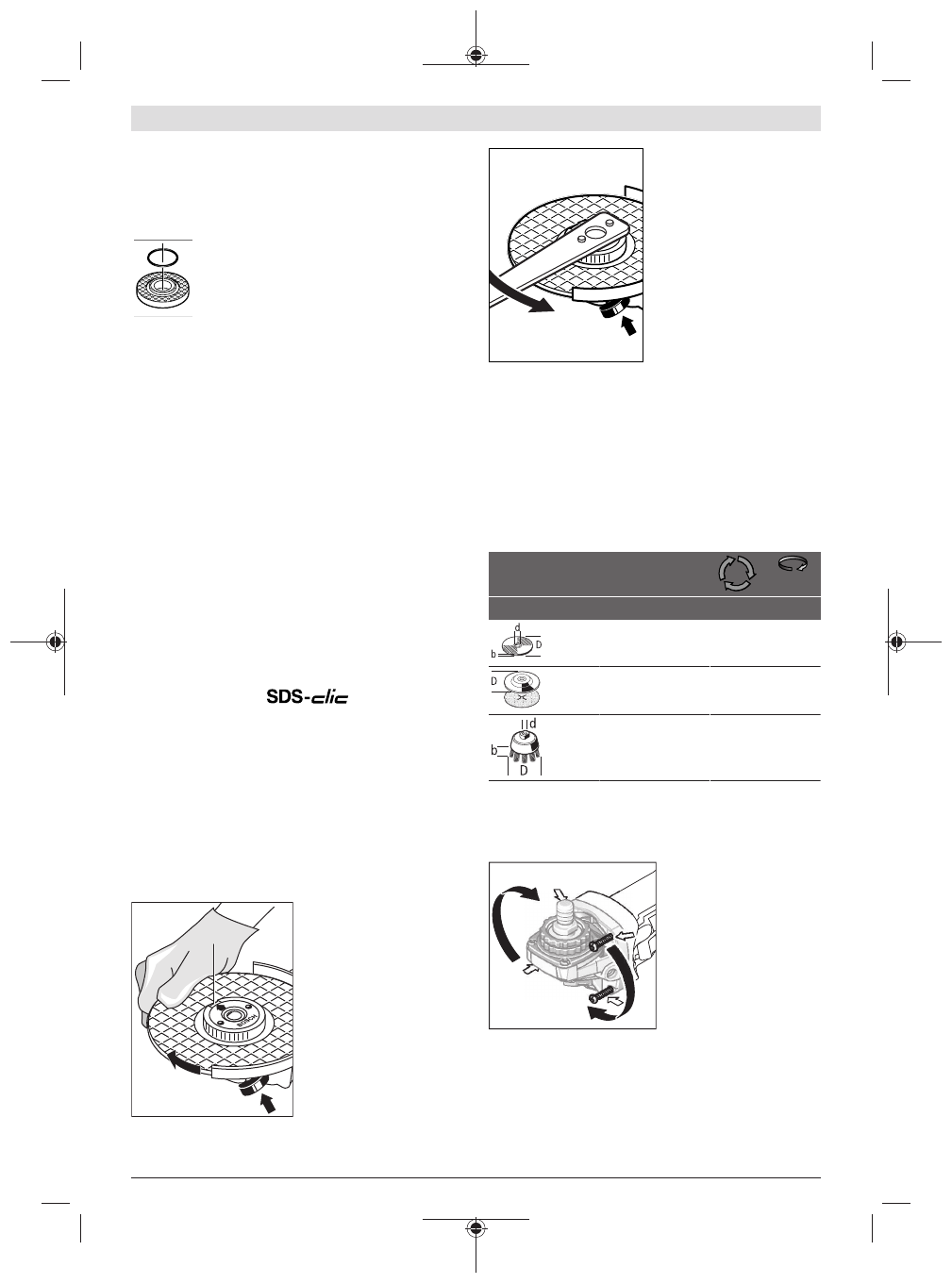

Mounting flange for grinding spindle M 14:

A plastic part (O-ring) is fitted around the cent-
ring collar in the mounting flange

(9)

.

If the O-

ring is missing or damaged,

 the mounting

flange

(9)

 must be replaced before operation

can resume.

Flap disc

u

Always fit the hand guard (16)

when working with the

flap disc.

Rubber sanding pad

u

Always fit the hand guard

(16)

when working with the

rubber sanding pad (17)

.

See the graphics page for fitting instructions.
Screw on the round nut

(19)

 and tighten with the combina-

tion wrench

(5)

.

Cup brush/disc brush

u

Always fit the hand guard

(16)

when working with the

cup brush or disc brush.

See the graphics page for fitting instructions.
The cup brush/disc brush must be screwed onto the grinding
spindle until it rests firmly against the grinding spindle flange
at the end of the grinding spindle thread. Tighten the cup
brush/disc brush with an open-ended spanner.

Quick-clamping nut

To change the abrasive tool easily without having to use any
additional tools, you can use the quick-clamping nut

(12)

 in-

stead of the clamping nut

(11)

.

u

The quick-clamping nut

(12)

may be used only for

grinding or cutting discs.

Only use quick-clamping nuts (12)

that are in good work-

ing order and not damaged.
When screwing on, make sure that the printed side of the
quick-clamping nut

(12)

is not facing the grinding disc;

the arrow must be pointing towards the index mark (22).

(22)

Press the spindle lock but-
ton

(1)

 to lock the grinding

spindle. To tighten the
quick-clamping nut, turn
the grinding disc firmly
clockwise.

If the quick-clamping nut
has been attached correctly
and is not damaged, you
can loosen it by hand by
turning the knurled ring an-
ticlockwise.

Never loosen a

tight quick-clamping nut
with pliers. Always use
the combination wrench.

Insert the combination
wrench as shown in the fig-
ure.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operat-
ing instructions.
The permissible speed [min

-1

] or the circumferential speed

[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible

rota-

tional/circumferential speed

 on the label of the abrasive

tool.

max. [mm]

[mm]

D

b

d

[min

-1

]

[m/s]

115

125

7

7

22,2

22,2

11000

11000

80

80

115

125

-

-

-

-

11000

11000

80

80

75

30

M 14

11000

45

Rotating the machine head

u

Pull the plug out of the socket before carrying out any
work on the power tool.

The machine head can be
rotated in 90° increments.
In this way, the on/off
switch can be brought into
a more favourable handling
position for particular ap-
plications, e.g. for left-
handed tool users.
Completely unscrew the
four screws. Rotate the ma-
chine head carefully,

without removing it from the housing

, into the new posi-

tion. Screw in and retighten the four screws.

Dust/Chip Extraction

The dust from materials such as lead paint, some types of
wood, minerals and metal can be harmful to human health.
