90

D-Link DIR-860L User Manual

Section 3 - Configuration

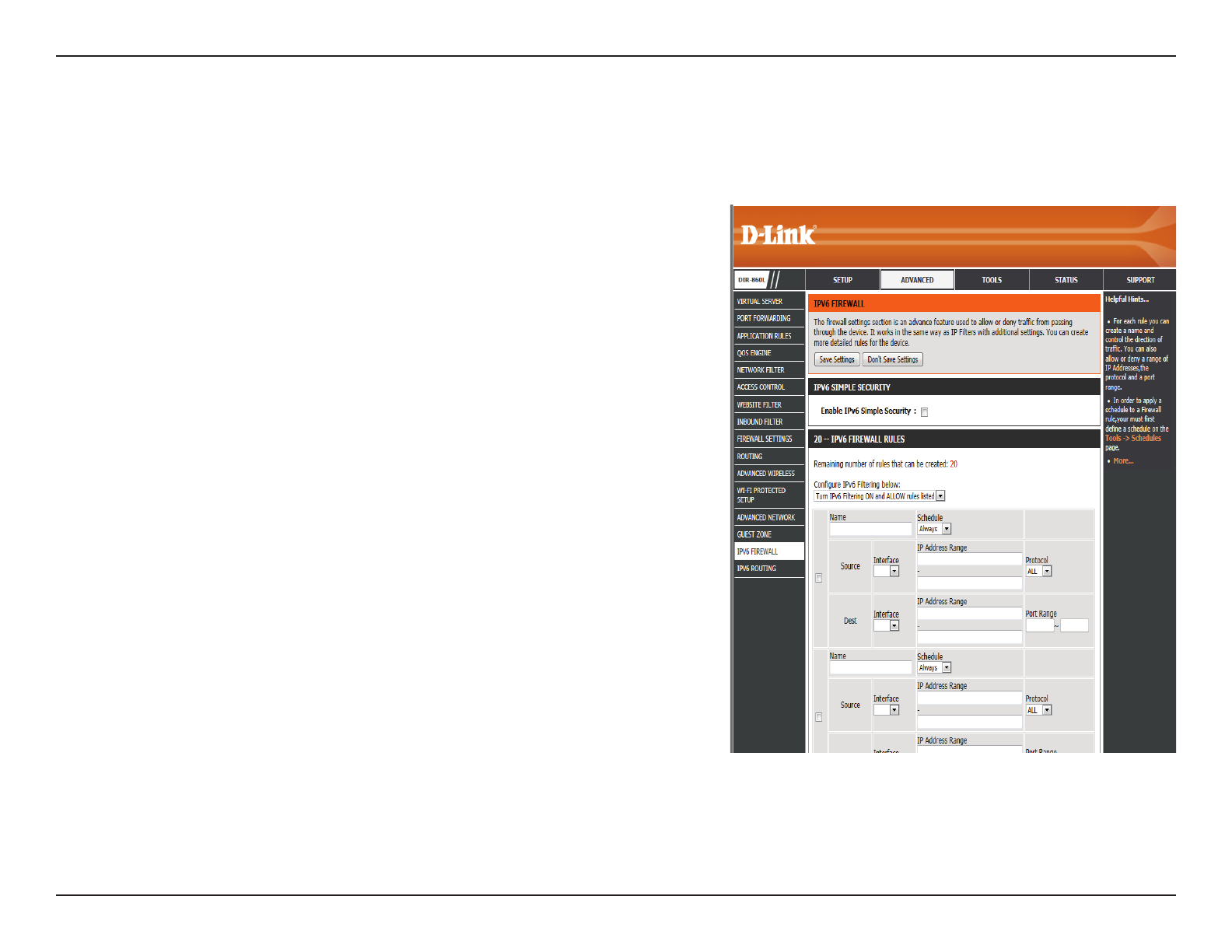

IPv6 Firewall

The DIR-860L’s IPv6 Firewall feature allows you to configure which kind of IPv6 traffic is allowed to pass through the device. The DIR-860L’s IPv6
Firewall functions in a similar way to the IP Filters feature.

Check the box to enable the IPv6 firewall simple security.

Select an action from the drop-down menu.

Enter a name to identify the IPv6 firewall rule.

Use  the  drop-down  menu  to  select  the  time  schedule  that  the  IPv6

Firewall Rule will be enabled on. The schedule may be set to

Always

,

which will allow the particular service to always be enabled. You can

create your own times in the

Tools

 >

Schedules

 section.

Use the

Source

 drop-down menu to specify the interface that connects

to the source IPv6 addresses of the firewall rule.

Enter the source IPv6 address range in the adjacent

IP Address Range

field.

Use  the

Destination

  drop-down  menu  to  specify  the  interface  that

connects to the destination IP addresses of the firewall rule.

Select the protocol of the firewall port (

All

,

TCP

,

UDP

, or

ICMP

).

Enter the first port of the range that will be used for the firewall rule

in the first box and enter the last port in the field in the second box.

Click

Save.Settings

 to save the current configuration.

Enable IPv6 Simple

Security:

Configure IPv6

Firewall:

Name:

Schedule:

Source:

IP Address Range:

Destination:

Protocol:

Port Range:
