4

Operation and Storage Manual

EN

 •

Slide down the wall brace in order to detach it from

the back of the body.

 •

Attach firmly the wall brace onto a wall through the

four screw holes.

 •

Lift the panel heater up to almost vertical position

and insert the two lower protruding parts of the

braces into the two lower openings of the back

cover of the panel heater. Then lift the panel heater

and insert the two upper protruding parts of the

wall braces into the two upper openings of the back

cover of the heater. Finally, put the two screws back

to their places and tighten them in order to install

the panel heater firmly to the wall.

BATHROOM OPERATION

 •

The panel heater must be installed in accordance

with the normal trade practices and in compliance

with the national legislation (EU electricity directives

and regulations concerning special installations and

places of operation including bathrooms, shower

cabins HD60364-7-701(IEC 60364-7-701:2006)).

 •

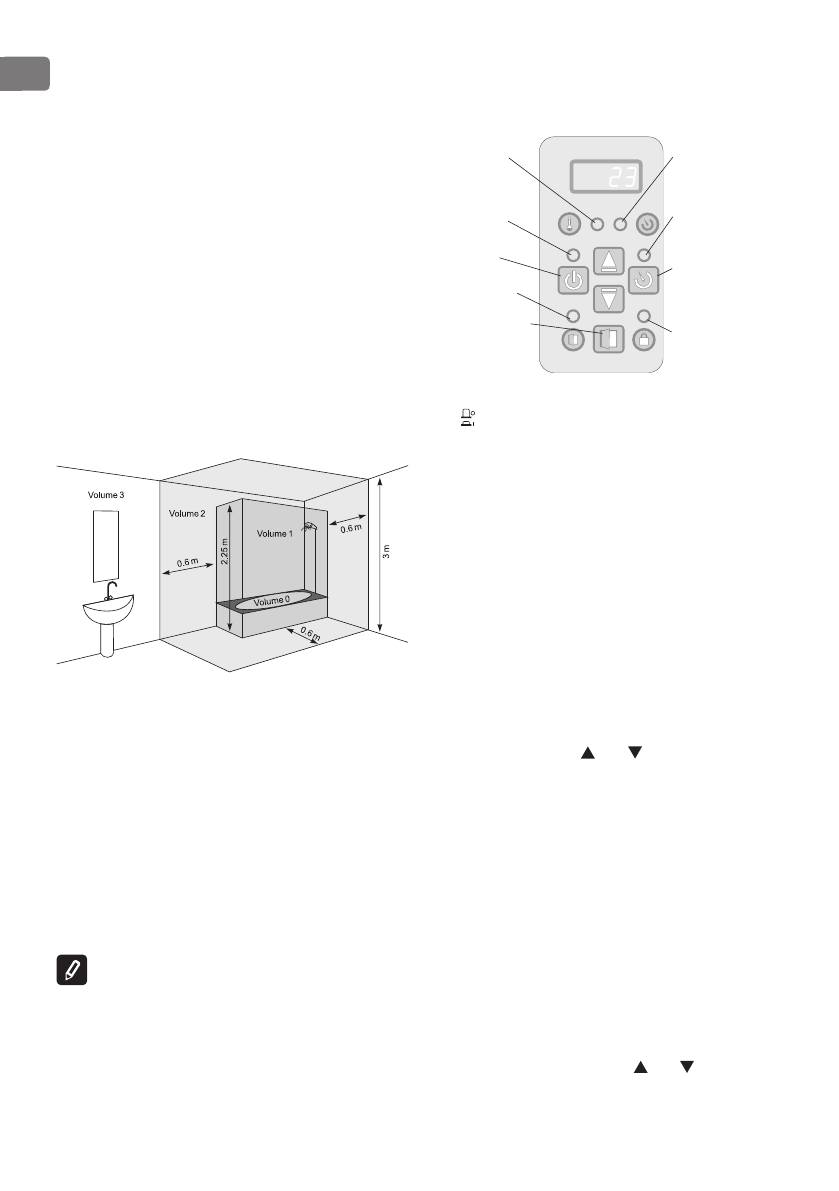

In case this panel heater is to be used in a bathroom

or other similar room, the following installation

requirements must be observed: the panel heater is

with IP24 protection (water drops protection). Hence

it can be installed in “Volume 2” (see the diagram

below) in order to avoid the risk of the control board

(power switch and thermo regulator) being reached

by a person who is in a shower or a bathtub. The

minimum distance between the appliance and a

water source should be not less than 1 meter and it is

compulsory the appliance to be wall-mounted! If you

do not feel sure about the installation of this panel

heater in a bathroom, we recommend you to consult

a professional electrician.

Note

: If the above-mentioned instructions cannot be

implemented, it is recommended to install the appliance

in “VOLUME 3”.

 •

In wet premises the power source must be installed

at a height of at least 25 cm above the floor

(bathrooms and kitchens).

 •

The installation must be equipped with a safety

fuse, and the distance between the fuse contacts in

disconnected condition should be at least 3 mm.

OPERATION INSTRUCTIONS

ELECTRONIC CONTROL

Operation Modes

Temperature LED

Time LED

“Heating” mode LED /

Operating heater

“Delayed start” mode LED

/ “Program”  mode

ON/OFF Button

“Timer” button

for switching on

“Delayed start” or

“Program” mode

“Open window” LED

“Protection from

children” LED

“Open window” button

Turn on the convector, press the switch in position “I”

(On)  .

Time setting

The time setting is possible only in Off mode – the

current day of the week, hour and minutes can be set.
To enter the time settings you need to keep

simultaneously pressed the “

ON/OFF

”  and “

Timer

”

buttons. The parameter which is being set blinks on the

display. To select a parameter to set, you need to press

briefly  the “

Timer

” button. To exit the settings, you need

to press briefly for a third time the “

Timer

” button (after

you have set the minutes).
You begin the settings with selecting a day of the week

from 1 to 7 depending on which in order the current

day of the week is, and the setting is done by entering

the respective number. The hour and the minutes are

displayed simultaneously and the parameter which is

being set is blinking. You can change the value of the
parameter by using the   and   buttons.

If no button is presses for 10 seconds, you will exit the

settings.

Switching on “Heating” mode

When the panel convector is switched off, the digital
display shows the room temperature and only the
Temperature LED is lit. If you press the “

On/Off

” button

once, you will enable “

Heating

” mode. A red LED is lit

indicating this mode. The digital display shows the set
temperature for about 2 seconds, and during this time
the Temperature LED is not lit. If the room temperature
is lower than the set temperature, the heater will be
automatically switched on.

When the heater is on the red LED is permanently lit!

Temperature setting

By pressing either of the buttons   and   you will enter
the “

Change the set temperature

” mode. The display

starts flashing and it shows the temperature which has
been set so far. By pressing the buttons you can change
